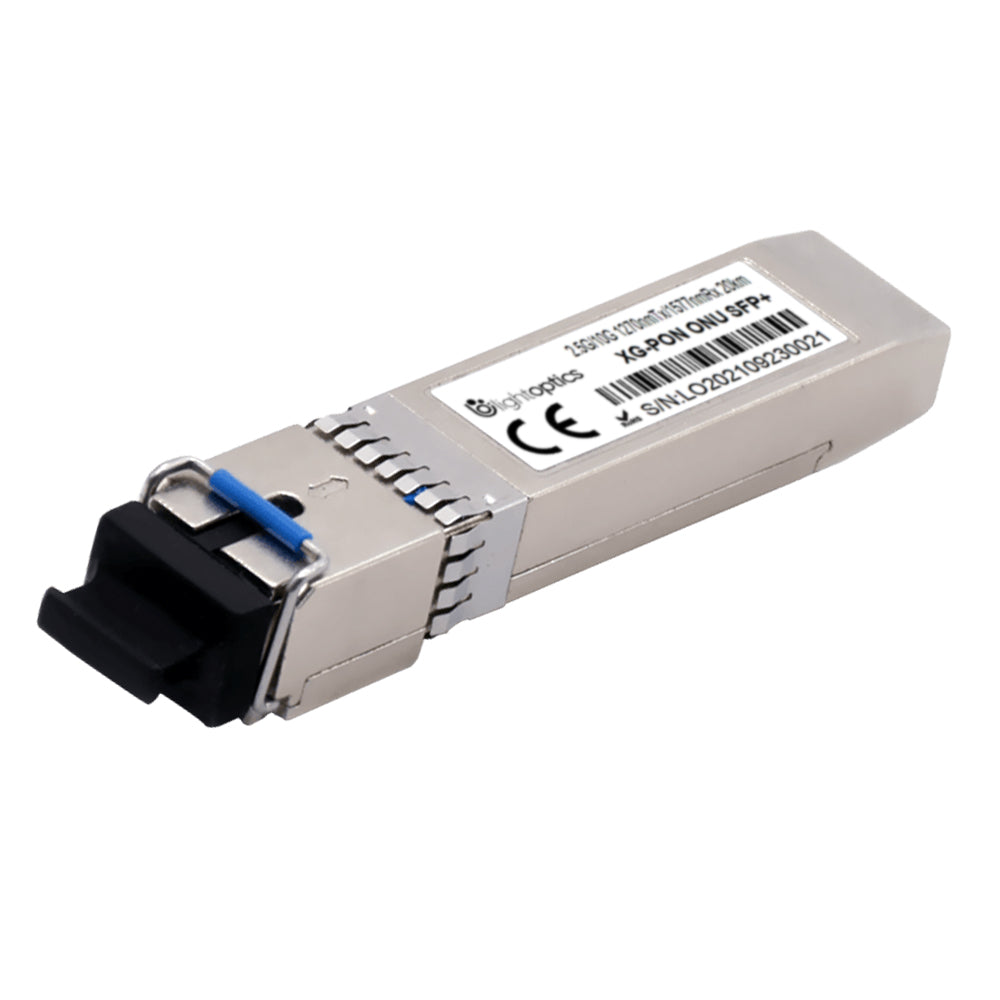

XG-PON ONU SFP Transceiver SC 20km 1270nmTX/1577nmRX

$39.00 $31.50
$31.50
Tags:



SMA Standard 2.488G-TX/9.953G-RX XG-PON ONU SFP Transceiver Module (SMF, 1270nm-TX/1577nm-RX, 20km, SC, Industrial Temp, DOM)

Generic Compatible XGPON ONU SFP+ transceiver provides an asymmetric 2.488Gbps upstream and 9.953Gbps downstream, reaching a link up to 20km over SMF via SC connector. It is fully compliant with SFP+ MSA, SFF-8432, SFF-8472 and RoHS standards and is ideal for asymmetric 10-Gigabit capable passive optical network (XG-PON) system.

SPECIFICATIONS

Parameter Symbol Unit Min Typ Max
Optical transmitter Characteristics
Data Rate Mbps 2.48832
Center Wavelength Range lc nm 1260 1280
Spectral Width(@-20dB) Dl nm 1
Launch Optical Power Po dBm 2 7
Off level light dBm -45
Burst turn on/off time Ton/Toff bit 32
Extinction Ratio EX dB 8.2
Eye Diagram Compliant with ITU-T G.987.2
Transmitter dispersion penalty TDP dB 0.5
Data Rate Mbps 9953.28
Center Wavelength Range lc nm 1575 1580
Receiver Sensitivity S dBm -28
Overload Input Optical Power Pin dBm -8
LOS Optical Dessert dB -29
Optical Assert dB -44
LOS Hysteresis dB 0.5 6
