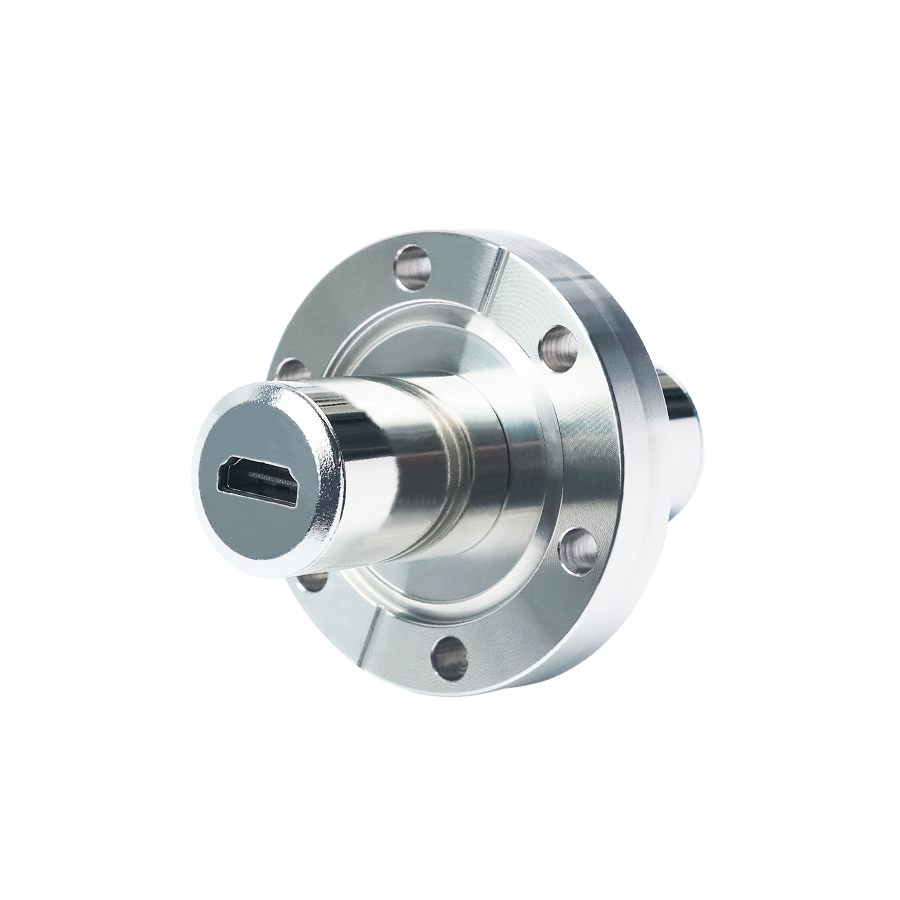

HDMI Vacuum Feedthrough CF35 DN35/DN40 ConFlat 2.75"
HDMI Vacuum Feedthrough CF35 DN35/DN40 ConFlat 2.75"
Feedthroughs (or vacuum feedthroughs) come in many forms to transfer electrical currents, signals, fluids, gases or mechanical movements from outside the vacuum (air side) to the inside (vacuum side) of a vacuum chamber to equipment within the chamber. The entry point for the feedthrough must be vacuum-sealed via a suitable through hole. The feedthrough can be connected to a CF vacuum flange.
Common Types of Feedthroughs
CF Conflat flanges are normally for processes requiring ultra high vacuum pressures, down to 10-12 Torr , and are vacuum sealed via nuts and bolts with copper gaskets. They come in sizes from 1.33 in. (mini conflat), 2.75, 4.5, 6, 8, 10, 12, 13.25, 14 and 16.5. inch O.D. Outer Diameter. They come in CF16, CF25, CF35, CF50, CF63, CF80, CF100 sizes.
KF or Quick Flange are for high vacuum pressures 10-9 Torr and are vacuum sealed via clamps and elastomer O-Rings. They come in KF10, KF16, KF25, KF40 and KF50 sizes.
ISO or Large Flange are for high vacuum pressures down to 10-6 Torr and are vacuum sealed via nuts and bolts (for flanges with bolt holes) or with claw clamps (for flanges with smooth faces and no bolt holes). They use Elastomer O-Rings for vacuum seals. They come in sizes from 63mm, 80, 100, 160, 200, 250, 320, 400, 500, and 630mm sizes. All flanges are made of corrosive resistant stainless steel.
