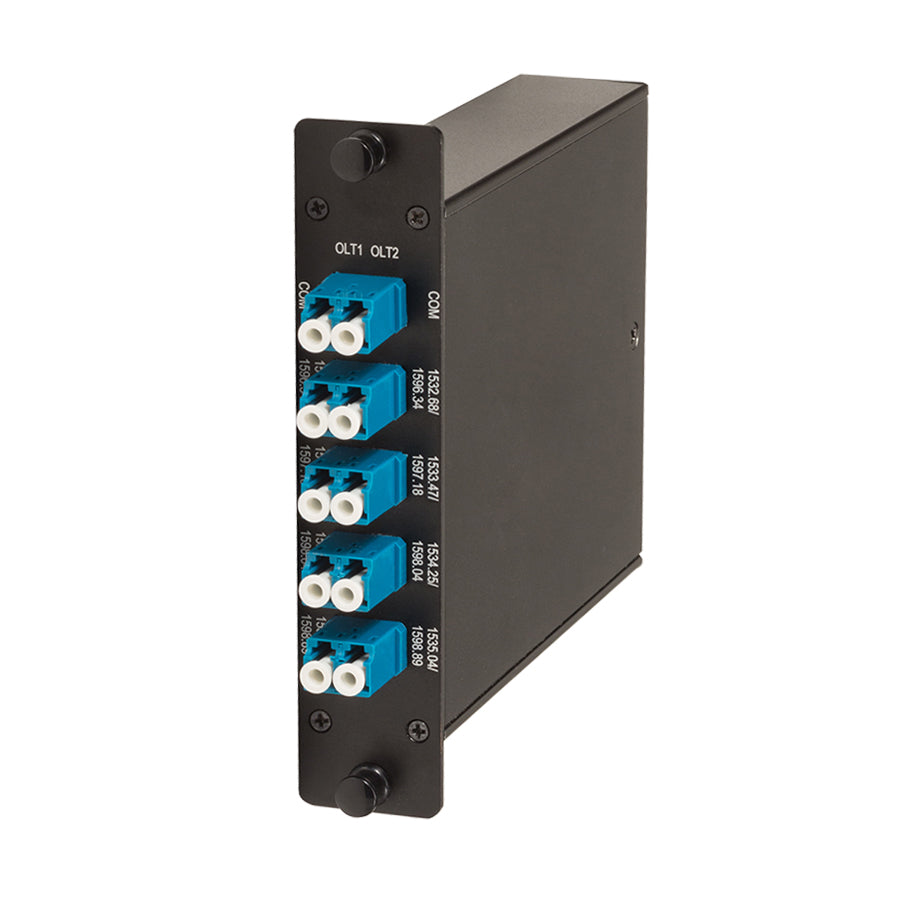

Dual Fiber 4 channel TWDM WM1 WDM LGX Module for NG-PON2 OLT


Dual 4 channel TWDM WM1 WDM LGX Module for NG-PON2 OLT, LC/UPC

WM1 module is a passive optics used to support Next Generation PON (NG-PON2) with up to 40 Gigabit capacity via 4 wavelengths (4x10G per port). It combines and separates the 4 downstream (L-Band) and upstream (C-Band) wavelengths over a single fiber.

Channel 1 Central wavelength 1532.68 /1596.34nm
Channel 2 Central wavelength 1533.47 /1597.18nm
Channel 3 Central wavelength 1534.25 /1598.04nm
Channel 4 Central wavelength 1535.04 /1598.89nm

NG-PON2 (also known as TWDM-PON), is a telecommunications network standard for a passive optical network (PON). Its capable of total network throughput of 40 Gbit/s, corresponding to up to 10 Gbit/s symmetric upstream/downstream speeds available at each subscriber.

NG-PON2 TWDM Multiplexer


Product Specifications

Parameter Unit Value
Center Wavelenth Port 1 1532.68 / 1596.34
Port 2 1533.47 / 1597.18
Port 3 1534.25 / 1598.04
Port 4 1535.04 / 1598.89
Passband nm ±0.12
Insertion Loss dB ≤2.0
Ripple dB ≤0.4
Isolation dB Adjacent Channel ≥30
dB Non-Adjacent Channel ≥36
dB Upgrade Channel ≥11
Directivity dB ≥55
Return Loss dB ≥50
Polarization dependent loss dB ≤0.3
Polarization Mode dispersion ps ≤0.2
Operating Temperature -5~+75
Storage Temperature -40~+85
