SN to LC/UPC Uniboot Duplex OS2 Single Mode LSZH 1.6mm Fiber Patch Cord, for 200/400G Network Connection

$12.29
Cable Length :
$12.29

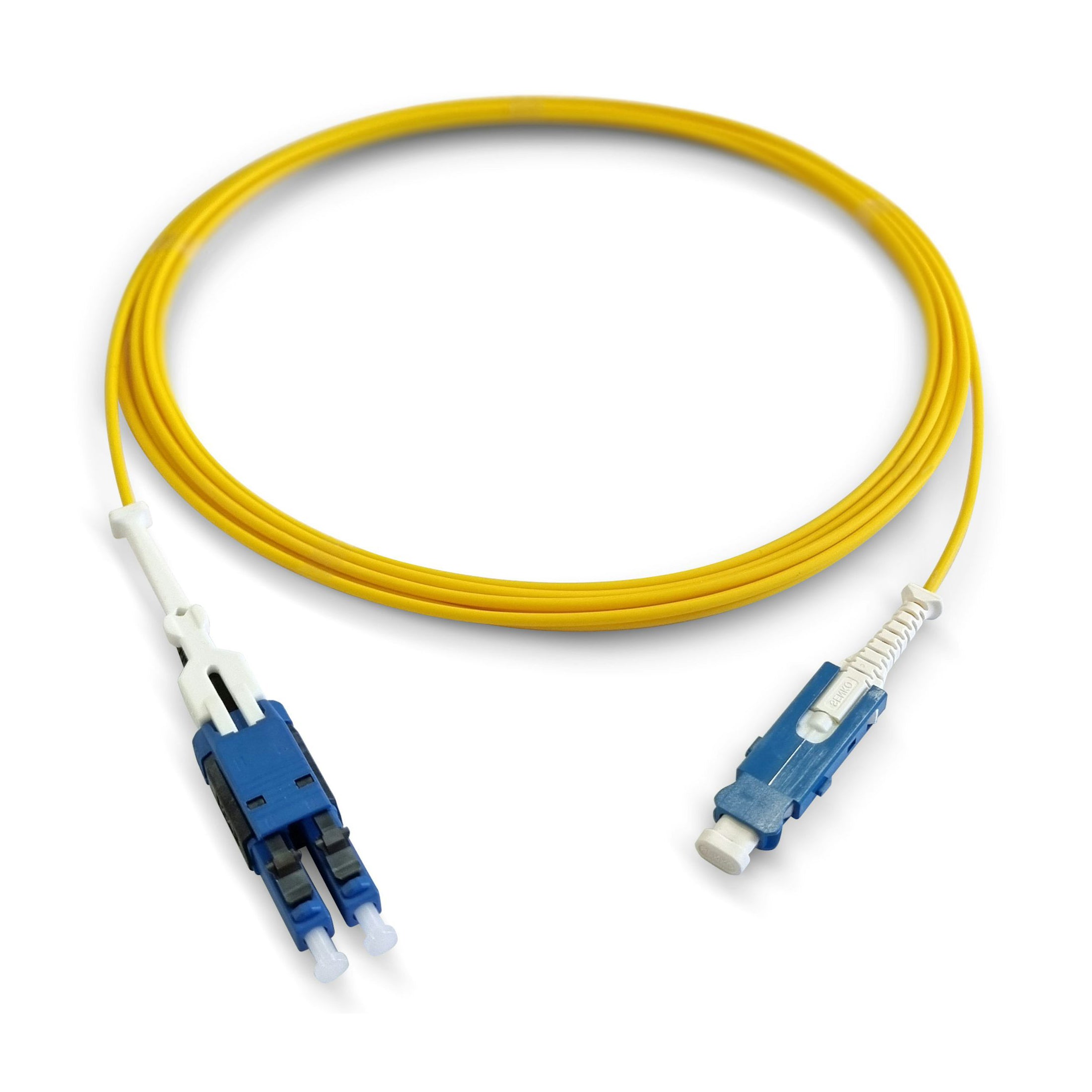

SN to LC/UPC Uniboot Duplex OS2 Single Mode LSZH 1.6mm Fiber Patch Cord

SN connector, utilizing standard LC Ferrule technology, is a new type of very small form factor (VSFF) that designed for hyperscale, edge, enterprise, and colocation data center interconnect (DCI) applications. The SN duplex connector allows you to triple the density compare to the conventional LC connector.

The SN connector is designed to provide an alternative to MPO connectivity and uses individual and independent duplex fiber breakout at 400G QSFP-DD or OSFP. QSFP-DD with SN connector just made 400G Breakout applications much easier.

400G QSFP-DD with SN connector types:
QSFP-DD 4x100G QSFP-DD 4xDR1 500m
QSFP-DD 4x100G QSFP-DD 4xFR1 2km
QSFP-DD 4x100G  4xLR1 10km

Typical Applications:
400G QSFP-DD break out into 2x single 100G lambda QSFP28 and 2x single 100G lambda SFP56-DD.

Product Specifications

Connector Type SN to LC Duplex Uniboot Fiber Type Singlemode G.657A1 (Compatible with G.652.D)
400G Ethernet Distance 10km with QSFP-DD 400G-LR1 Cable Diameter 1.6mm
Insertion Loss SN≤0.2dB, LC≤0.2dB Minimum Bend Radius 10mm
Return Loss ≥ 50dB Attenuation at 1310 nm ≤ 0.4dB/km
Polarity A (Tx) to B (Rx) Attenuation at 1550 nm ≤ 0.22dB/km
Cable Jacket PVC Operating Temperature -10~70°C
Fire Rating LSZH
Storage Temperature -20 to 70°C
