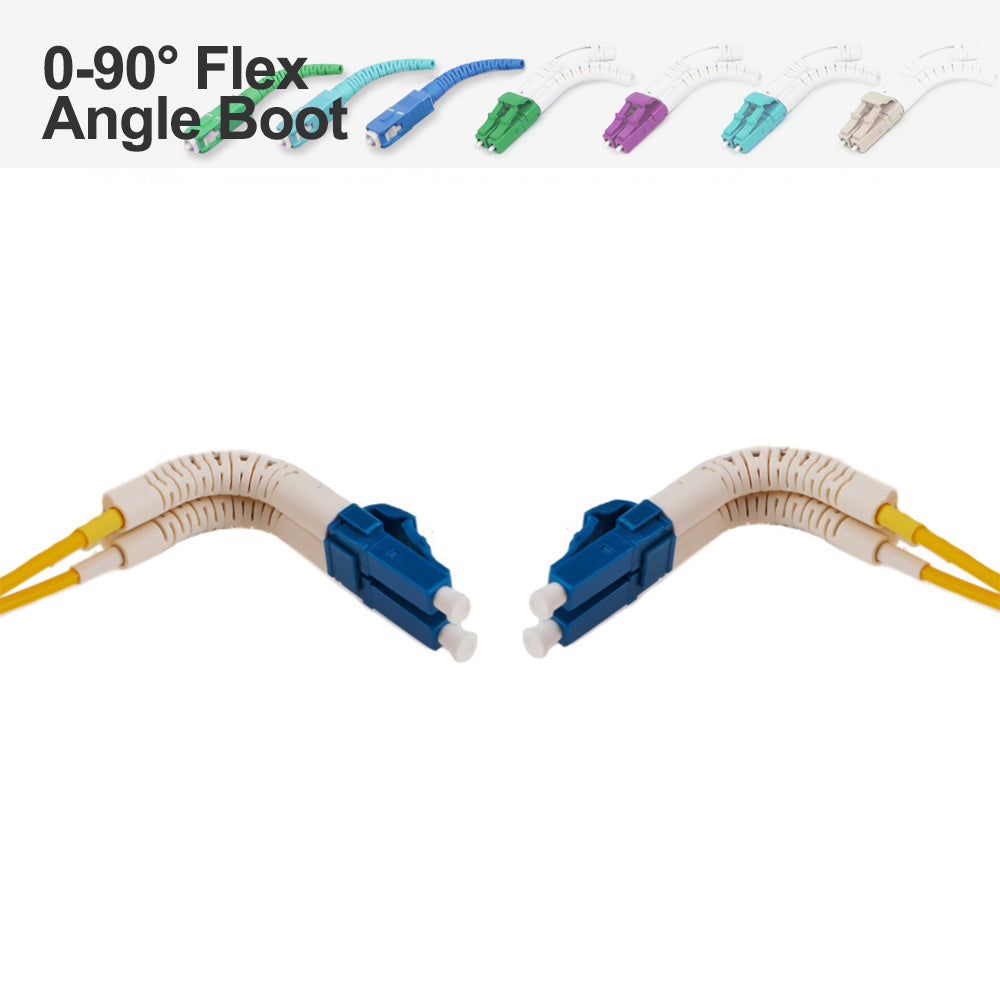

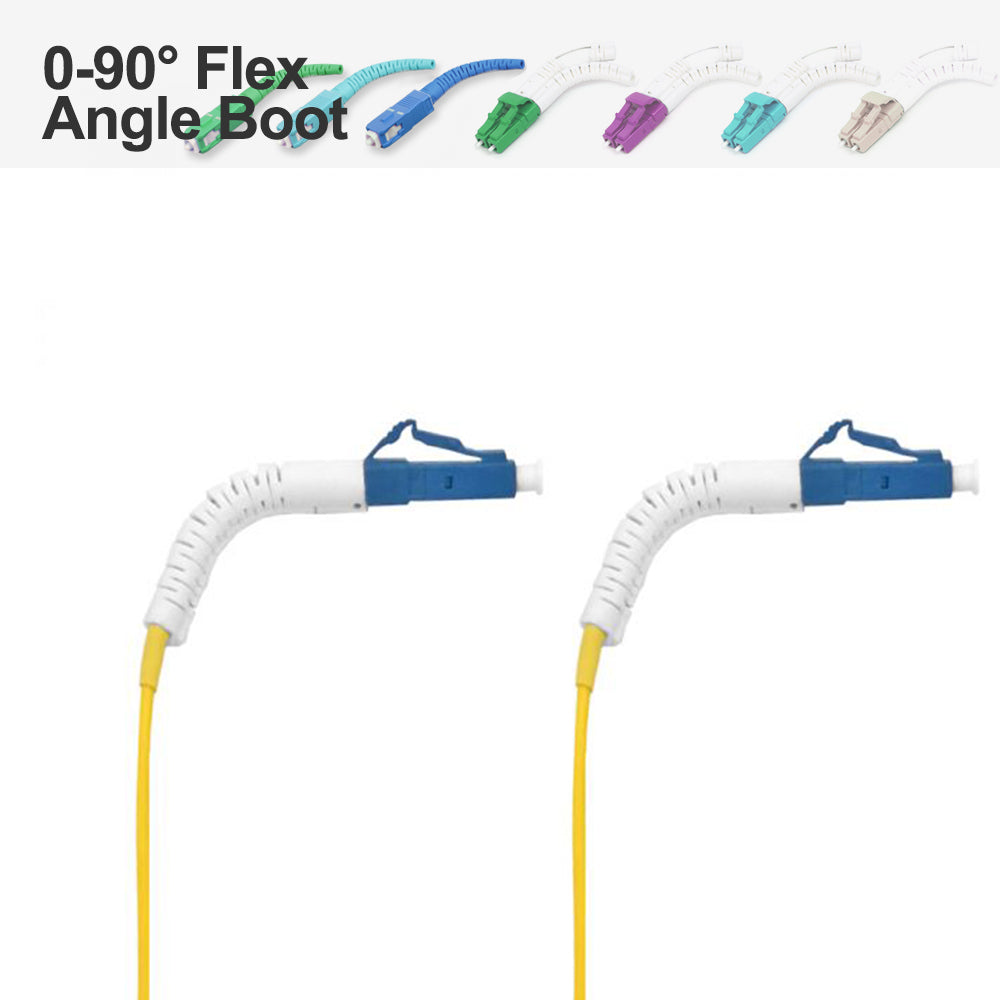

Flex Angle Boot LC to LC Singlemode 9/125um Fiber Patch Cable
LC/UPC to LC/UPC Singlemode 9/125um Fiber Patch Cable with Flex Angle Boot
The Flex Angle boot is designed to bend any angle or direction from straight to 90 degree.
They are designed so the installer can pre-bend the boot into any direction or angle. This position is maintained for optimal network performance but, can be reshaped at any time or straightened for connector disconnect. This enables perfect installation of the connector in unique applications such as, tight constraint areas or high density environments. These fiber optic patch cords with LC & SC flex boots are ideal for cable management situations where additional fiber bend protection is desired.
Our flex angle boots for LC, SC, MPO/MTP fiber optic connectors are available on any single-mode or multimode patch cord. Contact us for more types.
SPECIFICATION
Connector Type | LC UPC to LC UPC | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Min. Bend Radius (Fiber Core) | 10mm | Min. Bend Radius (Fiber Cable) | 10D/5D (Dynamic/Static) |
Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
Fiber Count | Duplex/Simplex | Cable Diameter | 2.0mm |
Cable Jacket | OFNR | Polarity | A(Tx) to B(Rx) |
Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
