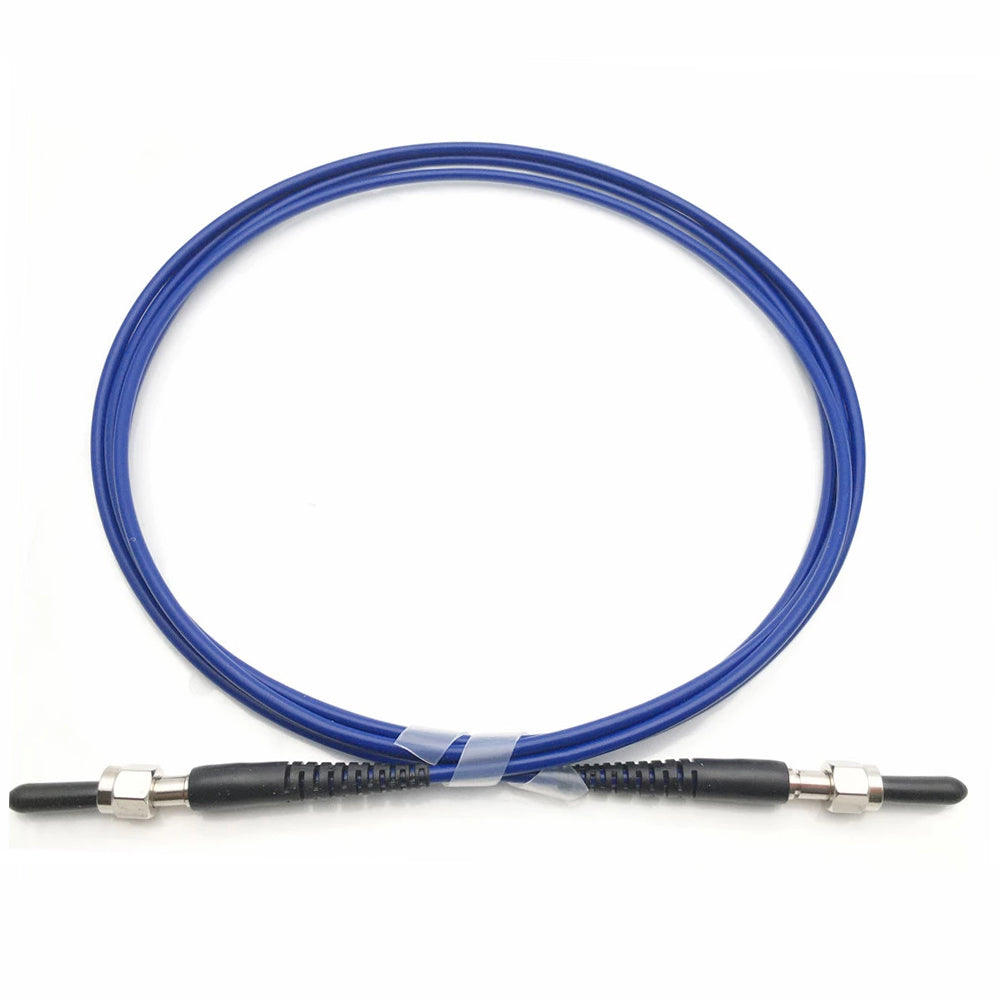

SMA905 to SMA905 Simplex OM2 50/125um Armored Fiber Patch Cable

Cable Length :

Item Product Descriptions: SMA905-SMA905 Multimode OM2 (50/125um) Fiber Patch Cable, Simplex, Ceramic Ferrule, 3.0mm Armored Fiber Cable

What is SMA-905

The SMA905 Connector, also know as FSMA Connector, was one of the first fiber optic interconnect system that gained industry wide acceptance. Today the connector is still widely used for military, industrial, and medical applications.
Our SMA-905 Connectors have a threaded coupling nut and feature a stainless steel or a high quality zirconia ferrule with ID sizes up to 1500 microns to accomodate a wide range of optical fibers.

Why use Armored optical cable

Typical Indoor Plenum Rated Micro Armored Jacket Applications:

The Micro Armor fiber optical cable is a revolutionary designed fiber optic cable that provides a perfect solution for your fiber optic installs and usage. Instead of a traditional interlocking armor, it utilizes a stainless steel coil technology. This allows for the cable to remain extremely flexible while also being crush and rodent resistant. It features the smallest outer diameter compared to conventional armored fiber optic cable in size and flexibility. Its light weight and great flexibility makes pulling and installation faster and easier.


Specification Single Mode Multi Mode
Parameter PC UPC APC UPC
Operating Wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss ≤0.3dB ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥40dB ≥50dB ≥60dB ≥30dB
Fiber Type G652D (standard) and G655, G657A1, G657A2, G657B3 on request OM1/OM2/OM3/OM4/OM5
Exchange ≤0.2dB
Repeartability ≤0.2dB
Durability > 1000 times
Connectors Type SMA905 to SMA905
Cable Type Simplex
Sheath Material PVC(OFNR)
Cable Diameter φ3.0mm
Length (M) Customized
Operating Temperature -40~+60
Storage Temperature -45~+85
Compliant Standards CE,RoHS, REACH and IEC
