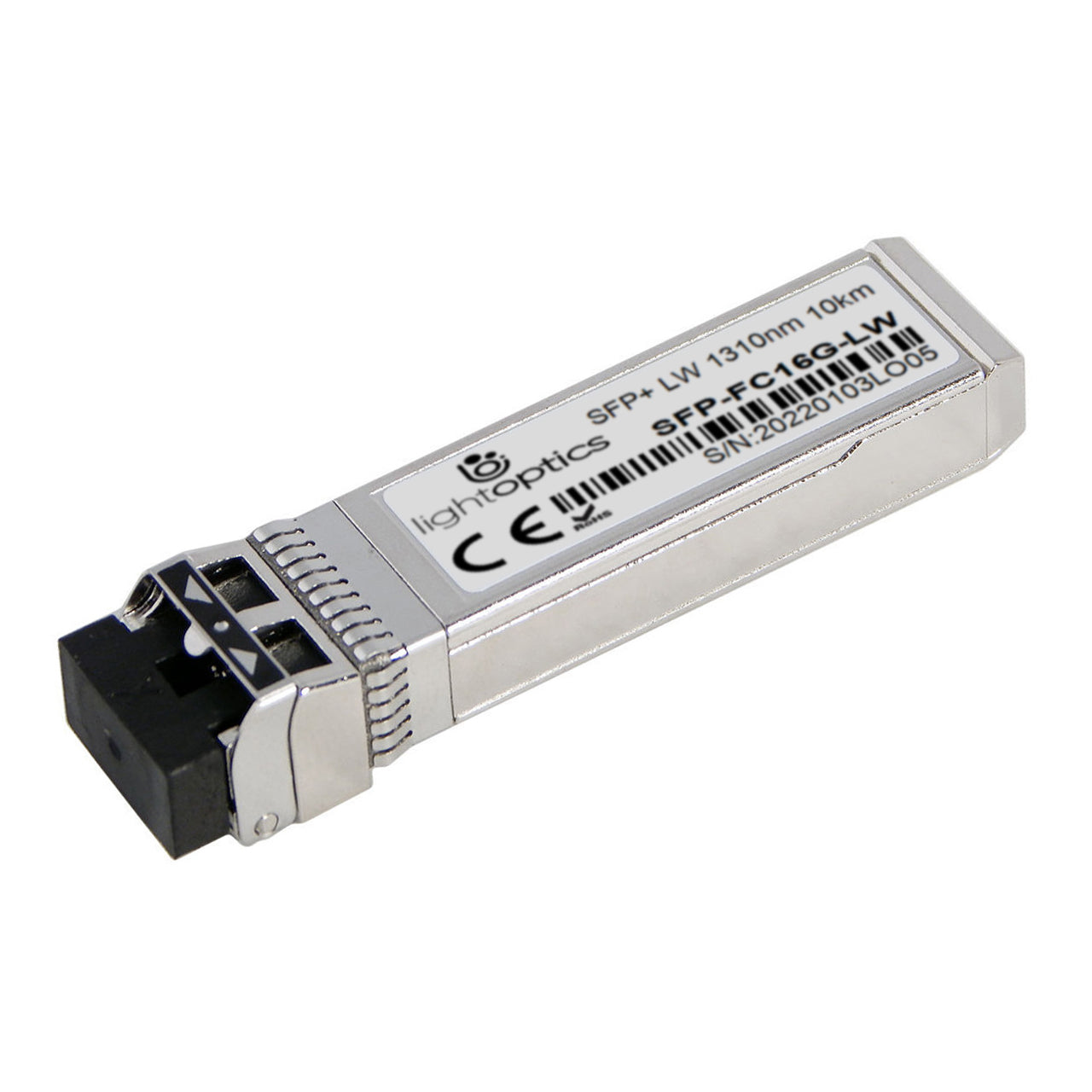

SFP-FC16G-LW 16GBase-LW SFP+ 1310nm 10km Transceiver Module
16G Fibre Channel SFP+ LW Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The 16GBase-LW Fibre Channel SFP+ transceiver provides an ideal replacement. It supports 16GBase-LW Fibre Channel throughput up to 10km over single-mode fiber (SMF). The 16G SFP+ features a highly reliable 1310nm DFB transmitter and PIN photo-detector into a duplex LC optical connector. It is a multi-rated optical transceiver that supports 14.025/8.5/4.25G Fibre Channel specifications. This transceiver has been programmed in the factory and tested to ensure works with SAN switches, routers, network interface cards (NICs), and other storage networking equipment.
Product Features
• Up to 14.025Gb/s bi-directional data links
• Optical interface compliant to IEEE 802.3ae
• Electrical interface compliant to SFF-8431
• Hot Pluggable SFP+ footprint
• 1310nm DFB laser and PIN photodiode, up to 10km for SMF transmission
• Built-in digital diagnostic functions
• Single +3.3V power supply
• Cost-effective SFP+ solution enables higher port densities and greater bandwidth
• RoHS compliant and Lead-free
Product Specification
| Part Number | SFP-FC16G-LW | Type | Fiber Chanel |
| Form Factor | SFP+ | Data Rate | 16Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 2 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -12 dBm | Receiver Overload | > 2 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C
Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | High-speed storage area networks
− Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters Tri-Rate 4G/8G/16G Fibre Channel |
Compliance | IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11 RoHS |
