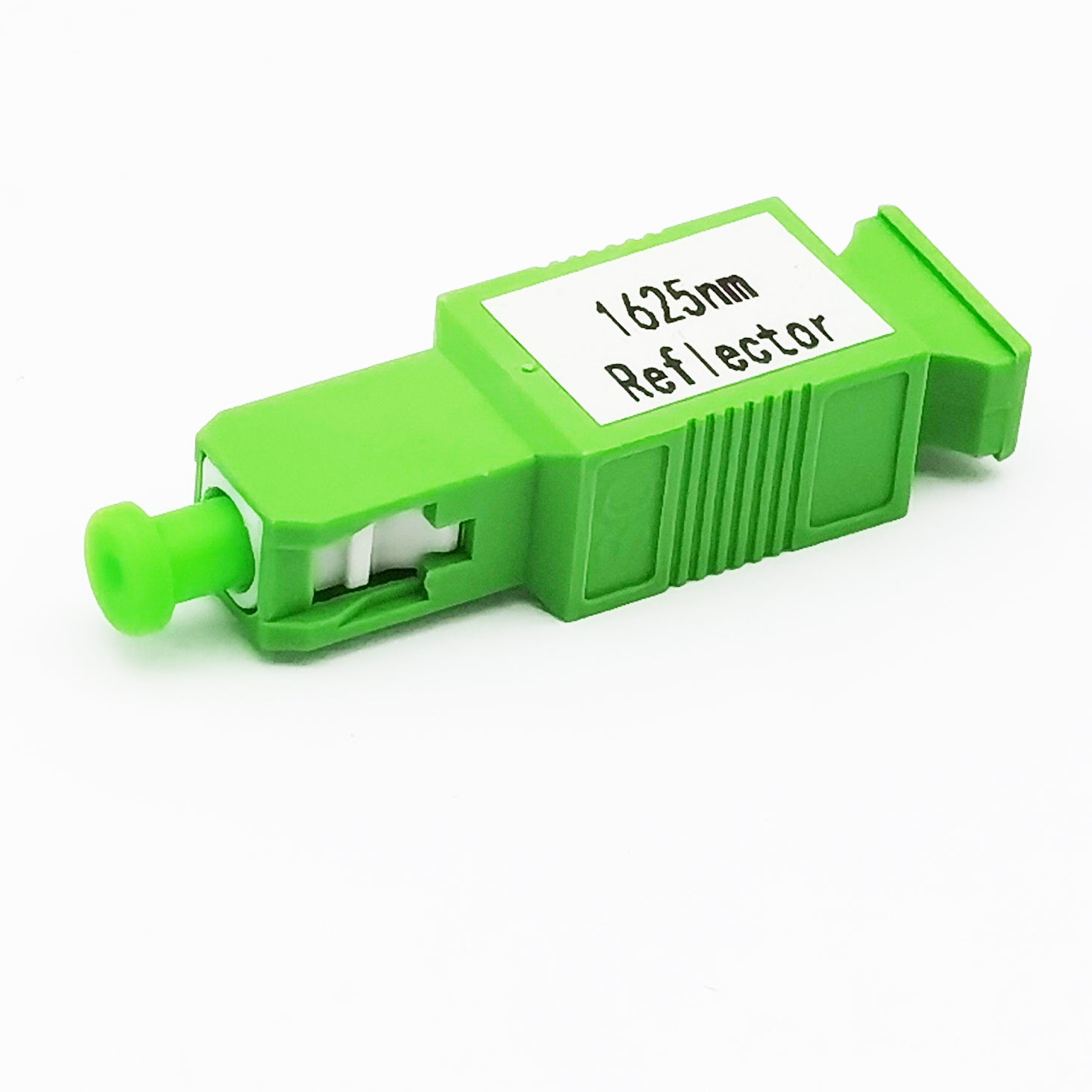

1625nm SC/APC Fiber Optic Reflector ideal Optical for PON OTDR Testing
SC Fiber Reflector Male-Female Type
Optical fiber reflector, also known as fiber Bragg grating filter, is usually installed at the front end of the optical network ONU. Combined with OTDR equipment, it can realize optical link point-to-point (PTP) or point-to-multipoint (PTMP) network monitoring, which can be fast, Accurately reflect network abnormalities. The SC fiber reflector provided by LightOptics has the advantages of low insertion loss, high reflectivity, and easy installation. It is an ideal optical device for network link monitoring.
Features:
- SC optical fiber (FBG) reflector adopts male and female structure, standard size, convenient and fast connection
- High-precision ceramic ferrules and sleeves are used to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance
- The optical fiber (FBG) reflector provided by LightOptics satisfies the working environment of -20~70℃, with an average of more than 500~1000 plug-in tests, stable performance and reliable quality
Applications:
- FTTX
- Central computer room testing
- PON network
- Data center
- OTDR Testing
| Parameters | Specification | Unit | Index | |||
| Minimum | Typical | Maximum | ||||
| Operating Wavelength | Pass band wavelength | 1260 to 1360 & 1460 to 1581 | nm | |||
| Reflect band wavelength | 1618.5 to 1631.5 | nm | ||||
| Transmission Waveband | Insertion Loss | 1.2 | dB | |||
| Return Loss | ≥18 | dB | @1260 to 1360 | |||
| ≥17 | dB | @1460 to 1581 | ||||
| Reflection Waveband | Insertion Loss | ≤1.0 | db | |||
| Return Loss | ≥17 | dB | ||||
| Connector type (I/O) | SC/APC or LC/APC or customized |
|||||
| Temperature Range |
-40 to +85 | ℃ |
|
|||
