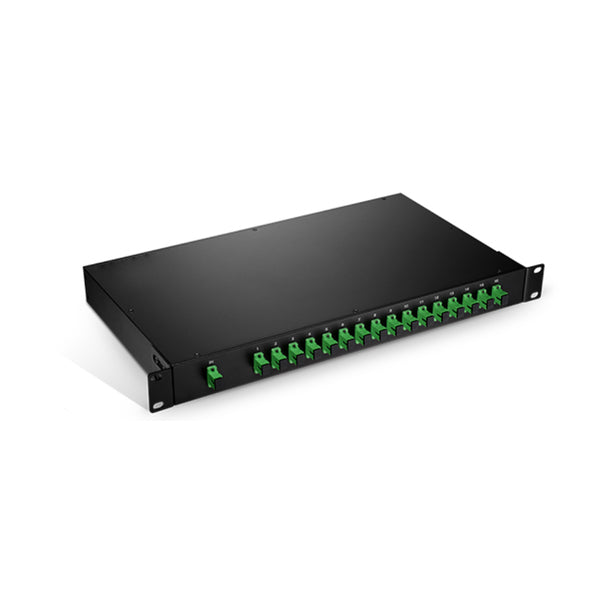

1x16 Rack Mount PLC Splitter FTTH optical splitter

$69.70
Connector :
$69.70
Tags:

Rack Mount PLC Splitter is designed for Central Office (CO) and Outside Plant (OSP) applications they provide superior optical performance, network reliability/stability and future support of next generation NG-PON2 technologies.
As an important role in FTTH Networks, SC APC splitter is fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.

The 1U 19'' Rack mount design makes PLC optical splitter easily mounted in network cabinet connecting the Central Office (CO) and terminal apparatus for uniform optical signal distribution in fiber to the point (FTTx) deployments and other passive optical networks (e.g., EPON, GPON, BPON).

FEATURES

  • Low Insertion loss and Low PDL
  • High Reliability and Stability
  • Good channel-to-channel uniformity
  • Silk screened port number for easy identification
  • Wide Operating Wavelength: From 1260nm to 1650nm
  • Wide Operating Temperature: From -40℃ to 85℃
  • Fits 19″ standard integrated distribution cabinet or network cabinet
  • Stability Telecordia GR-1221 and GR-1209

Fiber Optic Splitter Specifications

Type 1×2 1×4 1×8 1×16 1×32 1×64
Working Bandwidth (nm) 1260-1650
Insertion Loss (dB) Max w/o connectors 3.8 7.1 10.2 13.5 16.8 20.2
Insertion Loss (dB) Max with connectors 4.1 7.4 10.5 13.8 17.1 20.5
Wavelength Dependent Loss (dB) Max. 0.2 0.3 0.4 0.6 0.8 1
Return Loss (dB) Min.(APC) 55
Temperature Dependent Loss(dB) Max 0.5
Stability in Hot Environment (dB/°C) Max 1
Uniformity (dB) Max 0.6 0.6 0.8 1.1 1.5 2
Polarization Dependent Loss (dB) Max 0.2 0.2 0.2 0.3 0.3 0.3
Orientation (dB) Min 50
Power (mW) Max 300
Steel Tube Size(mm) 60*7*4 60*7*4 60*7*4 60*12*4 80*20*6 100*40*6
Optical Fiber SMF-28, G657A1, G657A2 or customized
Input / Output length 1meter standard or customized length
Cable Color White or customized
Cable Diameter 250um or 900um
Connector SC APC, SC UPC or without connector
Operating Temperature () -40 to 85
Storage Temperature () -40 to 85
Standard Telcordia GR-1209, Telcordia GR-1221, IEC 61300, IEC 6175321
