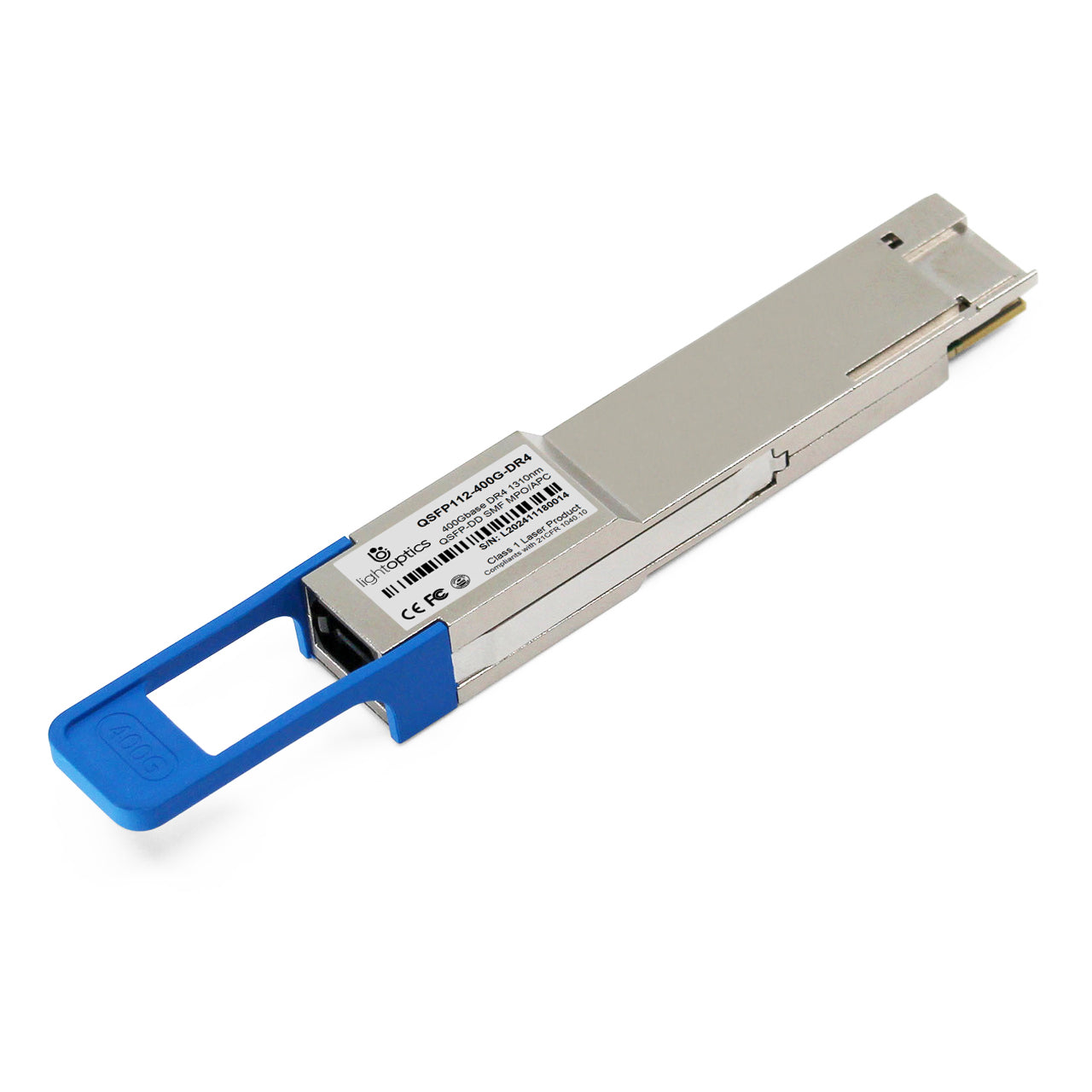

QSFP112 400GBASE-DR4 PAM4 1310nm 500m MPO-12/APC SMF Transceiver Breakout to 4x 100G-DR
400GBASE-DR4 QSFP112 Transceiver Module (SMF, 1310nm, 500m, MPO/MTP APC, DDM)
The 400GBASE-DR4 module, MTP/MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP112 MSA, CMIS 5.0 Interface and 400GAUI-4 standards.
The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 400G ethernet and data center interconnect applications.
Product Specifications
| Part Number | QSFP112-400G-DR4 | Vendor Name | LightOptics |
| Form Factor | QSFP112 | Max Data Rate | 425Gbps (4x 106.25Gbps) |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | CDR (Clock and Data Recovery) | TX and RX |
| Connector | MTP/MPO-12 APC | Power Budget | 3dB |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.9~4.0dBm | Minimum Receiver Power | -5.9dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10W |
| Protocols | IEEE 802.3cu, OIF-CEI-112G-VSR-PAM4, CMIS Rev 4.0, QSFP-112 MSA | Application | 400G Ethernet, Data Center Interconnect, Interconnects, Enterprise Networking |
