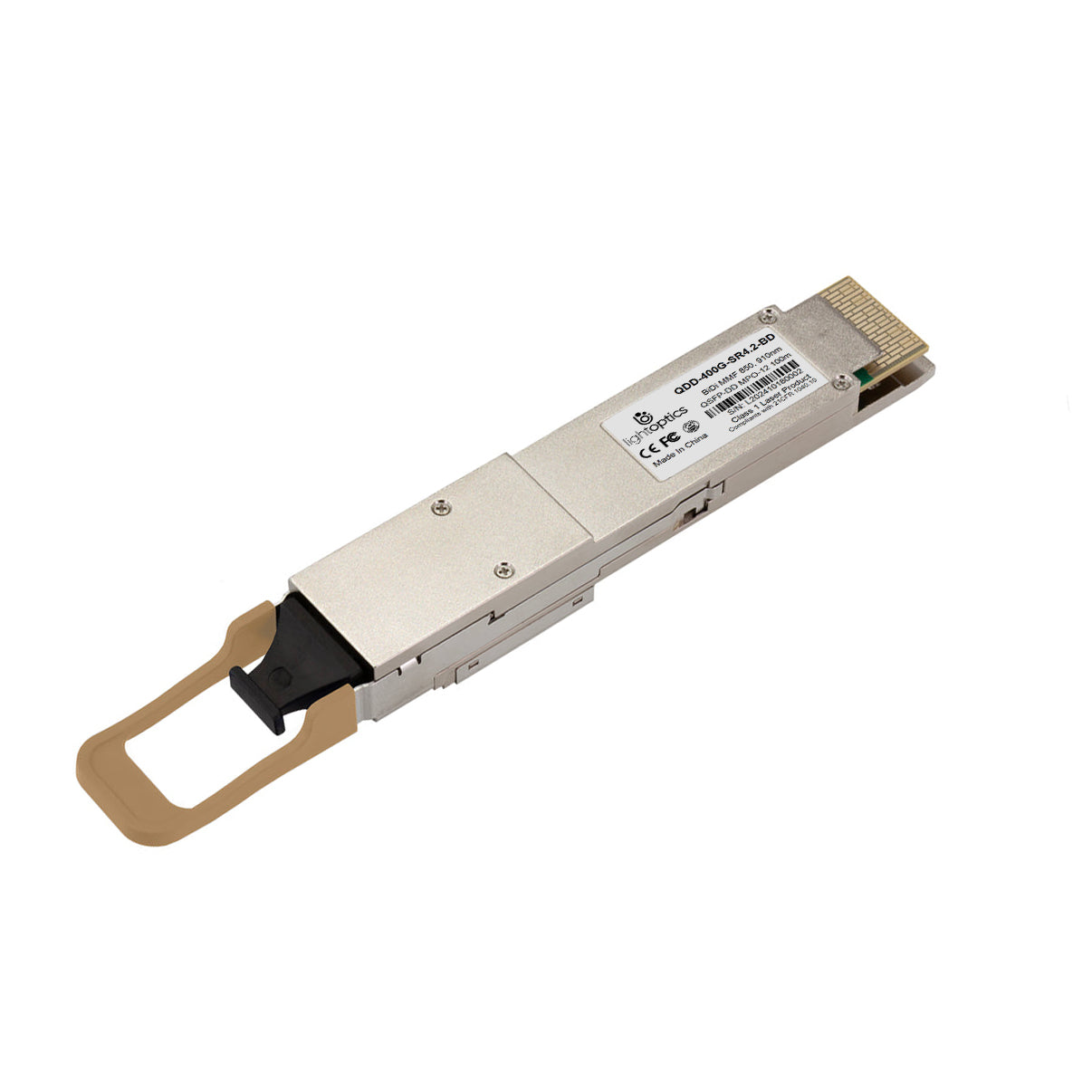

400GBASE-SR4.2 BiDi 400G QSFP-DD MMF 850nm 910nm 100m MPO-12 DDM Transceiver
400GBase-SR4.2 BiDi QSFP-DD Transceiver (MMF, 850nm, 910nm, 100m , MPO-12, CMIS 4.0, DDM, Commercial Temp.) 100% OEM Compatible
The QDD-400G-SR4.2-BD Compatible transceiver module is capable of supporting Ethernet links of up to 400 Gigabits and up to four 100 Gigabit Ethernet breakout link lengths over parallel MPO/MTP OM5 Multimode Fiber (MMF) at distances of up to 150 meters. It is compliant to IEEE 802.3 protocol and 400GAUI-8/PAM4 standard. To transmit the 400 Gigabit Ethernet signal, the module employs two bidirectional wavelengths per fiber across four parallel pairs of threads. Additionally, the module can function as a 4x100GE breakout to QSFP-100G-SR1.2 modules, and Forward Error Correction (FEC) is conducted on the host platform.
400GBASE-SR4.2 BiDi QSFP-DD Connectivity Diagrams
Product Specifications
| Cisco Compatible | QDD-400G-SR4.2-BD | Vendor Name | LightOptics |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 850nm/910nm | Max Distance | 100m on OM4/150m on OM5 |
| Modulation Format | 8x 53.125Gb/s PAM4 | Inbuilt FEC | NO |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Receiver Type | PIN | TX Power | -6.5~+4.0dBm |
| Receiver Sensitivity | < -6.6dBm | Packaging Technology | COB |
| Maximum Power | < 12W | Protocols | IEEE 802.3-2015, QSFP-DD MSA |
| Application | 400G Ethernet, Data Center Interconnect, Infiniband HDR, EDR | Operation Temperature | 0 to 70°C (32 to 158°F) |
