OTN6500 TDC Tunable Dispersion Compensation Card up to 120km 2100 ps/nm


OTN6500 TDC (tunable dispersion compensator) card is mainly used for dispersion compensation of high-speed transmission systems. It can accurately manage the residual dispersion after segmented fixed optical compensation and provide a flexible and accurate solution for dispersion compensation.

This Tunable Dispersion Compensation Card is independent, transparent, safe, and reliable for optical transmission signals, so as to ensure normal communication of the system. It is suitable for high-speed, long-distance WDM transmission systems.

OTN6500 TDC Tunable Dispersion Compensation Card Functional Structure

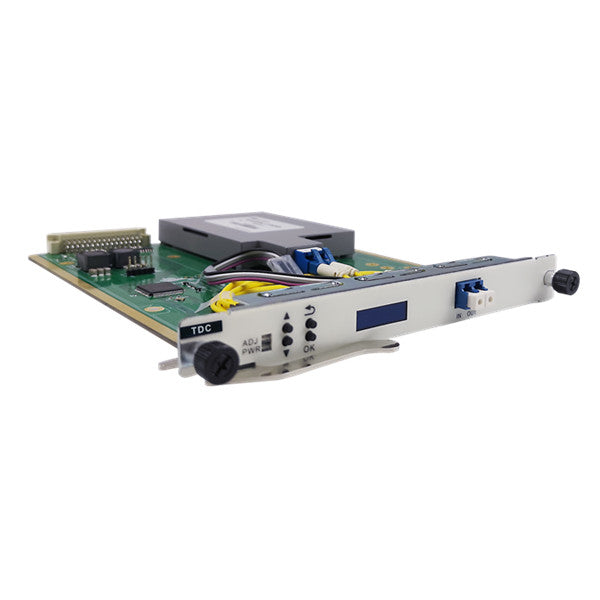

OTN6500 TDC Tunable Dispersion Compensation Card


  • Adjustable: TDC provides high precision, dynamically adjustable dispersion compensation over a wide range of dispersion value.
  • Low latency: TDC latency is less than 25ns, making it ideal for time-sensitive networks.
  • G.652 slope matching: TDC compensates for the dispersion slope of the fiber, providing accurate and uniform residual dispersion for each channel of the C-band.
  • Multi-channel: TDC has a complete C-band coverage and can be used on 50GHz or 100GHz DWDM networks.
  • The dispersion compensation range is large, and it can be selected from ±800ps/nm to ±1200ps/nm.
  • The optical path is transparent and does not change the optical signal.
  • Simple structure and convenient maintenance.


Parameter Technical
Working wavelength range C band: 1528nm~1568nm
Channel spacing 50-100GHz
Dispersion compensation range ±800ps/nm ±1200ps/nm
Absolute dispersion accuracy ±25ps/nm ±60s/nm
Introduction loss <4dB
PDL <0.3dB
PMD <1ps
Max input optical power +27dBm
Dispersion setting resolution ±10ps/nm
Button and display function Support local button operation dispersion compensation range setting, with the display, can visually display the current status
Network management function Support real-time monitoring of TDC optical power, remote setting of dispersion compensation range, etc.
Optical interface LC/UPC
Max power consumption 5W
MTBF >100000 hours
