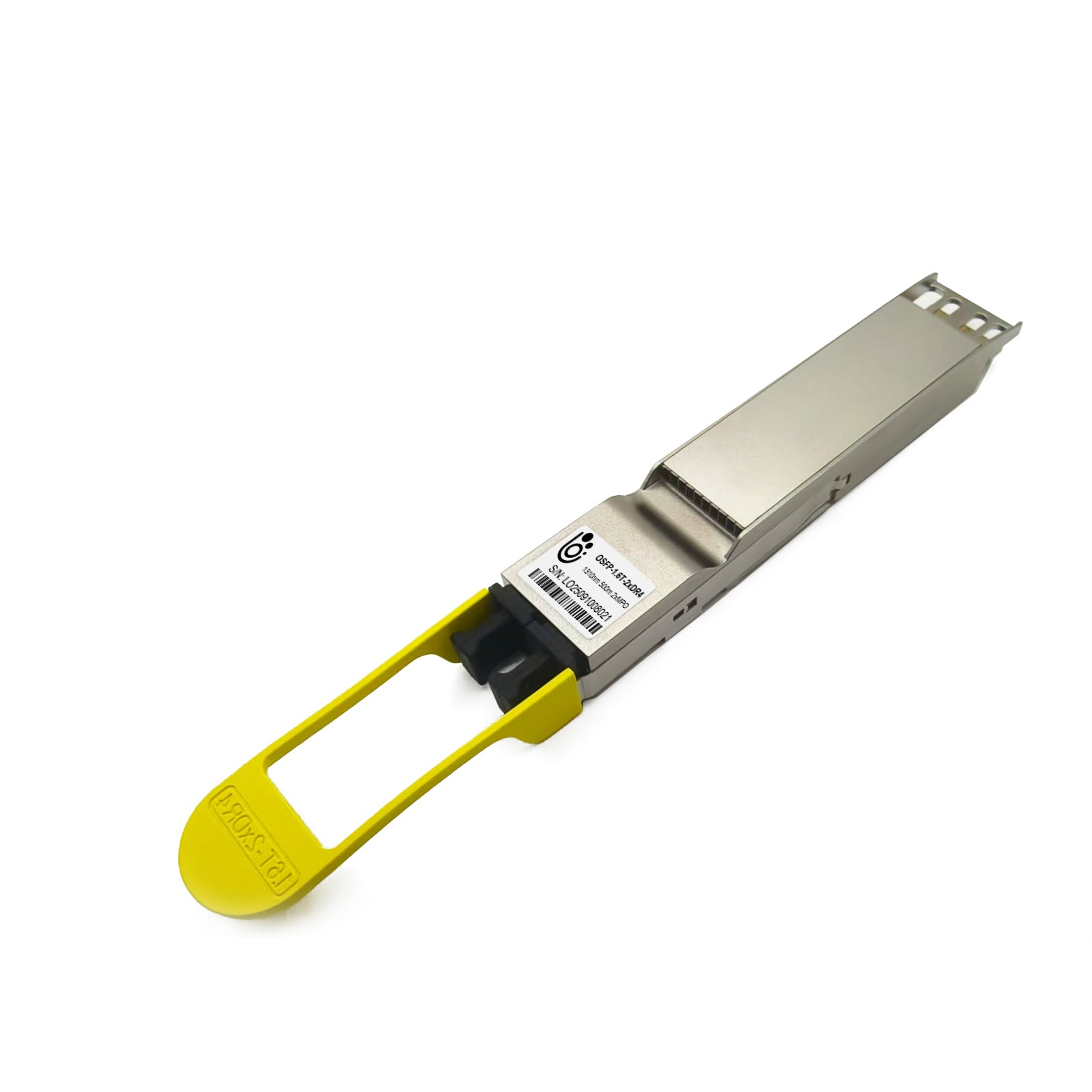

NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 Broadcom 3nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Closed Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 Broadcom 3nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Closed Finned Top)
This 1.6T OSFP224 Optical Transceiver Module is an InfiniBand and Ethernet 1.6Tb/s 2x800Gb/s Twin-port OSFP224, 2xDR4/DR8 single mode, Silicon photonics-based, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 800Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 200G-PAM4 modulation and has a maximum fiberreach of 500-meters using 8 single mode fibers. The main application for OSFP-1.6T-2xDR4H is linking two switches together with up to 500 meters.
Product Details
| NVIDIA Compatible | MMS4A00-XM | Vendor Name | LightOptics® |
| Form Factor | OSFP224 | Max Data Rate | 1.6T |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | Host Power Budget | 3dB |
| Connector | Dual MTP/MPO-12/APC | Receiver Overload | 4dBm |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | DFB(SiPh Based) | Receiver Type | PIN(SiPh Based) |
| Modulation (Electrical) | 8x212Gb/s PAM4 | Modulation(Optical) | Two ports 4x212Gb/s PAM4 |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Power Consumption | ≤25W |
| Protocols | IB XDR, 1.6T Ethernet Compliant | Warranty | 5-Years |
