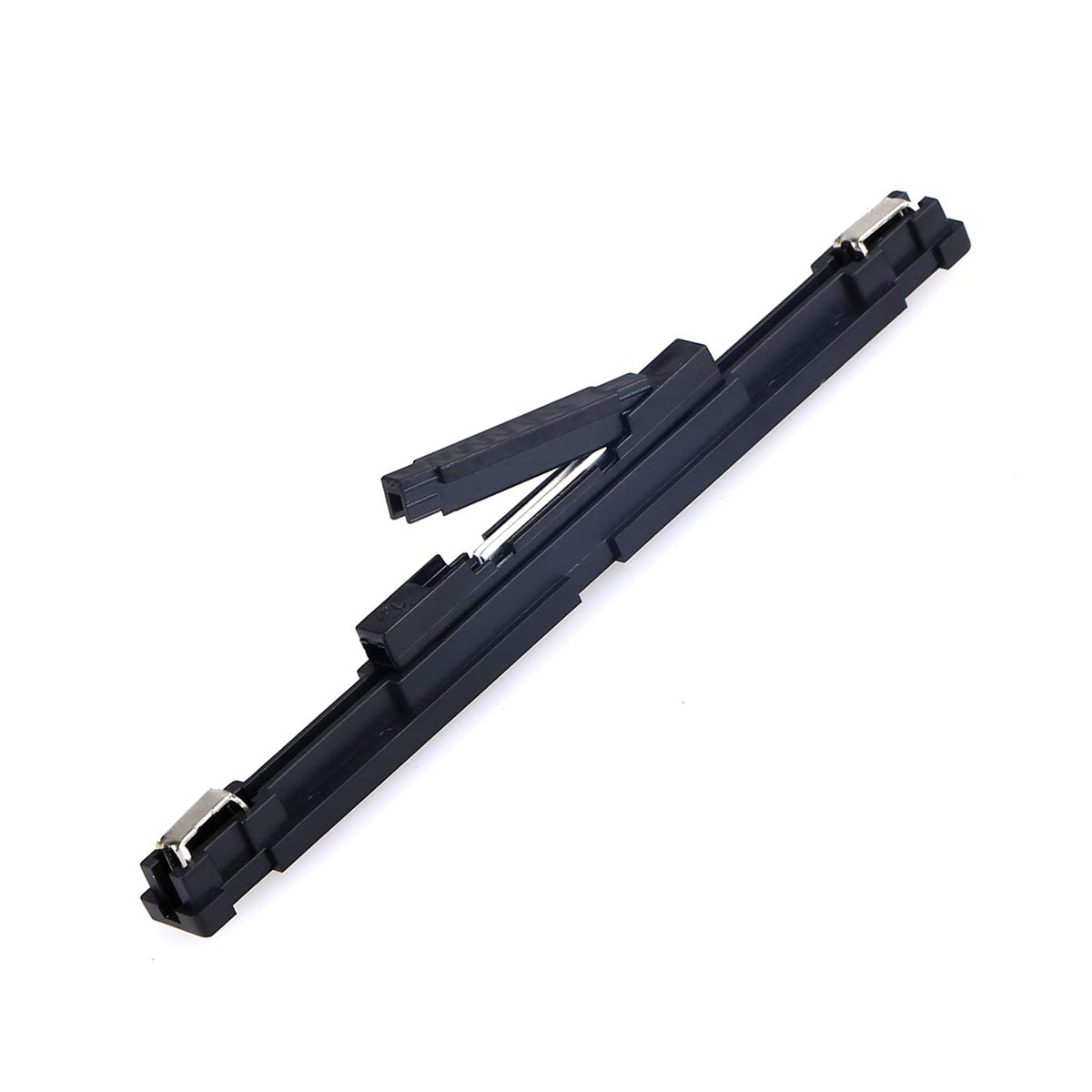

10pcs Fiber Optic Mechanical Splice FTTH Fastfield Installable


Fiber optic mechanical splice - ideal for FTTH Fastfield installable, which is developed for mechanical connection of FTTH aerial drop cable optical fibers by simply pressing the loping lid without separate installation tool. Using V-groove technology, this splice maintains physical contact between the fibers.
Fiber optic cables can be spliced simply in this way in a very short time. It can be used for 900µm,250µm or 3.0x2.0mm FTTH drop cable.


  • Made by USA matching gel. Low insertion loss,high return loss.
  • Precision metallic alloy components with co-axial self centering, excellent and durable optical property.
  • Uninterrupted fitting and connecting technology, hence signals are free of impact from external force.
  • The naked fiber, tight buffer and cable, etc., can fully meet the environmental requirements from the terminals customer.
  • Integrated protection of the casing to withstand harsh outdoor environment.
  • High success rate and easiness in installation with average splicing time of 150 sec.


Item Technical Parameters
Applicable for φ0.25 mm &φ0.90mm fiber ,or 3.0x2.0 drop cable
Optical fiber diameter 125μm ( G.652 & G.657 )
Tight buffer diameter (μm) 250μm
Fiber mode Single & multi-mode
Operation time About 10s (no fiber cut)
Average Insert loss ≤0.20dB (1310nm&1550nm)
Return loss ≤-50dB
force (φ0.25 mm &φ0.90mm fiber) >3 N
Force(3.0x2.0 drop cable) >30 N
Operation temperature -40~+75C
