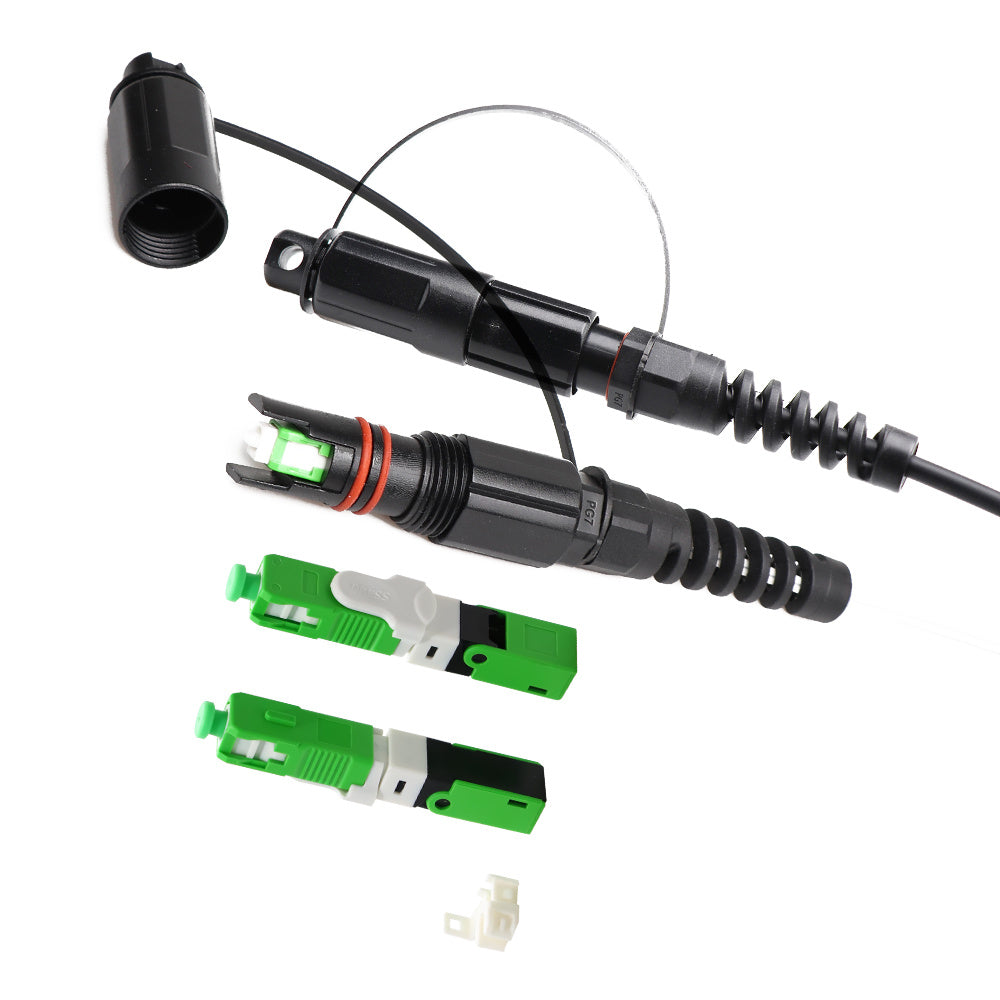

H Connector OptiTap SC/APC IP67 Waterproof Field Installable Hardened & Reinforced Connector

$8.84
$8.84
Tags:

Outdoor IP67 Waterproof OptiTap H Connector SC/APC Field Installable Connector is a hardened and reinforced fiber optical connector, which can install with ESC250D, Sumitomo, Fujikura and Furukawa fast connector and can be used for 2.0*5.0mm outdoor flat drop cable or 2.0*3.0mm FTTH drop flat cable.

This reinforced adapter connector is an excellent solution compatible with Corning OptiTap devices like MST Box or other FTB fiber distrubition box. As it is a filed assembly connector adapter, it don't need to be terminated in a laboratory, it is easy to install and no need special tools. It is also very convenient for terminal operation, according to different lengths.

FEATURES

  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
  • Best suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
  • Can be installs without special tooling
  • Threaded style coupling
  • Provides bend protection for installation and long term use.

How to install SC APC Fastfiled Assembly Connector in H Connector OptiTap Waterproof connector




SPECIFICATIONS

Optical Characteristics
Compatibility Compatible with ESC250D/APC, Sumitomo, Fujikura and Furukawa fast connector
Cable type 2.0x5.0mm or 2.0x3.0mm flat drop cable
Fiber count 1F
Typical Insertion Loss  ≤0.3 dB
Max Insertion Loss  ≤0.5 dB
Time to terminate 2 min
Max Tensile Strength  200N/m
Mechanical Characteristics
Waterproof level IP67
Allowable mating 50 times
Allowable tensile strength 200N (within 60sec)
Material Plastic Reinforced PEI
Color Black
Operating Temperature  –40℃ to +90 ℃
Life Time 20 years
