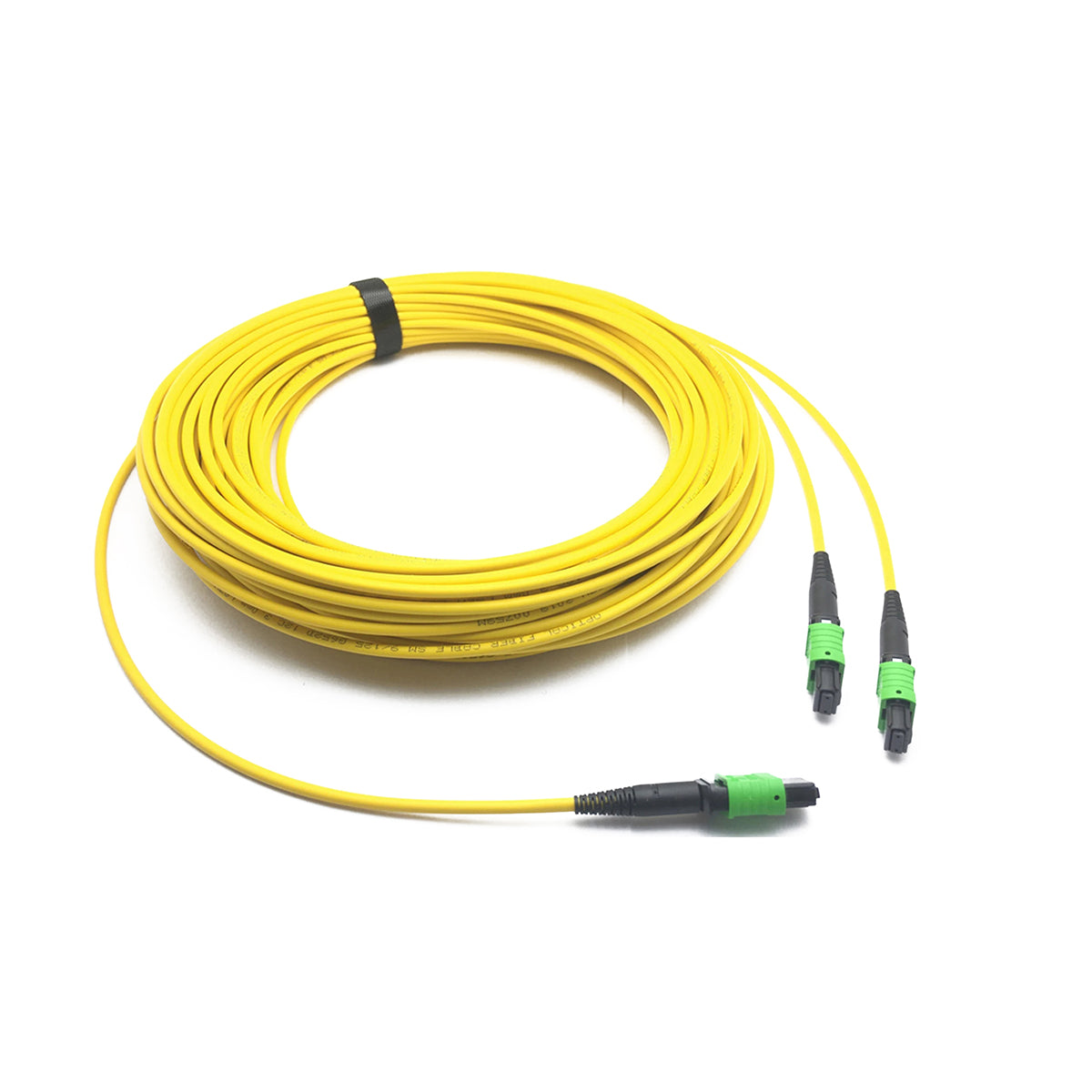

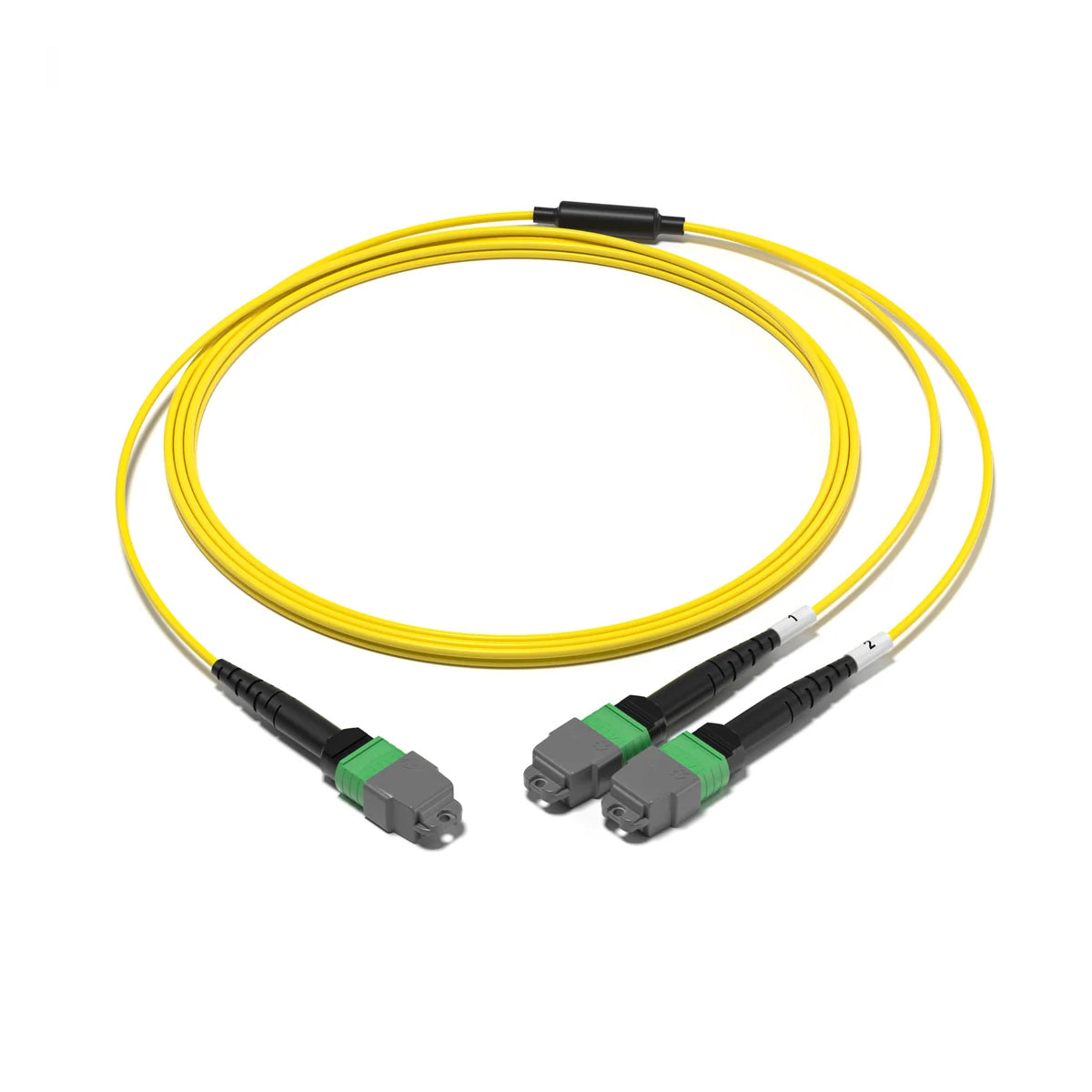

NVIDIA/Mellanox MFP7E40-Nxxx Compatible Single-mode MPO Splitter Fiber Cable
NVIDIA/Mellanox MFP7E40-Nxxx Compatible Singlemode Splitter Fiber Cable (8 Fibers MPO to 2xMPO 4 Fibers, 9/125um, Low Insertion Loss: <0.35dB, 8 to 2x4 Cores, Type B, MPO female connector without Pins )

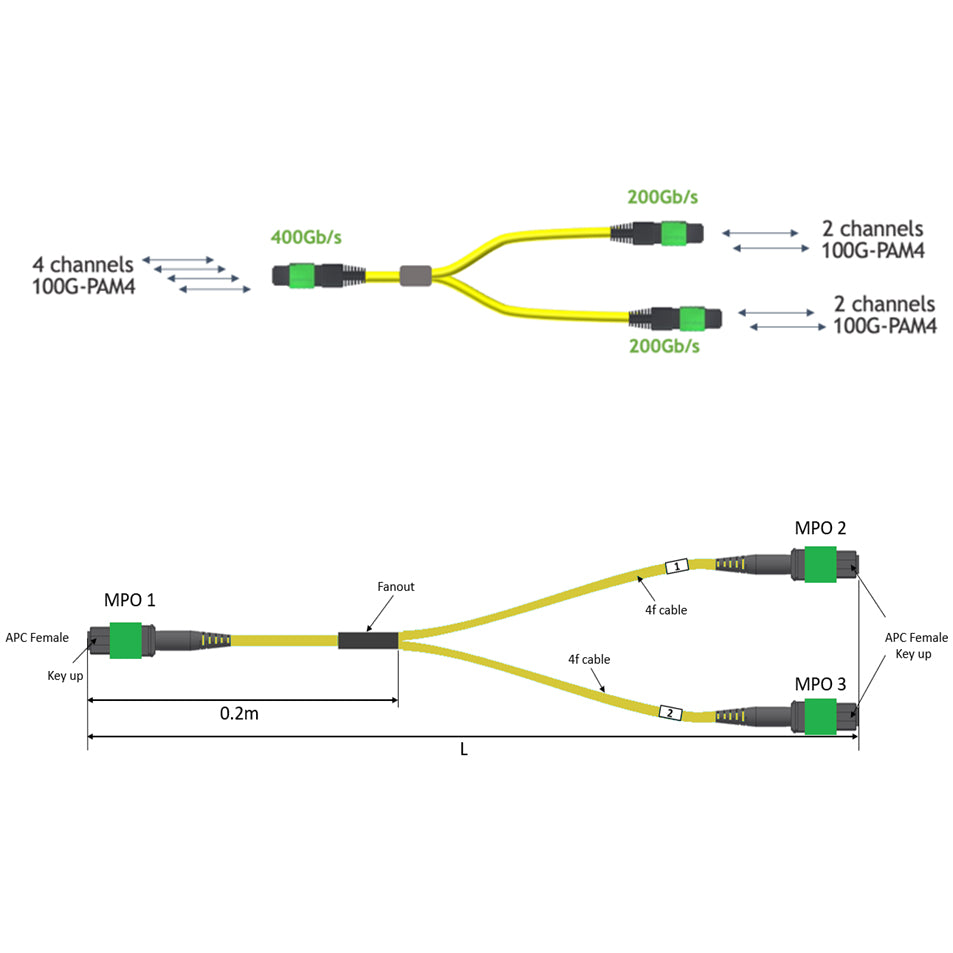

The 4-channel end is inserted into a Twin port OSFP, 800Gb/s transceiver. The 2-channel ends are inserted into two, single-port 400Gb/s OSFP and/or QSFP112 transceivers which with only 2 fibers can output 200G rates. Two splitter fiber cables are used in the twin-port OSFP transceiver enabling four, 2-channel ends to four transceivers.
The fibers are “crossover”, Type-B cables enable directly attaching two transceivers together and allow the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
The typical usecase is linking OSFP switches to in ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
| Connector A | MPO Female (pinless) | Connector B/C | MPO Female (pinless) |
| Fiber Mode | SM 9/125 μm | Wavelength | 1310/1550 nm |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Glass Fiber | Corning SMF-28® Ultra |
| Single-Mode Class | OS2 |
RoHS Compliancy Status | Compliant |
| Polish Type | APC to APC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 1310 nm | ≤ 0.32 dB/km | Attenuation at 1550 nm | ≤ 0.18 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
