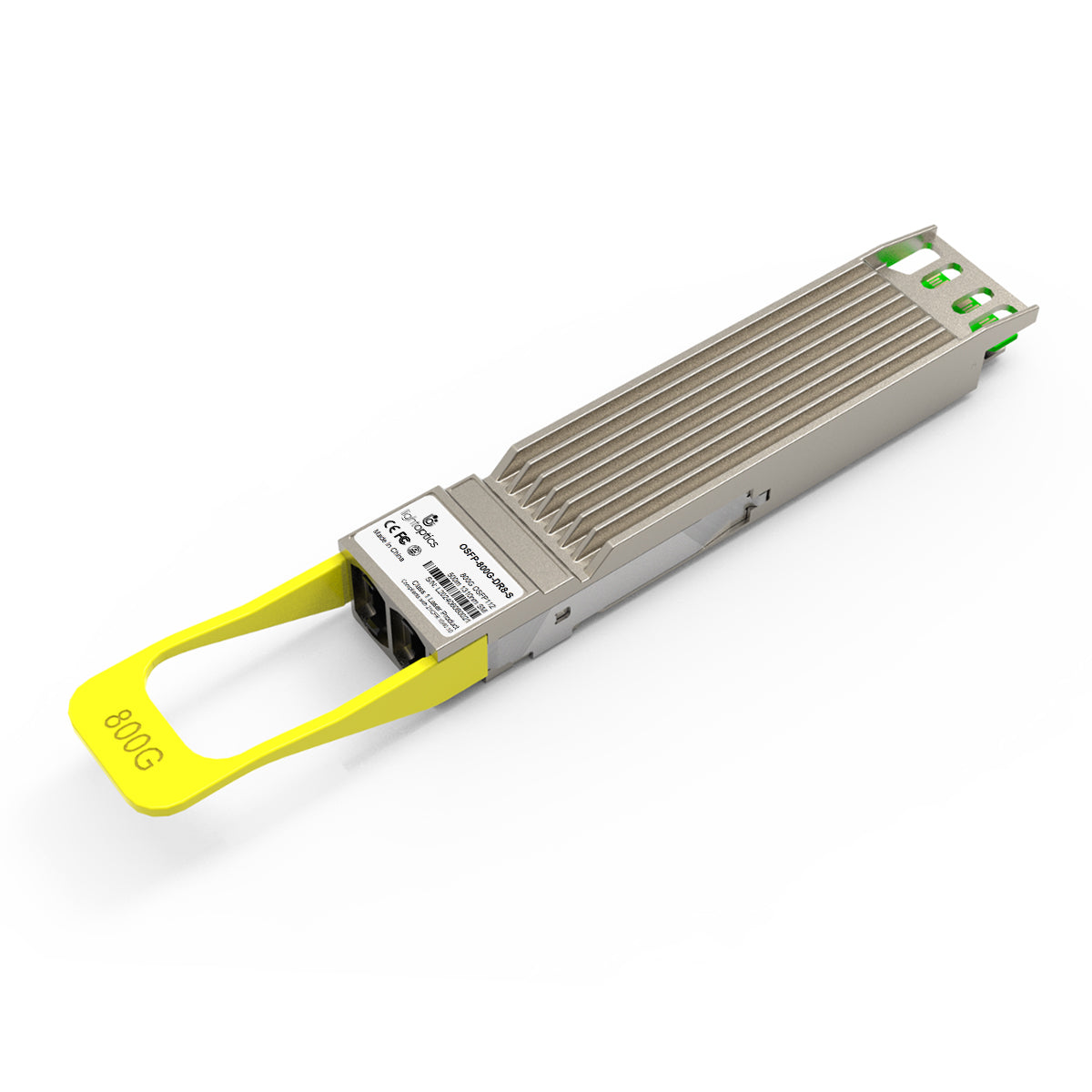

NVIDIA MMS4X00-NS Compatible 800Gb/s Twin-port OSFP DR8 Finned Top PAM4 1310nm 100m Dual MTP/MPO-12 SMF Optical Transceiver Module


NVIDIA MMS4X00-NS Compatible 800Gb/s 2x400Gb/s Twin-port OSFP DR8 Finned Top PAM4 1310nm 500m Dual MTP/MPO-12 SMF Optical Transceiver Module

The NVIDIA MMS4X00-NS compatible 800G OSFP DR8 is an InfiniBand and Ethernet 800Gb/s, 2x400Gb/s Twin-port OSFP, DR8 single mode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel single mode, datacenter reach 8-channel (DR8) design uses 100G-PAM4 modulation and has a maximum fiber reach of 100-meters using 8 single mode fibers.

(Please note The Quantum-2 and Spectrum-4 switches require finned-top OSFP shells for extra transceiver cooling.)

Product Details

NVIDIA Compatible MMS4X00-NS Vendor Name LightOptics®
Form Factor OSFP Max Data Rate 850Gbps (8x 106.25Gbps)
Wavelength 1310nm Max Distance 500m
Modulation Format PAM4 Host Required FEC
Connector Dual MTP/MPO-12 Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type EML Receiver Type PIN
TX Power -2.9~+4.0dBm Receiver Sensitivity < -5.9dBm
Operation Temperature 0 to 70°C (32 to 158°F) Maximum Power < 16W
Protocols CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu Application 800G Ethernet, Data Center Interconnect, Infiniband Interconnects
