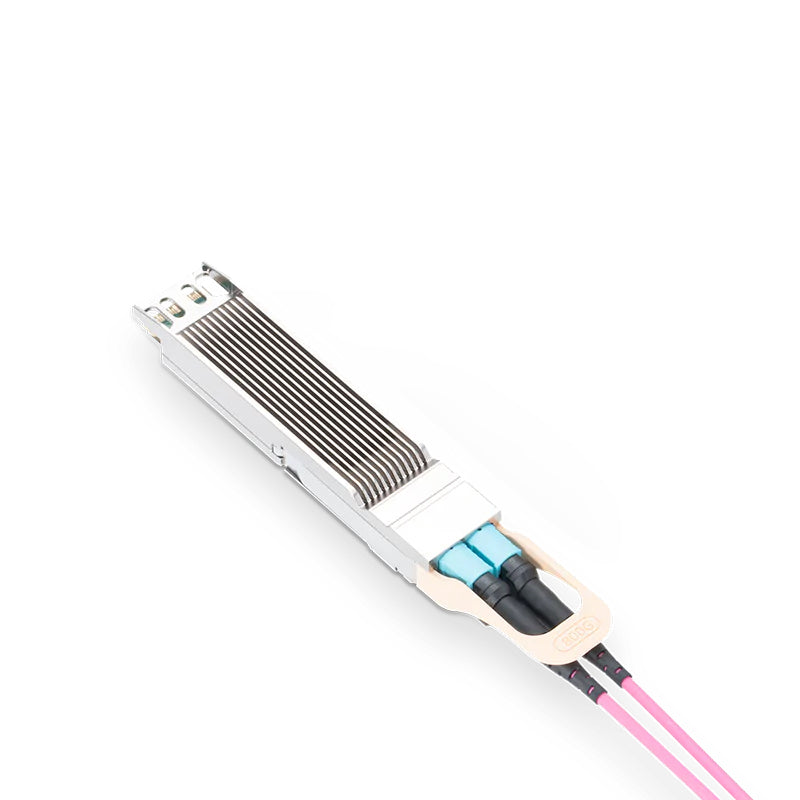

NVIDIA InfiniBand MMA4Z00-NS Compatible 800G OSFP112 PAM4 2x400G Twin-port OSFP Finned Top Transceivers 50m SR8 2x SR4 850nm Dual MPO-12/APC

$699.00
$699.00

NVIDIA InfiniBand MMA4Z00-NS Compatible 800G OSFP112 PAM4 2x400G Twin-port OSFP Finned Top Transceivers 50m SR8 2x SR4 850nm Dual MPO-12/APC

This OSFP transceiver module is designed for use in 800Gb/s 2xNDR InfiniBand systems throughput up to 30m over OM3 or 50m over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 connectors. Digital diagnostics functions are also available via the I2C interface, as specified by the OSFP MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as InfiniBand, data centers, high-performance computing networks, enterprise core and distribution layer applications.

NVIDIA MMA4Z00-NS Compatible 800G OSFP SR8 Transceiver Connectivity Scenarios

NVIDIA MMA4Z00-NS400

Product Details

NVIDIA Compatible MMA4Z00-NS Vendor Name LightOptics
Form Factor OSFP Max Data Rate 850Gbps(8x 106.25Gbps)
Wavelength 850nm Max Distance 30m on OM3/50m on OM4
Modulation Format PAM4 Host Required FEC
Connector Duplex MPO-12 (APC) Voltage Supply 3.3V
Cable Type MMF DDM Support  Yes
Transmitter Type  850nm VCSEL Receiver Type  PIN
TX Power -4.6~+4.0dBm Receiver Sensitivity < -4.6dBm
Operation Temperature  0 to 70°C (32 to 158°F) Maximum Power < 15W
Protocols CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu Application 800G Ethernet, Data Center Interconnect, Infiniband Interconnects
