MTP MPO Vacuum Fiber Optic Feedthroughs

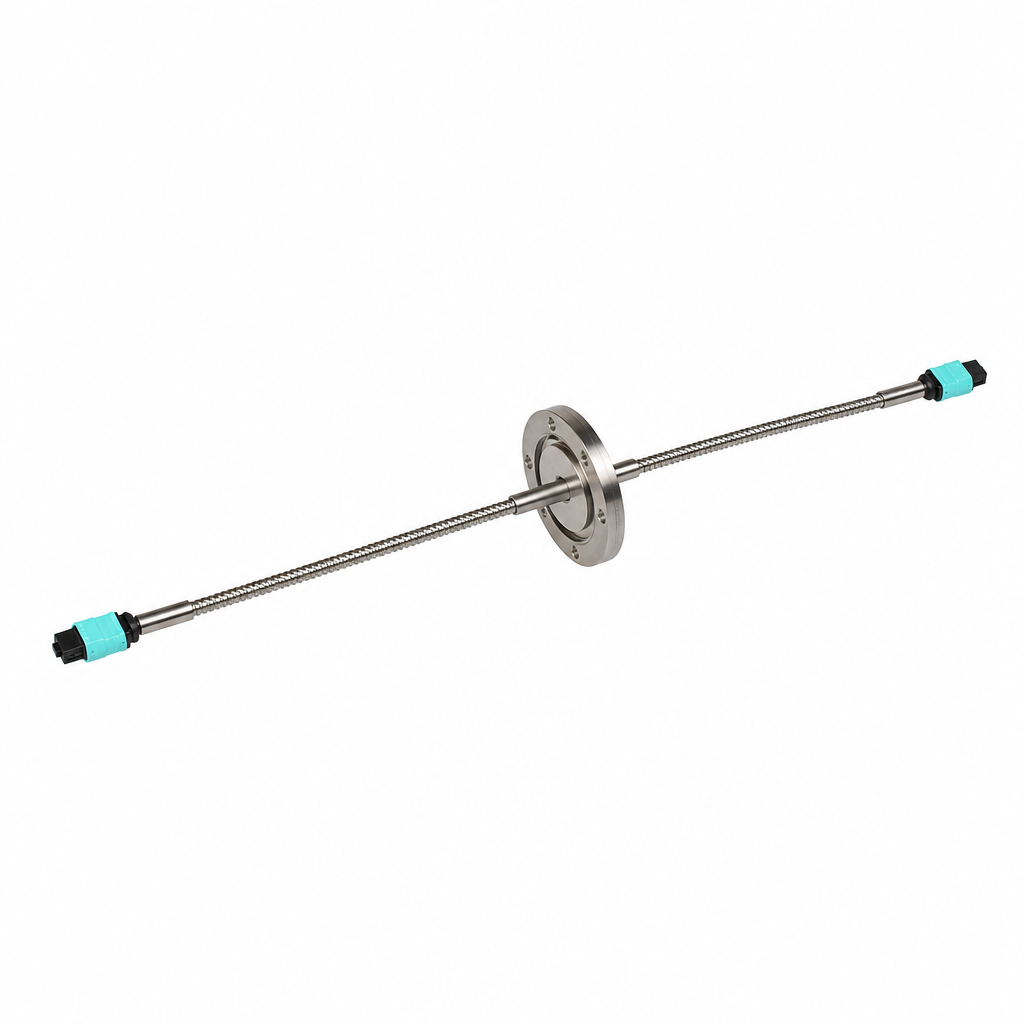

MTP MPO Vacuum Fiber Optic Feedthroughs CF35, 12-fiber OM3 Multimode 50/125um, 0.3-meter length, MPO female to female
LightOptics provides fiber optic feedthroughs ensure vacuum compatibility by sealing SM, MM, and PM fibers into standard (CF, KF, ISO) or custom flanges, typically made from stainless steel. Fibers can be sealed individually or in groups for multi-channel applications.
Protective tubing options include stainless steel for mechanical and environmental protection. Sealed fibers can be terminated with UHV-compatible connectors (FC/APC, FC/UPC, ST/UPC, SMA905) or integrated into V-groove arrays, matrix arrays, or fiber collimators.
The atmospheric side supports additional connector options, including LC, E2000, SC, MTP/MPO, and MMC connectors.
Specifications
Type: CF35
Fiber count: 12-fiber
Fiber type: OM3 Multimode 50/125 µm
Housing material: 3.0mm OD Stainless Steel Armored
Connectors: MPO/UPC female
Applications
- High and ultra-high vacuum systems – research and industrial use
- Fusion and particle accelerators – optical interfaces in extreme conditions
- Laser systems – optical signal transmission in vacuum
- Semiconductor and photonics – vacuum chamber applications
- Aerospace and defense – optical data transfer in space simulations
- Spectroscopy and sensing – controlled vacuum environments
- Medical and biotech equipment – vacuum-compatible optical connections
