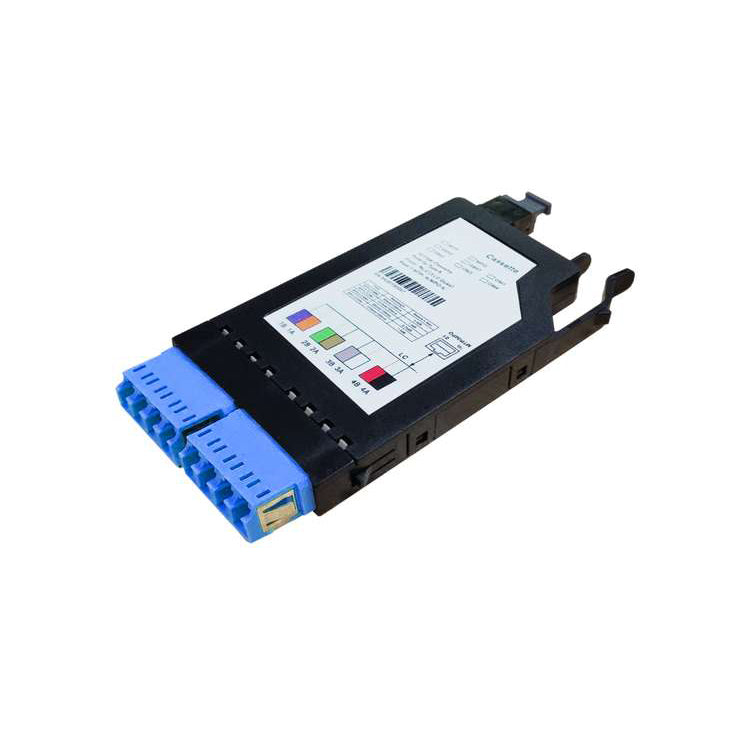

The FHD18-Series Base-8 MPO/MTP Cassette
provides an interface between 40G QSFP+ transceivers with MPO interface and 10G SFP+ 10G transceivers with LC duplex interface. Fiber cassette provides a compact alternative to support migrating speeds in your network for equipment-to-equipment connections provided by QSFP+ to SFP+ fanout assemblies.Applications
- Data center
- Parallel optics
- Storage Area Networks (SAN)
- 40GBASE-IR4/PLR4 to 4x10GBASE-LR links
High density easy-plug cassette modules
- Mounts up to 144-fiber per 1U (18 slots for base-8 cassette), 576-fiber per 4U rackmount patch panel
Plug-&-play MTP/MPO cabling solution
- Flexible for integration with 1U/2U/4U FHD18 series rack-mount patch panel
Ease of installation and good traceability
- Channel label and data label printed with insertion loss value for each port
Qualified performance beyond TIA/EIA and IEC standards
- Pre-installed with factory-terminated and factory tested MTP/ MPO to LC hydra assembly
Simple to use, convenient installation
- Pre-installed with fiber MTP/MPO adapters at the rear, and LC adapters in the front panel
Field terminations Elimination
- Reduces labour cost and improves cabling manageability
|Front Connector Type
|2 LC UPC Quad (Blue)
|Rear Connector Type
|1x MTP Base-8 Male (Pinned)
|Key up to Key down
|RoHS Compliancy Status
|-10°C to 60°C
|Storage and Shipping Temperature
|-10°C to 60°C
