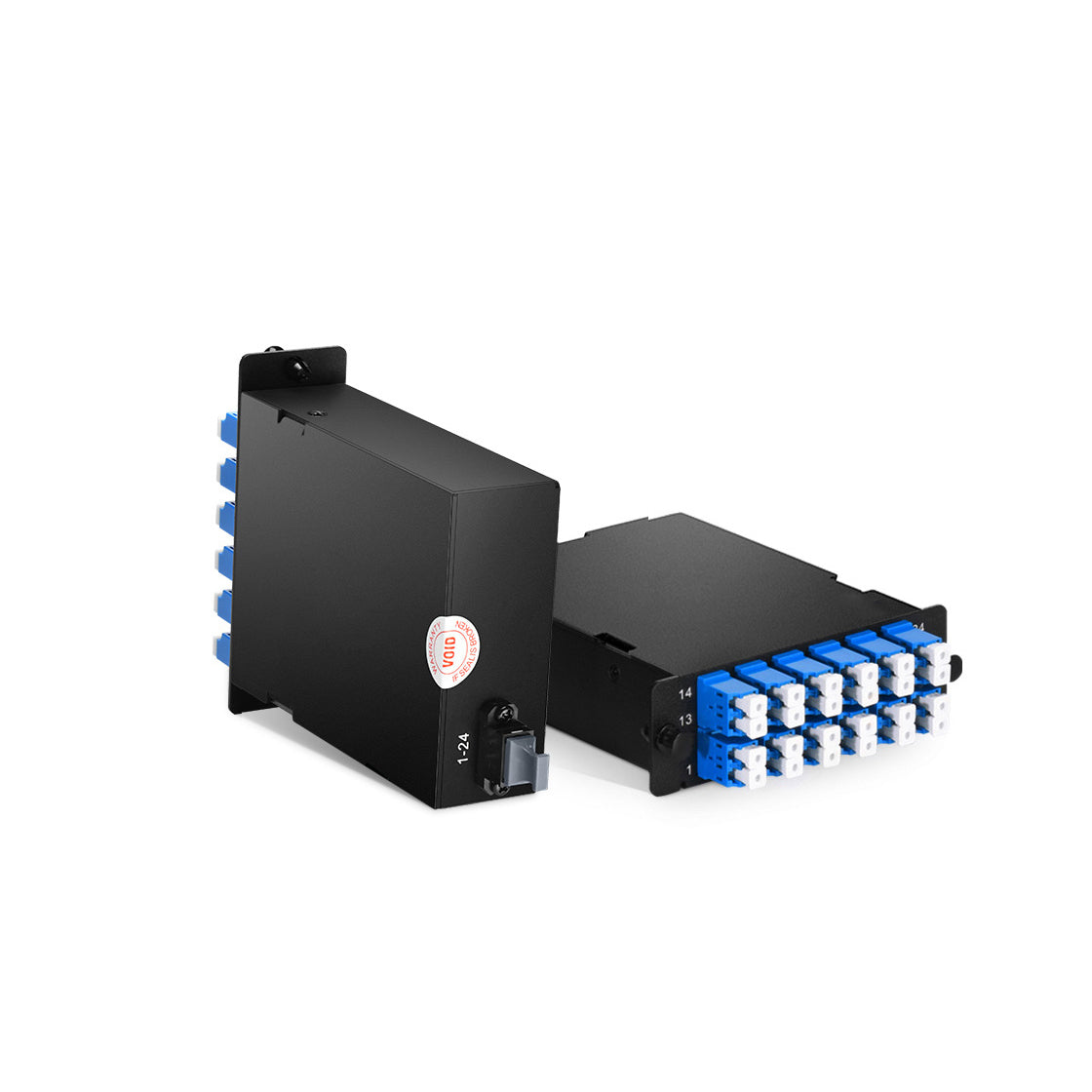

24 Fibers Singlemode 9/125um MTP/MPO Cassette 1x MPO-24 LC Duplex RM Series
MPO-24 Singlemode MPO Cassette 24 Fibers 12x LC Duplex, 24 Strands OS2 9/125μm SMF, Type A and AF Polarity. Used with the Method A Trunk.
This MPO fiber cassette modules offer 24-fiber MPO adapter on the rear of the units routed to duplex LC adapters on the front patch field, 4 cassettes fit into 1U, Up to 96 fibers, which interconnect with high-density fiber cable assemblies for multiple applications.
Product Features
- Factory-terminated provide consistent quality, high performance and reduce installation time
- 100% tested for low insertion loss performance and high return loss
- Simplifies cable management and allows for higher density
- 0.35dB Ultra Low-loss MPO Connectors Allow for More Mated Pairs or Longer Link Distances
- Front Adapter Housing Colors Follow TIA/EIA-568.3-D Suggested Color Identification Scheme
Specification
Fiber Type | OS2 Singlemode | Fiber Count | 24-Fiber |
Front Connector Type | 12x LC Duplex | Rear Connector Type | MPO-24 Male (Pinned) |
Dimensions (WxDxH) | 130×112×30mm | Test Wavelength | 1310/1550 nm |
Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥60dB, LC≥50dB |
Polarity | Type A | Durability | ≥500 times |
MPO Connector | Key up to Key down | Polish | APC |
Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Data Centre Infrastructure Fiber Optic Network Infrastructure High-Density Fiber Management |
