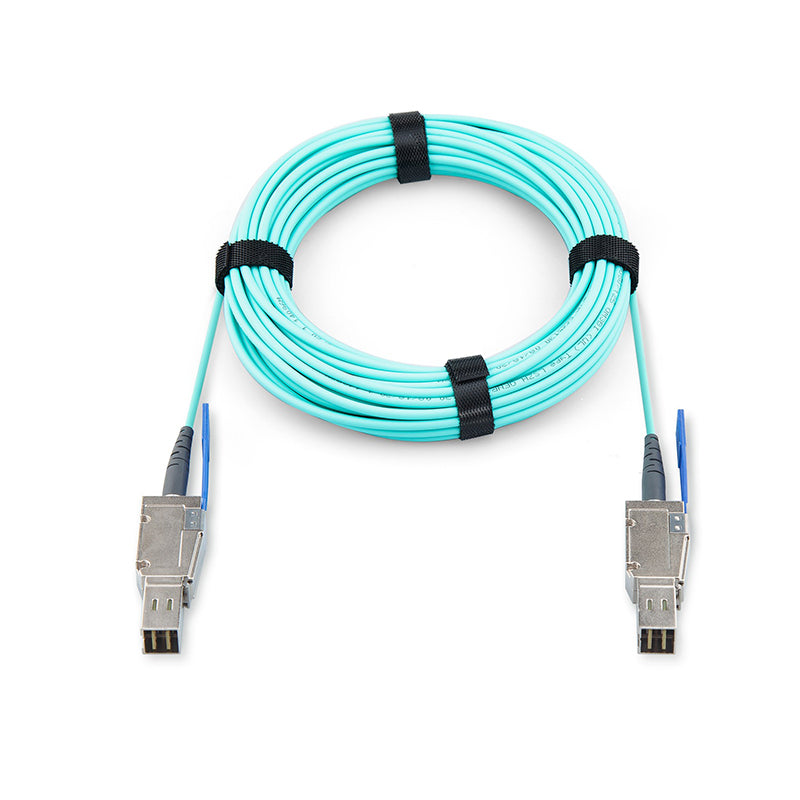

Mini SAS HD 4X-Mini SAS HD 4X 12G Active Optical Cables (AOC)

Length :

SAS 12G Mini SAS HD Active Optical Cable (AOC) is fully compliant to SAS 2.1 and SAS 3.0 industry standards as well as the SFF-8644 standard, and supports an aggregate speed of 48 Gb/s.

Compliant with SAS-3.0 of 12-Gbps/Lane Speed
Backwards compatible to SAS 2.1 6Gbps application
Data rates : 12 Gbps
Maximum aggregate data rate: 48Gb/s (4 x 12Gb/s)
I/O Connector designed for high speed differential signal

Connector Compliant with SFF 8644 Mini Multilane 4/8X 12 Gb/s Shielded Connector (HD12sh)
Low Power Consumption < 0.5W
Fiber: OM2/OM3/OM4
Length = 1- 100 meters
Management interface compliant to SFF-8636
EEPROM signature can be customized
Full Duplex 4 Channel 850nm Parallel Active Optical Cable
Hot pluggable electrical interfaces
Multi-channel 850nm VCSEL array
Multi-channel PIN-detector array
Laser Class 1 Compliant

Type: Active / Optical
End A =Mini SAS HD 4X (SFF 8644)
End B =Mini SAS HD 4X (SFF 8644)
Bend Radius = 25m
Data rates : 40Gbps
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C
Performance: BER < 10-12

Product Environmental Compliance
RoHS Compliant

Target Market
Server ,Storage, RAID Systems
SATA/ SAS Equipment
High-Performance Computing (HPC)
