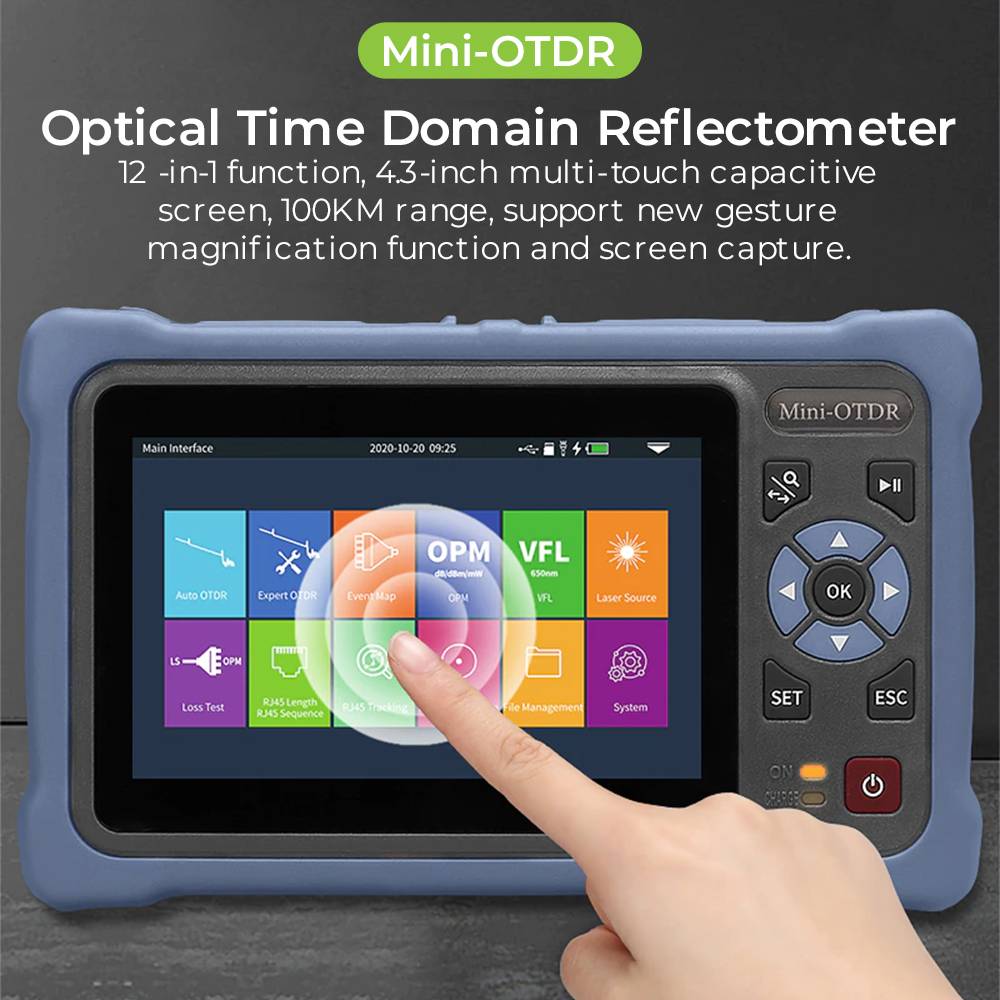

Mini OTDR 100KM Fiber Optic Reflectometer With 12 Functions Touch Screen VFL OLS OPM Event Map


This OTDR is for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.


  • Simple optical fiber obstacle finder, can find breakpoint, distance, attenuation
  • Function can test two display modes of fault point, loss, curve, and list
  • Universal ports for different interfaces can be replaced, and the operation is simple and practical
  • Stable and strong, the penetration effect is good, 2.5mm SC/FC universal interface
  • Models available UPC SC/FC two-port universal interface, dual-wavelength 1310/1550nm


Models: Dual-wavelength UPC Interface

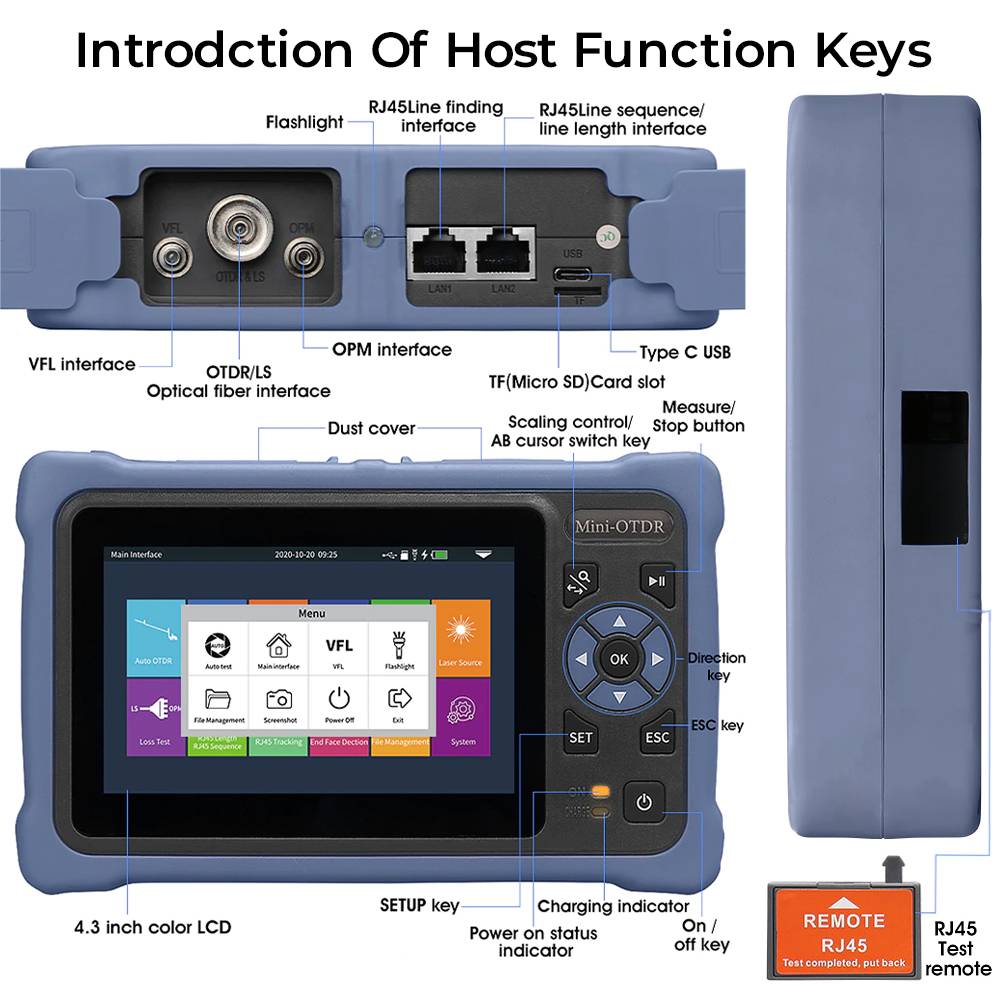

12 in 1 Functions: 4.3inch Multi-Touch Capacitive Screen, Auto OTDR, Expert OTDR, Event Map, Optical Power Meter, Visual Fault Locator, Laser Source, Loss Test Ethernet Cable Distance, RJ45 Length/RJ45 Sequence, RJ45 Tracking, End Face Dection, File Management, System.

Working wavelength: 1310nm/1550nm
Dynamic range: 26dB/24dB
Joint type: SC FC two-port universal different interfaces can be replaced, and the operation is simple and practical
RJ45 Test Function: RJ45 line finding function
Maximum measurement distance: 100Km
VFL Working wavelength: 650nm
Battery: Built-in 4000 lithium battery and USB interface are convenient for power storage, and can use up to 6hrs

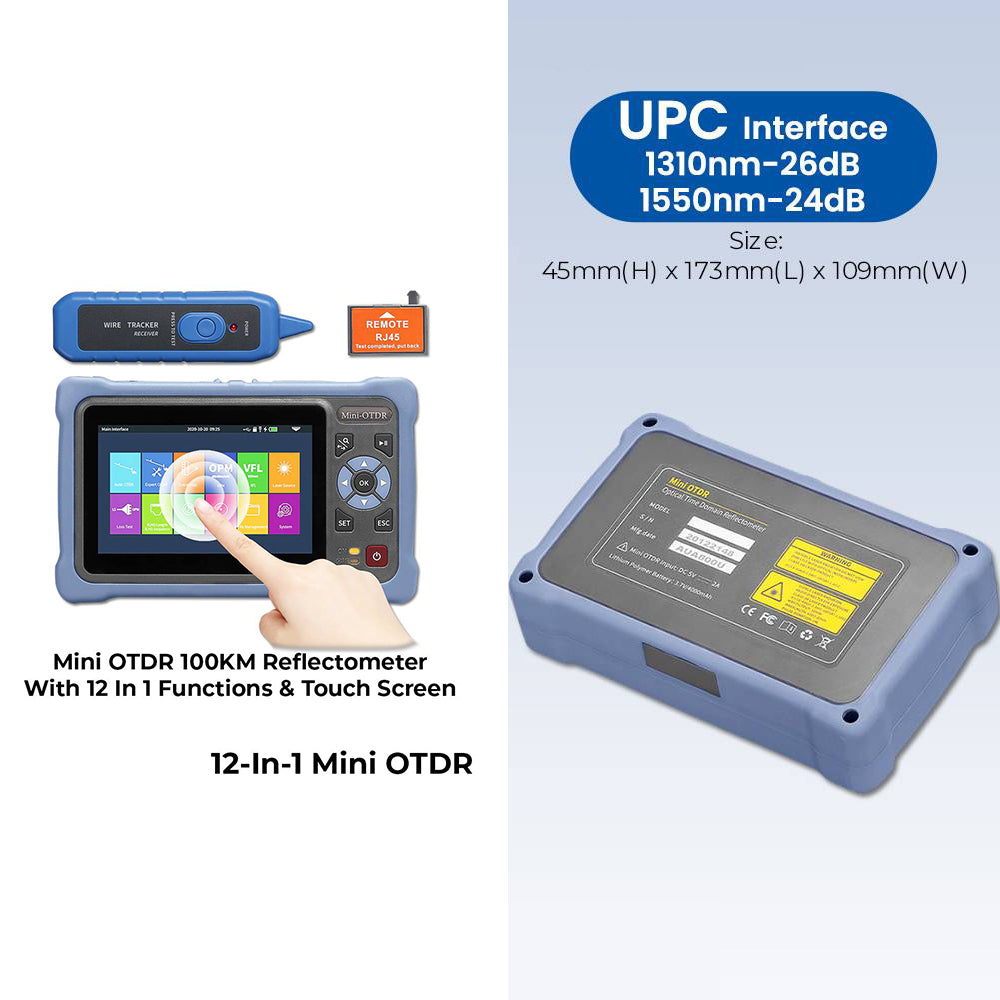

Size: 173mm x 45mm x 109mm

What is the box?

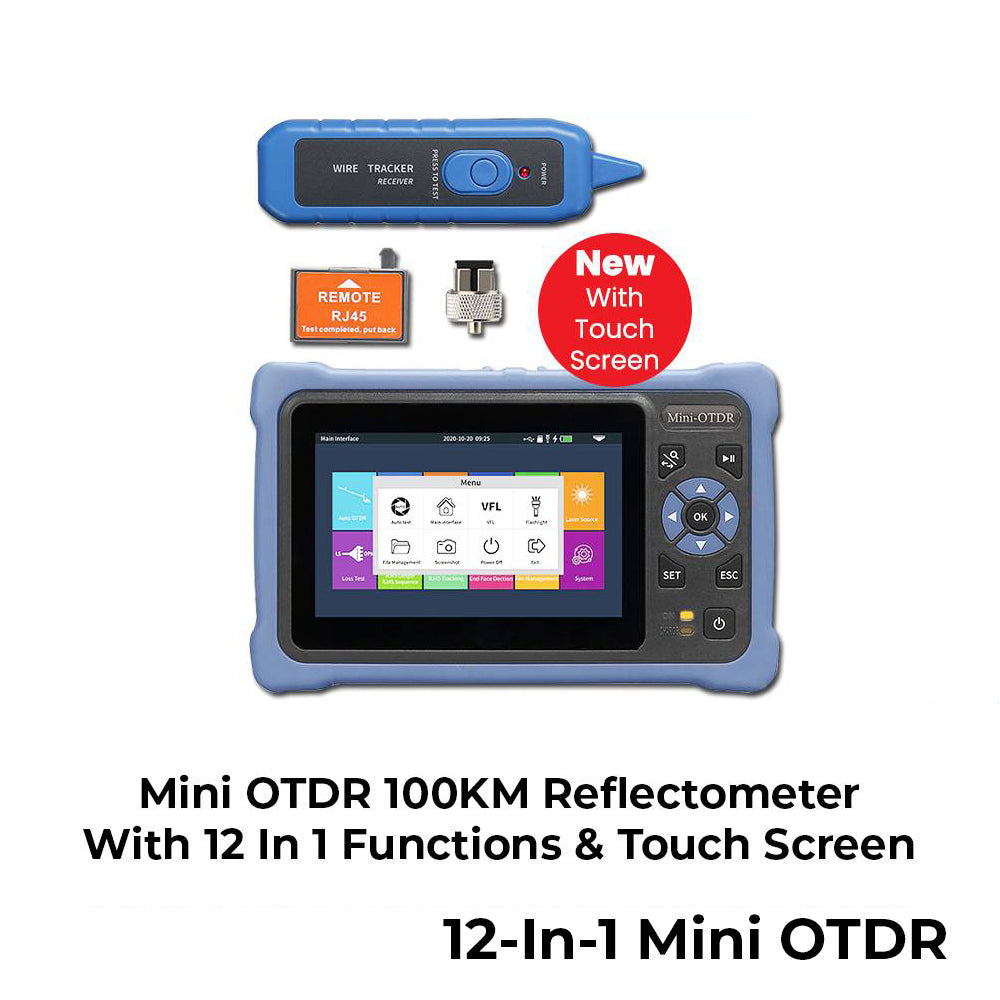

- OTDR Host, Adapter + Test report + Instructions + Warranty card + Certification + SC Adapter +FC Adapter (installed on the machine) + clean cotton + RJ45 receiving instrument + RJ45 remote adapter +data line + charging head + 8G memory card + portable package + packing box.
Note:pls not test the live fiber,otherwise it may burn the instrument.
