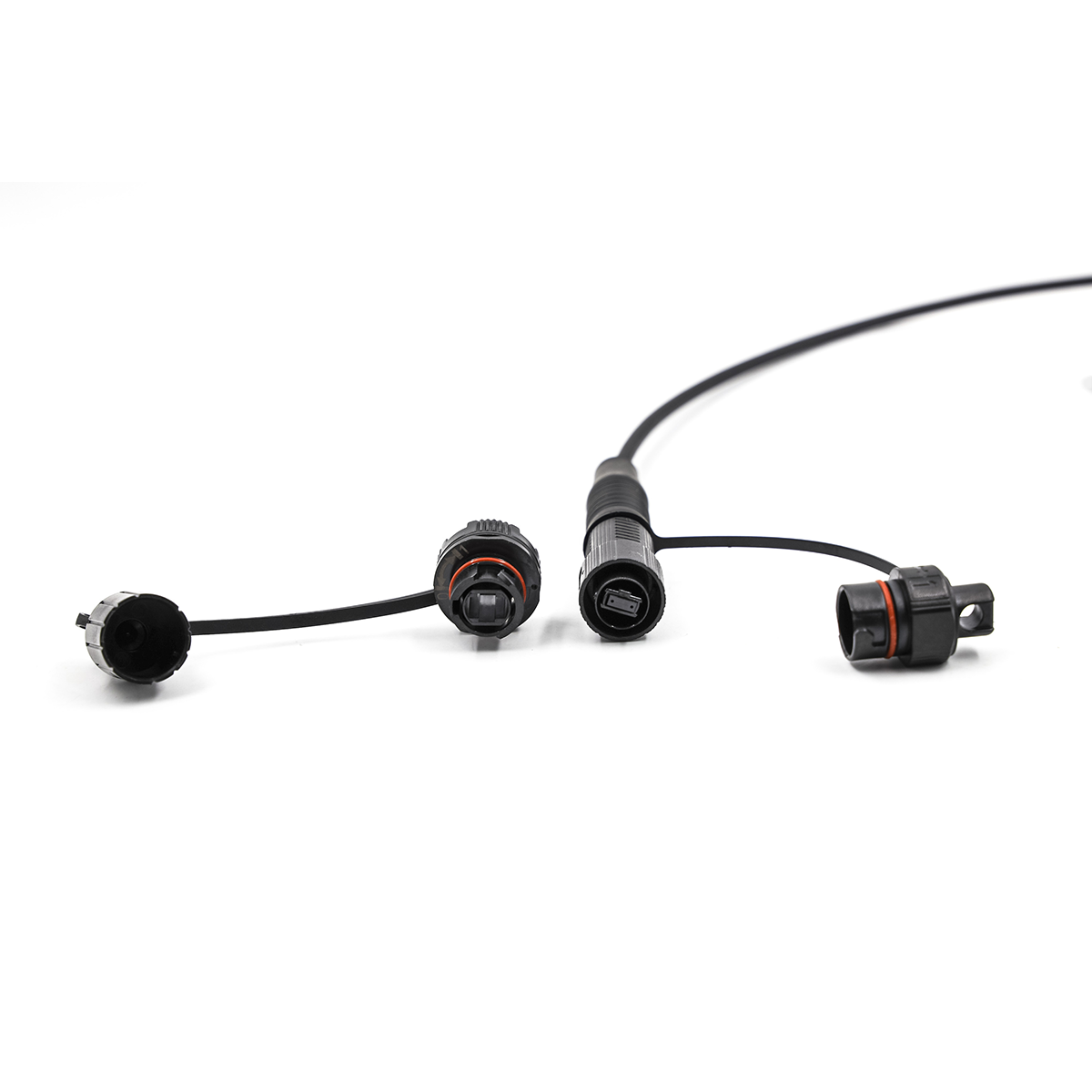

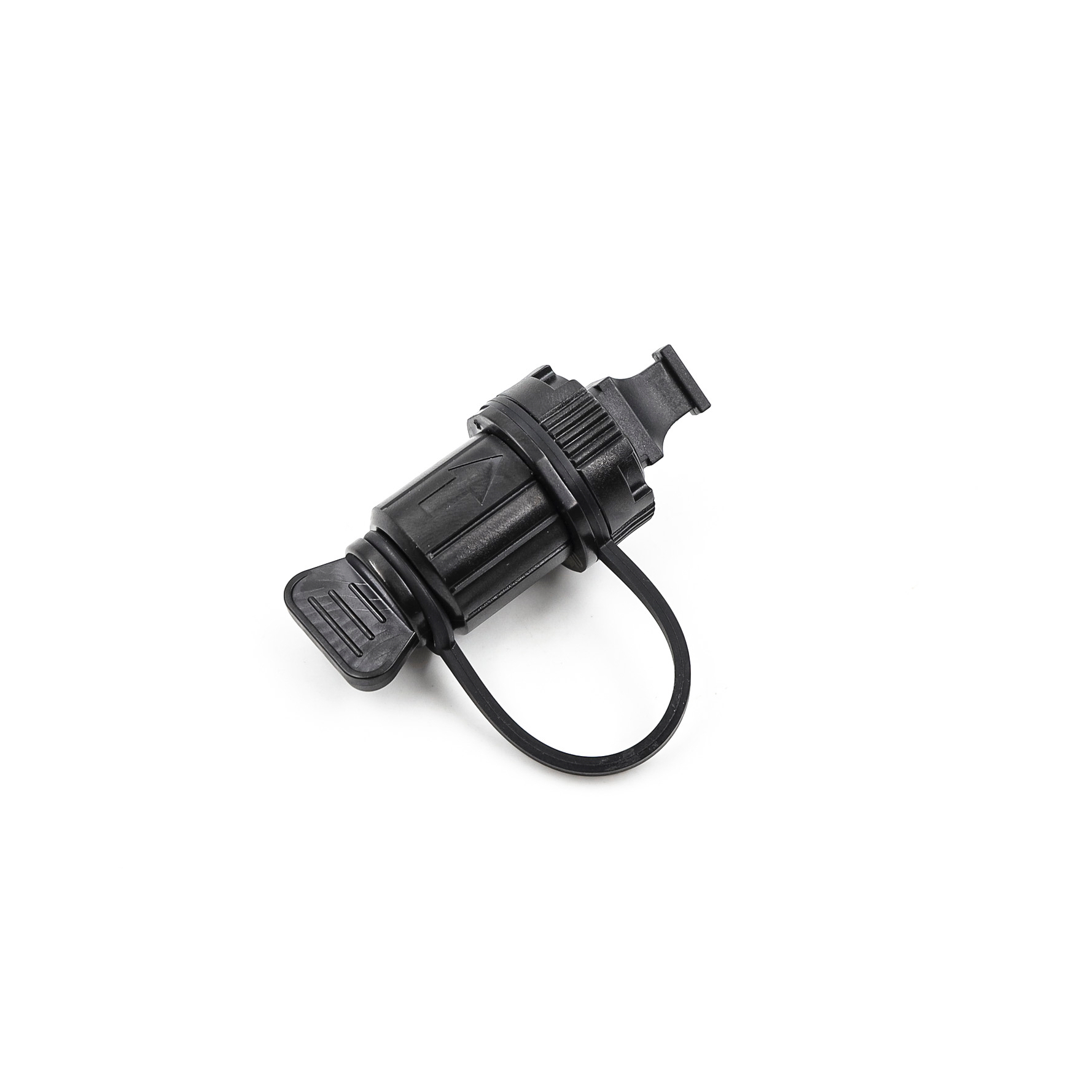

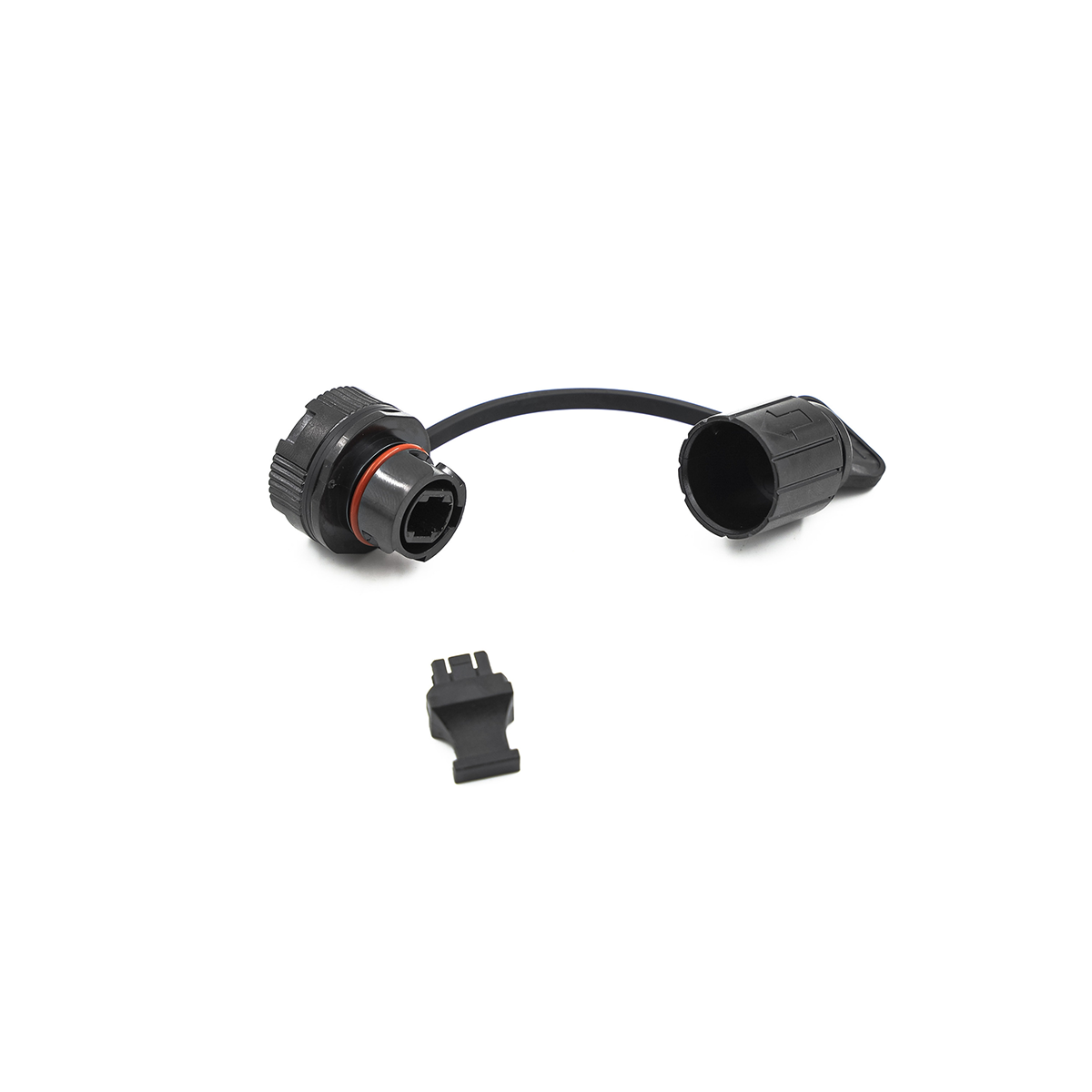

Mini MPO Waterproof Fiber Optic Adapter – IP67/IP68 for FTTA Outdoor Fastconnect Deployment
Mini MPO Waterproof Fiber Optic Adapter – IP67/IP68 for FTTA Outdoor Fastconnect Deployment
Outdoor Fastconnect MINI MPO Fiber Adapter, it can be connected with Mini SC System and Solutions and compatible with the Mini SC closure instruction.
APPLICATIONS
- FTTA (Fiber to the Antenna) base-station connections.
- MST and distribution boxes for outdoor network deployment.
- Outdoor 5G/4G cell sites and tower-mounted radio units.
- Harsh-environment fiber patching in CATV or CCTV systems.
- Data center outdoor extensions and military communication setups.
- Industrial automation and field monitoring requiring sealed connections.
Technical Specifications
| Parameter | Description |
| Connector Type | Mini IP MPO |
| Key/Polarity | Opposed (Up–Down)/Type-A |
| Adapter Port | Single |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Protection Level | IP68 |
| Durability | ≤ 0.1 dB change after 500 cycles |
| Flammability Rating | UL94-V0 |
| Operating Temperature | –25℃ ~ +70℃ |
| Standards Compliance | IEC 61754-4 / TIA-568C.3 / YD/T1272.5-2009 |
| RoHS Compliance | Yes |
| Available Options | Flanged / Flangeless |
| Compatible Fiber Types | SM / MM interchangeable |
