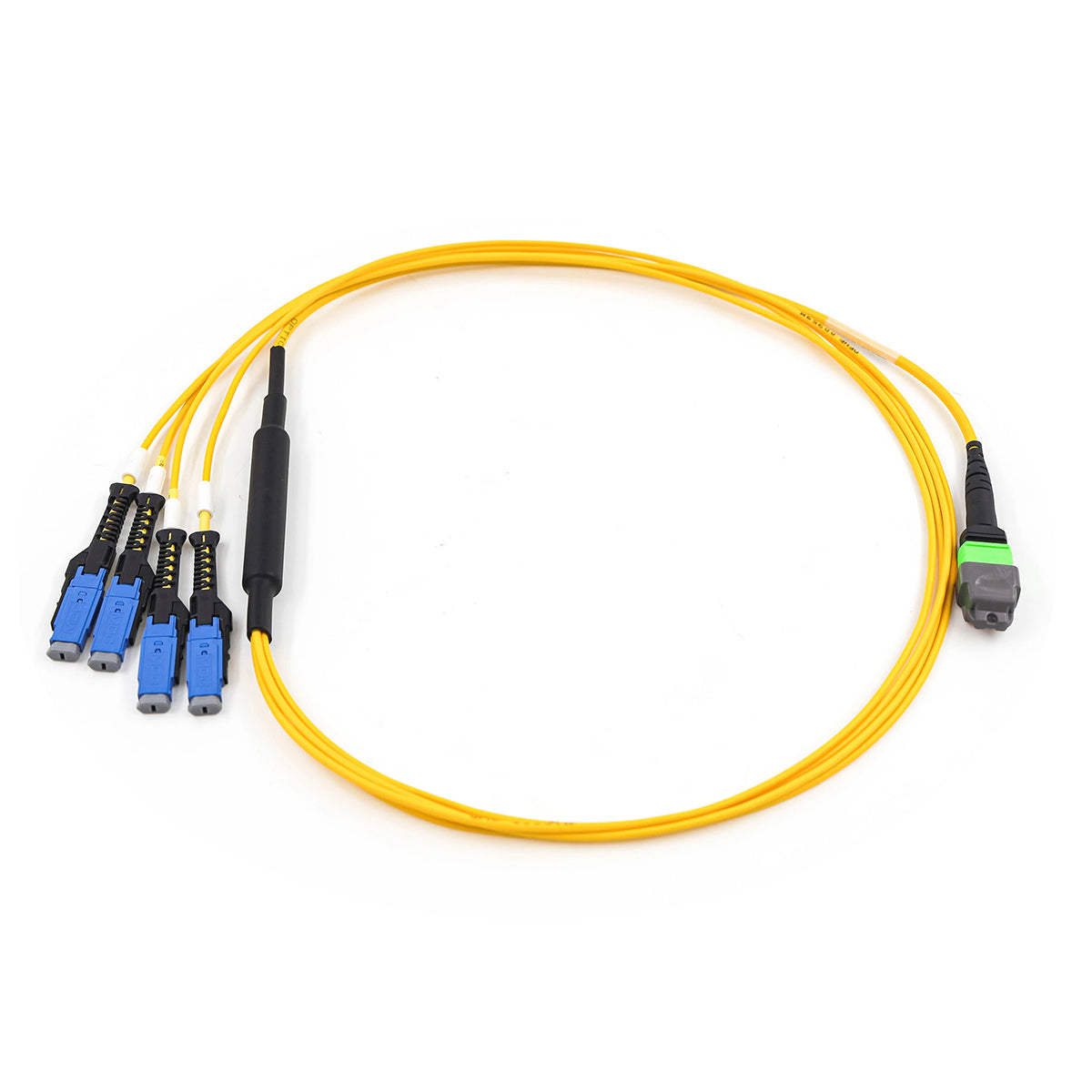

MTP/MPO APC (Female) to 4 MDC UPC Duplex 8 Fibers Single Mode (OS2) LSZH 0.35dB Max
MTP/MPO-8 APC (Female) to 4 MDC UPC Duplex, 8 Fibers, Single Mode (OS2), LSZH Jacket, 0.35dB Max, Type B Polarity, Yellow
The MDC connector, utilizing current 1.25mm Ferrule technology, is a new type of very small form factor (VSFF) that designed for hyperscale, edge, enterprise, and colocation data center interconnect (DCI) applications. Compared with the standard duplex LC connector, the space between two ferrules is 6.25mm, while the space between two MDC connector is 3.5mm, moreover, the space between two MDC connector is 4mm. A duplex LC adaptor size could hold 3 MDC connectors, which triple denstiy of the patch panel.
The MDC connector is designed to provide an alternative to MPO connectivity and uses individual and independent duplex fiber breakout at 400G QSFP-DD or OSFP. QSFP-DD with MDC connector just made 400G Breakout applications much easier.
400G QSFP-DD with MDC connector types:
QSFP-DD 4x100G QSFP-DD 4xDR1 500m
QSFP-DD 4x100G QSFP-DD 4xFR1 2km
QSFP-DD 4x100G 4xLR1 10km
Product Specifications
| Connector A | MPO APC Female Elite (Pinless) | Fiber Type | Singlemode G.657A1 (Compatible with G.652.D) |
| Connector B | US Conec MDC UPC | Cable Diameter | 3.0mm |
| Insertion Loss | MDC≤0.3dB, MPO≤0.35dB | Minimum Bend Radius | 10mm |
| Return Loss | ≥ 50dB | Attenuation at 1310 nm | ≤ 0.4dB/km |
| Polarity | Type-B | Attenuation at 1550 nm | ≤ 0.22dB/km |
| Cable Jacket | PVC | Operating Temperature | -10~70°C |
| Fire Rating | LSZH | Storage Temperature | -20 to 70°C |
