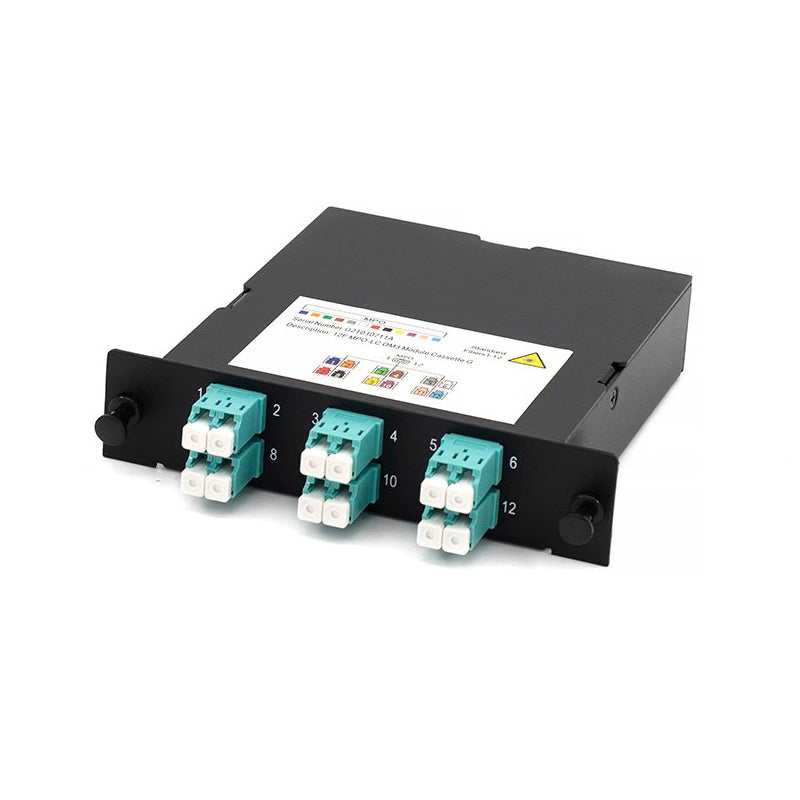

LightOptics manufactures MPO/MTP to LC Fiber Cassette Module 50/125 OM3 Multimode 12 Port.
It features 1 piece of MTP/MPO adapter assembled on the rear & 6 pieces of LC 50/125 OM3 Multimode duplex adapters assembled on the front 1 piece of MTP to LC 12 strand 50/125 OM3 Multimode fiber patch cables accommodated in the cassette to connect adapters on the front and rear.
With fully tested singlemode adapters, MPO to LC,or MTP to LC fiber patch cables loaded,our fiber cassettes provide improved link reliability between MTP/MPO and LC discrete connectors.
Factory assembled MPO or MTP fiber cassettes allow quick installation,improve trouble shooting and reconfiguration during moves, adds and changes to save time and labor cost.
MPO & MTP cassettes available
Standard & elite MPO/MTP connectors for option
12 port fiber cassette module available
LGX standard mounting footprint, good compatibility
A label identifcation system for quick identifcation and exact connection
100% test & inspection reports available foreach module
Standard Method A polarity and custom optical polarity available
Factory terminated fiber trunk cables pre-assembled cassettes,ensure field installation reliability
Plug & play,quick deployment to reduce installation time
Storage Area Network-Fiber Channel
Emerging 40 & 100Gps Protocols
1. Fiber Options:
MMF OM5, MMF OM3/OM4, MMF OM2/OM1, SMF
2. Port & Connector/Adapter Options:
MPO fiber cassette, 6 LC Duplex Adapters, 12P
MPO fiber cassette, 12 LC Duplex Adapters, 24P
MPO fiber cassette, 6 LC Quad Adapters, 24P
MTP fiber cassette, 6 LC Duplex Adapters, 12P
MTP fiber cassette, 12 LC Duplex Adapters, 24P
MTP fiber cassette, 6 LC Quad Adapters, 24P
MPO/MTP fiber cassette, empty
