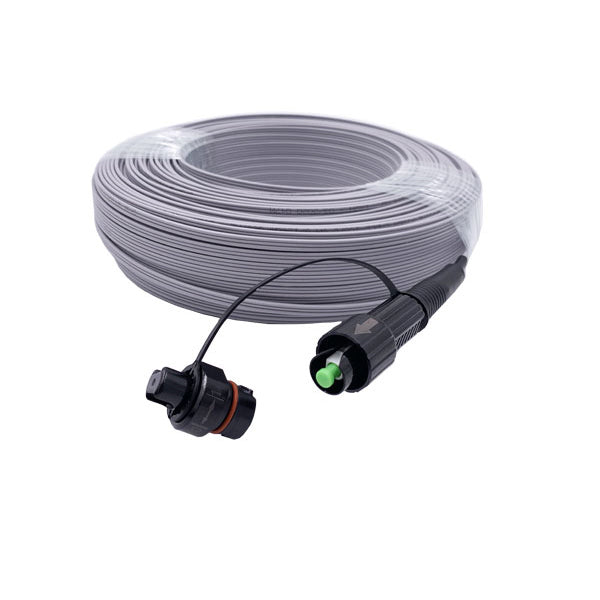

Pre-terminated MiniSC APC Fiber Pigtail w/ 2x5.0mm FTTH Drop Cable Flat

Cable Length :

This pre-terminated fiber pigtail with Huawei MiniSC connector with 2×5.0mm FTTH Drop Cable Flat, which provide easy FTTx (Fiber-To-The-X) installation and FTB or MST box termination using existing hardware and installation methods for drops to homes and businesses.


  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or fastfield installed assemblies
  • Suitable for FTTA and outdoor temperature extremes and ensures functionality in harsh weather environments
  • Can be installs without special tooling
  • Threaded style coupling
  • Provides bend protection for installation and long term use
  • Faster network roll out and customer installations
  • 100% tested assemblies built in a controlled environment
  • Lower cost deployment by utilizing plug and play solutions



Item Technical Parameters
Cable Type Self-supporting drop cable
Cable diameter 2.0*5.0mm flat drop cable
Application Aerial, Direct Buried, Duct
Termination one end (fiber pigtail)
Connector A
Reflectance, Typical -65 dB
Insertion Loss, Typical ≤ 0.15 dB
Connector Type Mini SC connector (APC)
Optical Characteristics
Fiber Type Single-mode
Fiber count 1F
Fiber Category G.652.D
Wavelengths 1310 nm / 1550 nm
Maximum Attenuation 0.35 dB/km / 0.25 dB/km
