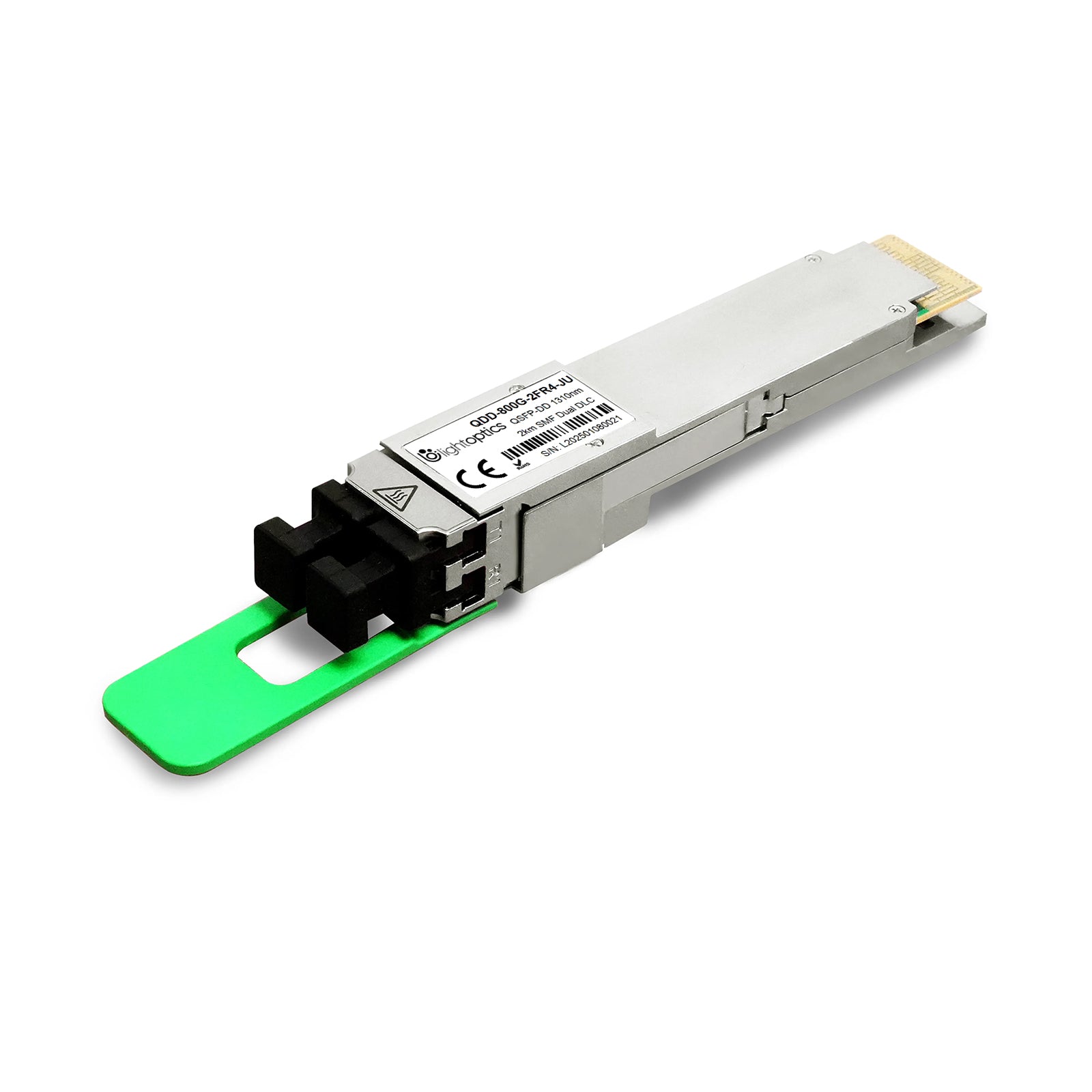

Juniper QDD-2X400G-FR4-P Compatible 800G 2xFR4 QSFP-DD PAM4 1310nm 2km Dual Duplex LC/UPC SMF Transceiver
Juniper Networks QDD-2X400G-FR4-P Compatible 800GBASE 2 x FR4 QSFP-DD PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF Transceiver
The 800GBASE 2x FR4 QSFP-DD transceiver is designed for 800GBASE Ethernet throughput up to 2km link lengths over OS2 single-mode fiber (SMF) via dual duplex LC/UPC connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

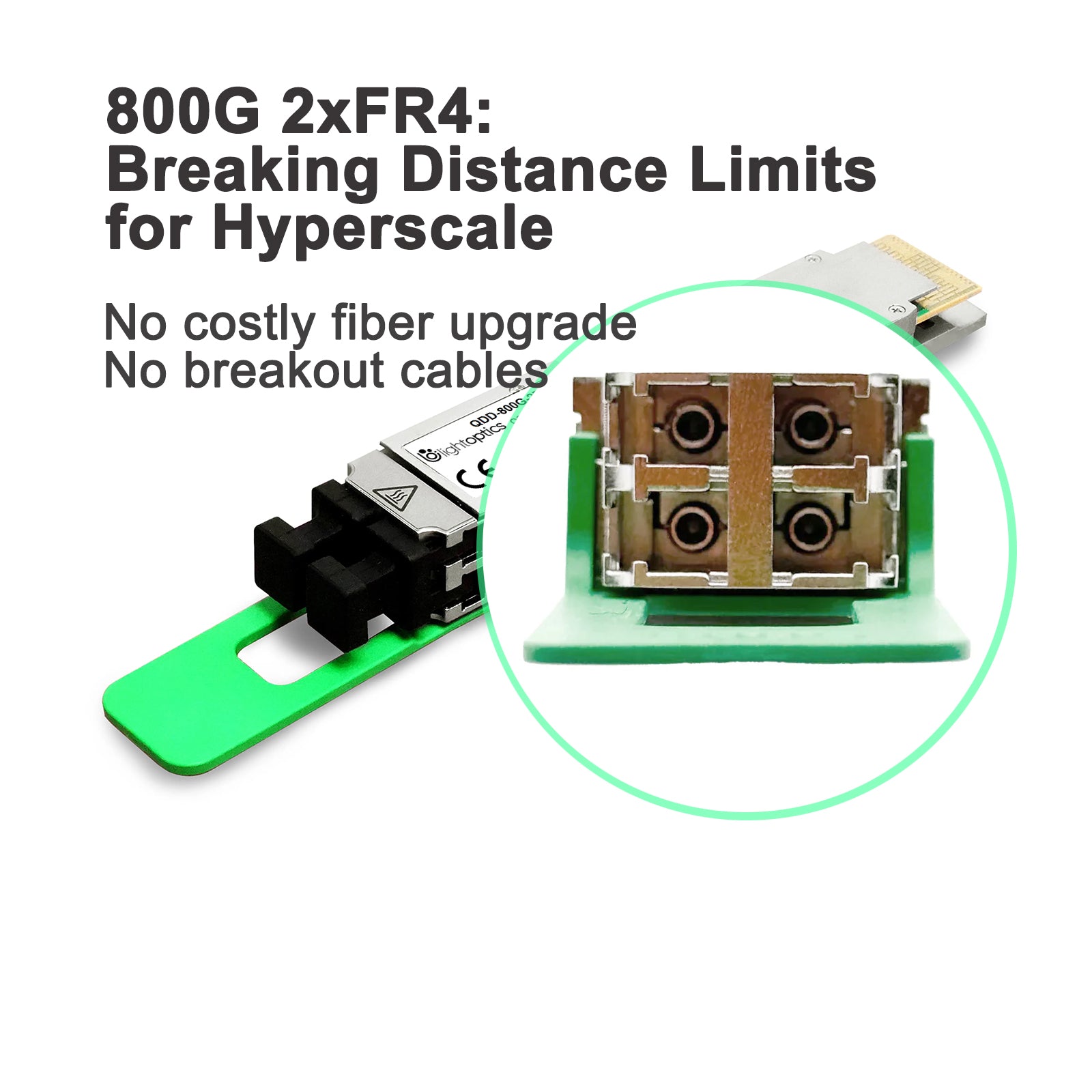

This module has 2 duplex LC connectors, supports 2x 400G FR4 breakout applications. It can also be configured at half speed for 2x 200G (4x 50G PAM4). Featured with low latency, low power, and reliability, the product is suitable for 800G Ethernet, Data Center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
Product Specification
| Juniper Compatible | QDD-2X400G-FR4-P | Vendor Name | LightOptics® |
| Form Factor | QSFP-DD | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm and 1331nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Dual Duplex LC/UPC |
Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -3.2~4.4dBm | Minimum Receiver Power | -7.2dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 17W |
| Protocols | IEEE 802.3cu-2021, IEEE 802.3ck-2022, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0 | Application | 800GBASE-2xFR4; Data centers networks |
