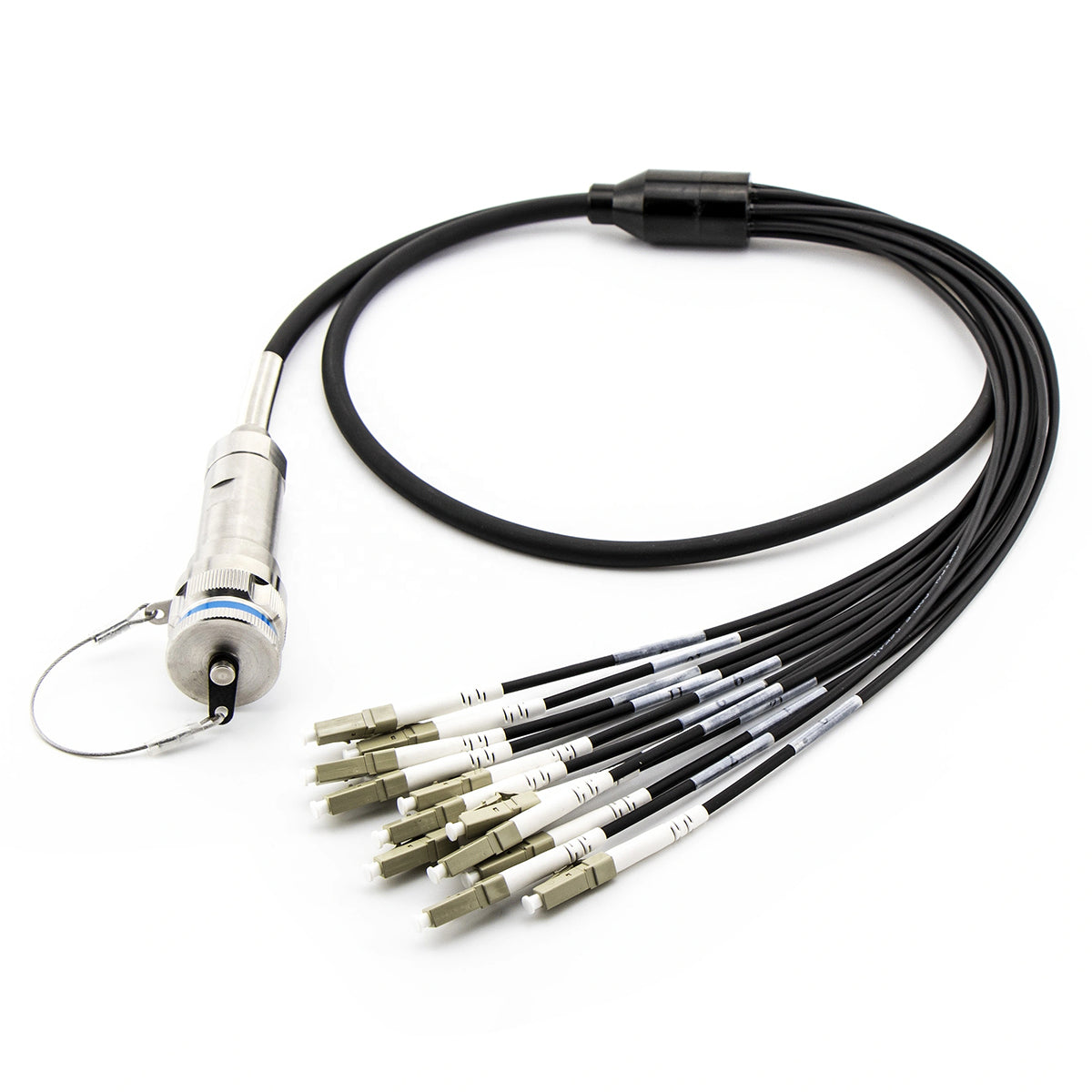

J599 to 12xLC/UPC Ruggedised Tactical Outdoor 12-Fiber Singlemode Cable
J599 to 12xLC/UPC Ruggedised Tactical Outdoor 12-Fiber Singlemode Cable, Plug Socket Wire Connector
The J599 outdoor waterproof fiber optic connector features three threaded quick connections and is designed with five keys for positioning, including blind-mating, anti-corrosion, and anti-vibration functions. It is constructed from 316L stainless steel, which can be highly reliable to resist dust, water and anticorrosion, it is mainly used in harsh environment such as marine telecommunication and military telecom where are with Acid, alkali, moisture.
Features
- Comply with J599A (MIL-DTL-38999)Ill standard
- Square plate and nut fastening socket optional
- Out-shell material, size, color support customized
- J599 to J599/FC/ST/SC/LC/MPO/MTP fiber optical cable available
- Five-button positioning for blind insertion and wrongly plugging can be avoided
- Ceramic pins and ceramic sleeves to achieve precise optical fiber docking
Applications
- WiMAX and LTE Base Stations
- Remote Radio Heads (RRH)
- Industrial outdoor applications
- Power Systems
- Mining
- Airborne communication
- Marine telecommunication
Create a 12-core Ruggedised Tactical Outdoor network
Product Specifications
Connector A | J599-12Fiber | Connector B | 12xLC/UPC |
Fiber Type | 12 fibers Singlemode | Wavelength | 1310/1550 nm |
Cable Diameter | 5mm | Contact Resistance | <10MΩ |
IP Rating | Waterproof IP67 | Insertion Loss | SM<1.0dB; MM<0.6dB |
Mechanical | Plug<500N(Main Cable); Socket<30N(Branch Cable) | Insulation Resistance | 500VDC ≥5000MΩ(normal environment) |
