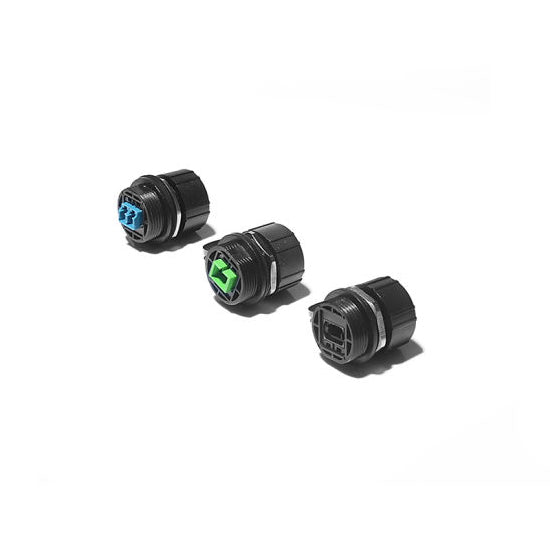

IP68 ODVA-LC/SC/MPO Duplex/Simplex Fiber Adapter

Optical Connector ODVA SC IP68 Protection Waterproof Outdoor

ODVA Connectors are designed to exceed the requirements of ODVA. The connectors meet IP68 environmental sealing ratings and are the ideal choice for a low cost, easy to use solution in Industrial, Fiber to the Antenna (FTTA), or any other harsh environmental applications. Our offering includes SC/Simplex (1-fiber), LC/Duplex (2-fiber) and MPO male or female (1 to 12-fibers).

The ODVA-SC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The ODVA-SC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68. They are well suited for Industrial and Aerospace and Defense.

Features:

Single fiber, ODVA SC based connector;
Bird proof and rodent resistant;
IP68 water and dust protection;
Low profile in-line receptacle available;
No installation tools required;
100 minimum mating cycles;
In-line connection available;
Operating temperature: -40° to 85°C;
Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm;

Applications:

1,Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

2,Automation and Industrial Cabling
ODC provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.

3,Surveillance Systems
Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.

4,Naval and Ship Building
The high corrosion resistance convinced both naval and civil ship builders to use ODC assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

5,Broadcast
offers a range of mobile cabling systems and ODC assemblies for temporary cable installations required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.

6,Military Communications
The cable will be replayed frequently. When prospecting or military communication. Normal connector and cable can’t stand frequently and high strength pulling and reuse. Inside of the box. . High strength material and interface design make sure it work abnormally when suffer shocks.
