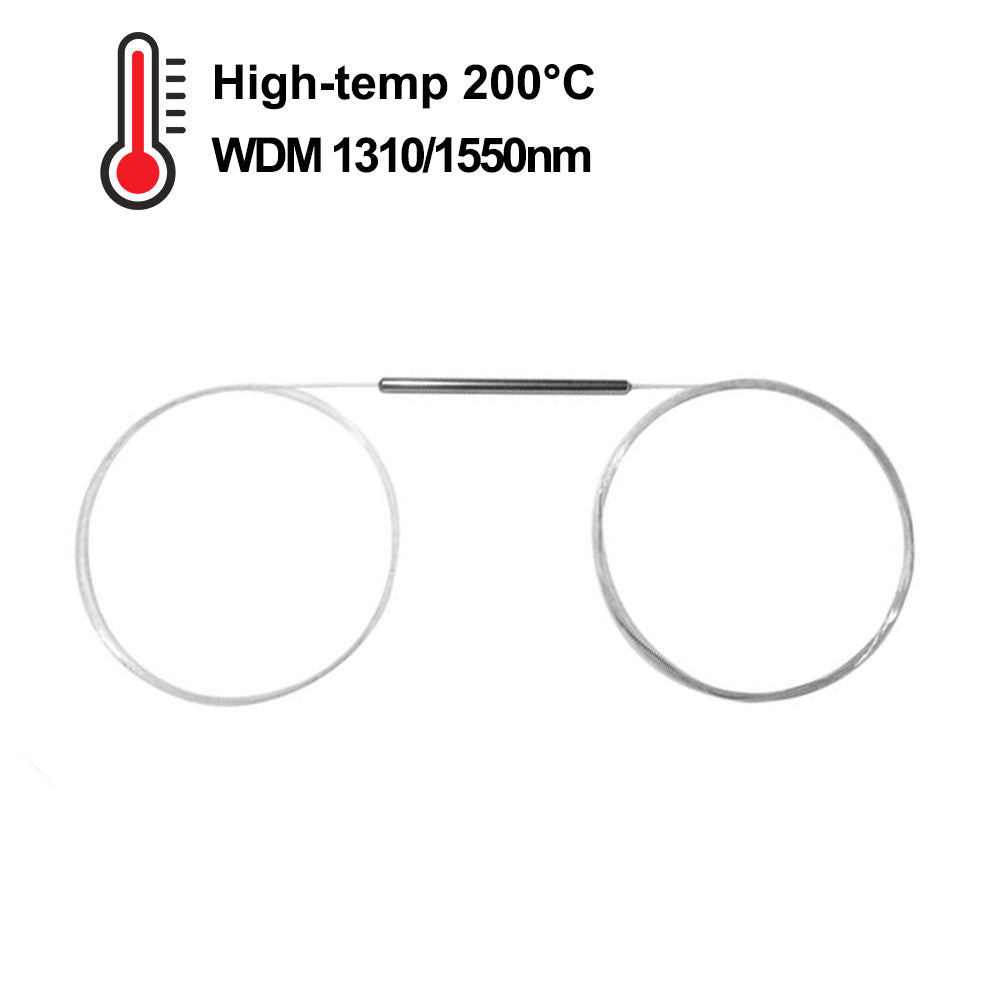

High Temperature 200°C WDM 1310/1550nm Single-mode FWDM Coupler
1x2 High Temperature 200°C WDM 1310/1550nm Single-mode FWDM Coupler
WDM - Wavelength Division Multiplexing, a technology that simultaneously transmits multiple channels (wavelength) through a single optical fiber.
LightOptics®1310/1550nm fused single-mode wavelength division multiplexers are manufactured using the proven technology to support high sustained temperature up to 200°C, this device is ideal for combining or separating optical signals in the 1310 and 1550nm bands.
Specifications
| Specifications | 1310/1550nm | ||||
| Parameter | Unit | Premium | A grade | ||
| Shorter Wavelength Channel | nm | 1310±15 | |||
| Insertion Loss | Max | dB | 0.3 | 0.5 | |
| PDL | Max. | dB | 0.1 | 0.15 | |
| lsolation @1550±15 nm | Min. | dB | 17 | 15 | |
| Longer Wavelength Channel | nm | 1550±15 | |||
| Insertion Loss | Max. | dB | 0.3 | 0.5 | |
| PDL | Max | dB | 0.1 | 0.15 | |
| lsolation @1310±15 nm | Min. | dB | 17 | 15 | |
| Operating power | Max. | W | 5 | ||
| Fiber Type | High Temperature SMF | ||||
| Operating Temperature | ℃ | -40 to +200 | |||
| Storage Temperature | ℃ | -50 to +200 | |||
| Package Type | mm | S6 | 3x54:for bare fiber | ||
| Operating Temperature | ℃ | +200 to +300 | |||
| Storage Temperature | ℃ | +200 to +300 | |||
