Dual GPON/XGS-PON/NG-PON2/CATV/OTDR Coexistence Wavelength Division Multiplexer

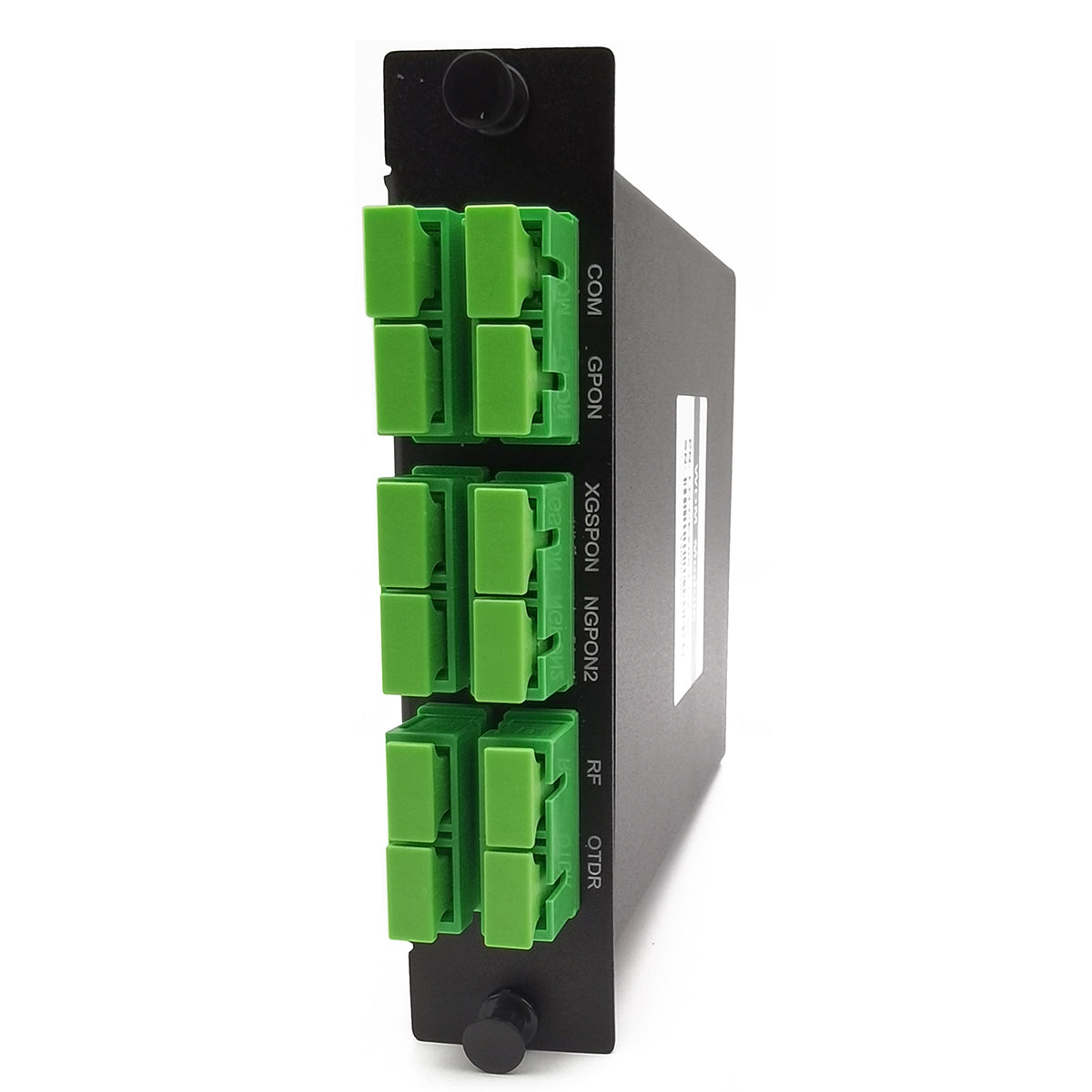

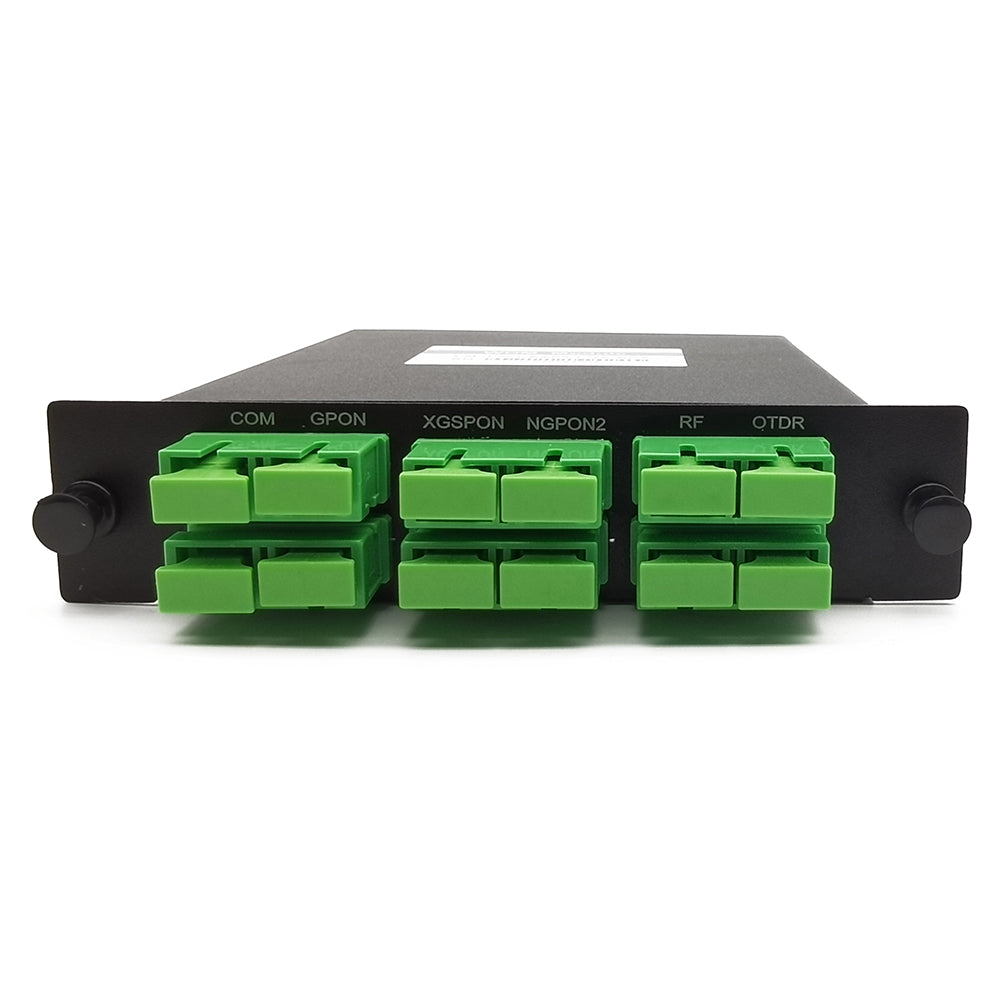

2x GPON/XGS-PON/NG-PON2/CATV/OTDR Coexistence Wavelength Division Multiplexer  in One LGX Box, SC/APC connectors

The GPON is an intermediate device for PON evolution. Our CEx WDM modules adopts TFF technology and can coexist GPON, XG(S)-PON, NG-PON2 and OTDR, CATV signals in the same network environment. GPON and XG(S)-PON allow GPON and XG(S)-PON to coexist in the existing network without affecting existing services, and realize smooth evolution from GPON to XG(S)-PON, which is stable, reliable and convenient to manage , to meet the service rate upgrade requirements. At the same time, the broadband working range of 1260-1660nm provides support conditions for the evolution of PON.

LightOptics’s LGX CEx WDM modules are tested to IEC 61300-2-1, -9, -21, -22, -26 and GR-1209 requirements. And our CEx WDM products are tested to GR-63 requirements.

Wavelength of the Coexistence Elemet (CEx) Multiplexer

Networks/Services Wavelengths (nm)
GPON/25G 1290 – 1500nm
XGS-PON 1260 - 1280nm & 1575 – 1581nm
NG-PON2 1524-1544nm & 1596-1603nm
CATV/RF Video Band 1550 - 1560nm
OTDR Monitor Band 1625-1675nm



Operating Wavelength 1260~1660nm Vendor Name LightOptics
Insertion Loss GPON ≤0.8dB
XG(S)-PON ≤1.1dB
NG-PON2 ≤1.4dB
CATV ≤1.7dB
OTDR ≤2.0dB
Isolation GPON ≥30dB
XG(S)-PON ≥30dB
NG-PON2 ≥30dB
CATV ≥30dB
OTDR ≥15dB
Passband Ripple ≤ 0.3dB Polarization Dependent Loss ≤ 0.2dB
Return Loss ≥ 45dB Directivity ≥ 50dB
Power Handling ≤ 500mW Polarization Mode Dispersion ≤ 0.2ps
Connectors SC/APC
Temperature Range  -10 to 70°C (14 to 158°F)


 Dimensions (Standard 118 footprint LGX Box)
