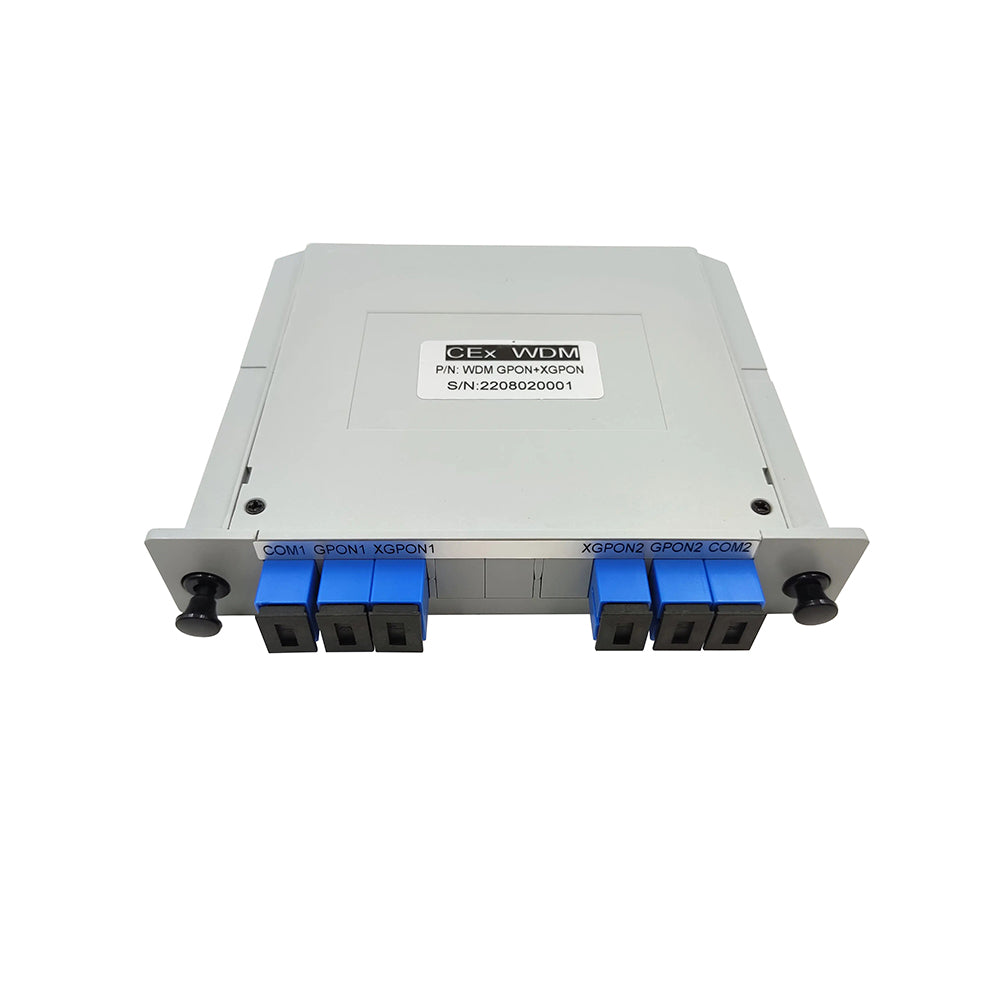

2x GPON & XGS-PON Combiner Coexistence CEx WDM Module SC/UPC


2x GPON & XGS-PON Combiner Coexistence CEx WDM Module SC/UPC

LightOptics’s passive optical CoExistence Element (CEx) WDM modules support your migration to next-generation PON (XGS-PON or NG-PON2) services while controlling costs. Our portfolio of coexistence (CEx) modules are integrated into the network near the optical line terminal (OLT), enabling existing PON services to coexist with XGS-PON, NG-PON2, RF video, optical time domain reflectometer (OTDR), as well as other current and future technologies. The GPON port passband, 1290-1500nm, allows for future 25G/50G services. The purpose of an upgrade port is to be able to add services not already in use, i.e. XGS-PON, RF-Video, NG-PON2, OTDR.

GPON Passband Channel Wavelengths: 1290nm – 1330nm, 1480nm – 1500nm
XGS-PON Passband Channel Wavelengths: 1260nm – 1280nm, 1575nm – 1580nm


Operating Wavelength 1260~1660nm Vendor Name LightOptics
Insertion Loss GPON ≤0.8dB
XG(S)-PON ≤1.1dB
Isolation GPON ≥30dB
XG(S)-PON ≥30dB
Passband Ripple ≤ 0.3dB Polarization Dependent Loss ≤ 0.2dB
Return Loss ≥ 45dB Directivity ≥ 50dB
Power Handling ≤ 500mW Polarization Mode Dispersion ≤ 0.2ps
Connectors SC/UPC
Temperature Range  -10 to 70°C (14 to 158°F)
