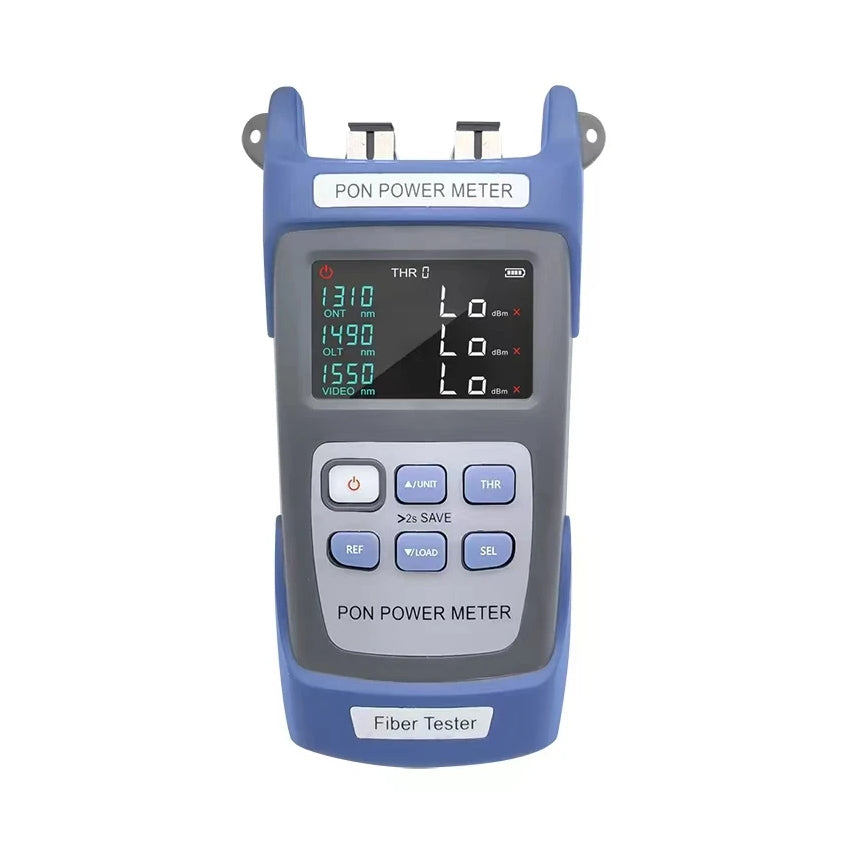

Handheld Fiber Optical PON Power Meter FTTX/ONT/OLT 1310/1490/1550nm OPM Tester
The optical power meter is a passive optical network (PON) power meter, which enables the user to quickly validate PON network installations. This compact test equipment is able to measure all three EPON wavelengths ( 1310 nm, 1490 nm, 1550 nm ) simultaneously, with user defined pass/ fail thresholds to simplifyinterpretation. And the results can be downloaded to a PC for further analysis.
Features
- The meter test threshold can be set through the management software
- Automatic shutdown (can be cancelled)
- Users can test 1310nm/1490nm/1550nm in the PON network at the same time
- The instrument provides five sets of thresholds to choose from, with pass, warning, and fail modes
- Simultaneously measure and display different PON architectures, data and video signals
- Manual calibration
Specifications
| Measuring wavelength | 1310nm | 1490nm | 1550nm |
| Sensor Type | InGaAS | ||
| Linearity | ±0.2dB@1550nm≥-40dBm | ||
| Isolation | 1490nm Wavelength＞40dB | 1310nm Wavelength＞40dB | 1310nm Wavelength＞40dB |
| With filtering function | 1550nm Wavelength＞40dB | 1550nm Wavelength＞30dB | 1490nm Wavelength＞30dB |
| Testing range | -40dBm～+16dBm | -50dBm～+16dBm | -50dBm～+23dBm |
| Insertion loss in penetration mode (dB) | Less than 1.5dB | ||
| Measurable optical frequency broadband | 1260～1360 | 1480～1500 | 1539～1565 |
| Inherent uncertainty | 0.5dB±1nW@1550nm | ||
| Display resolution | 0.01dB | ||
| Threshold setting | 5 groups are set by the host computer | ||
| Calibration wavelength | 1310nm/1490nm/1550nm | ||
| Data storage | 900 groups | ||
| Operating temperature | -10℃～+50℃ | ||
| Relative humidity | 0%～95%RH | ||
| Interface type | SC/UPC(Other types can be customized） | ||
| Power supply | 3 AA batteries | ||
