Flex Angle Boot 12 Fibers MPO/MTP Multimode OM3 Fiber Optical Cable Type-A Polarity
Flex Angle Boot 12 Fibers MPO/MTP Multimode OM3 Fiber Optical Cable Type-A Polarity
MPO stands for Multi-Fiber Push On. This connector is commonly used to terminate multi-fiber ribbon connections in indoor environments. MTP is a registered trademark of an MPO connector manufactured by US Conec. MPO/MTP trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles and it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection.
Please note: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

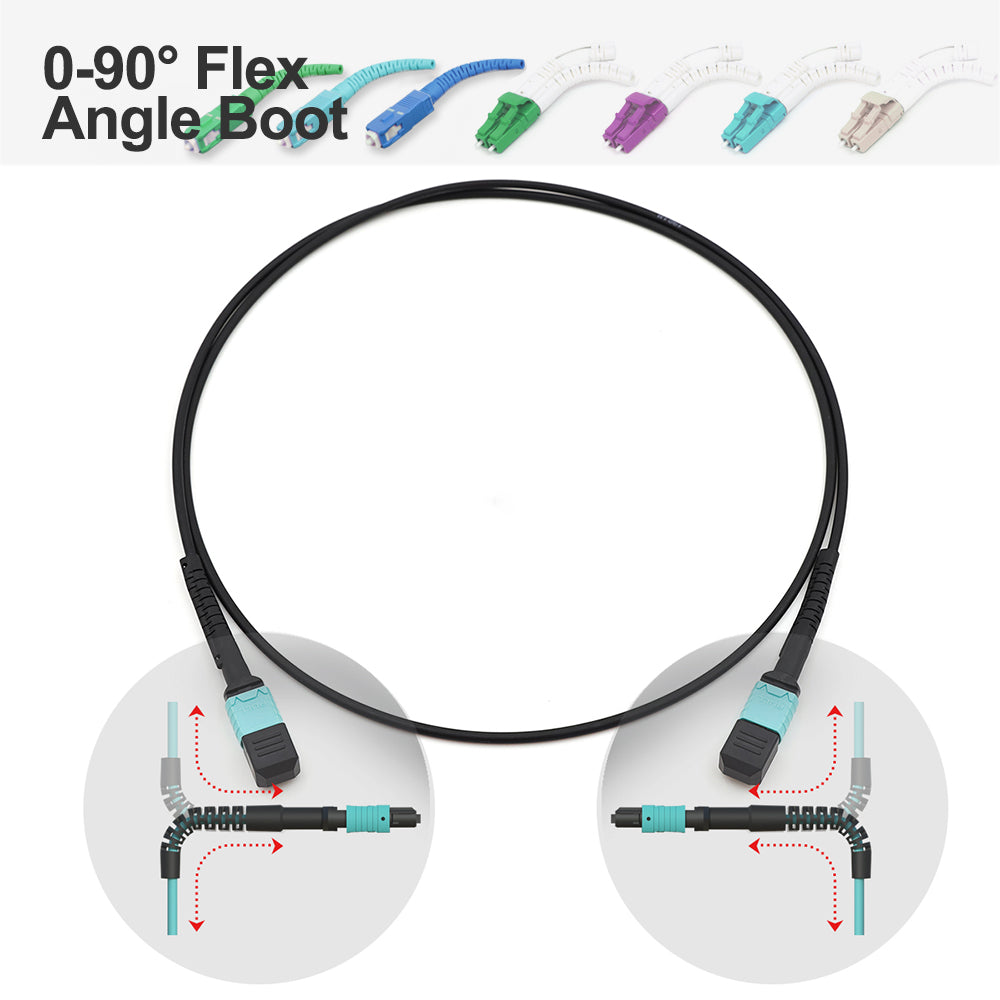

Why choose Flex Angle Boot MPO/MTP cables
Flex Angle Boot MPO/MTP makes cable management solved effectively with MPO/MTP flexible strain relief boots offering tight bend radius and custom cable exit paths in rack-to-rack applications. This Flex Angle Boot MPO/MTP cables feature flexible bend limiting boots which allow cable exits in varying positions from straight to a 90 degree angle. Our Flex Angle Boot MPO/MTP is available in 12- and 24-fiber round cable options, and it is compatible with any MPO receptacle or active QSFP, QSFP28, QSFP-DD, OSFP, CXP and CFP modules. Singlemode and multimode cables provide options for transmission link distances using OM3, OM4, OS1 and OS2 fibers. MPO/MTP Flex Angle Boot cables have been mechanically tested to GR-1435, ISSUE 2 specification to ensure product performance over 25 bends in various positions.
Product Specifications
| Connector A | MPO/MTP | Connector B | MPO/MTP |
| Fiber Mode | 12 fibers OM3 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 100 m at 850 nm | 10G Ethernet Distance | 300 m at 850 nm |
| Multi Mode Class | OM3 | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 66 N | Long/Short Term Tensile Load | 80 N/240 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
