Customized SC Fiber Optic Reflector for Remote Monitoring of FTTx

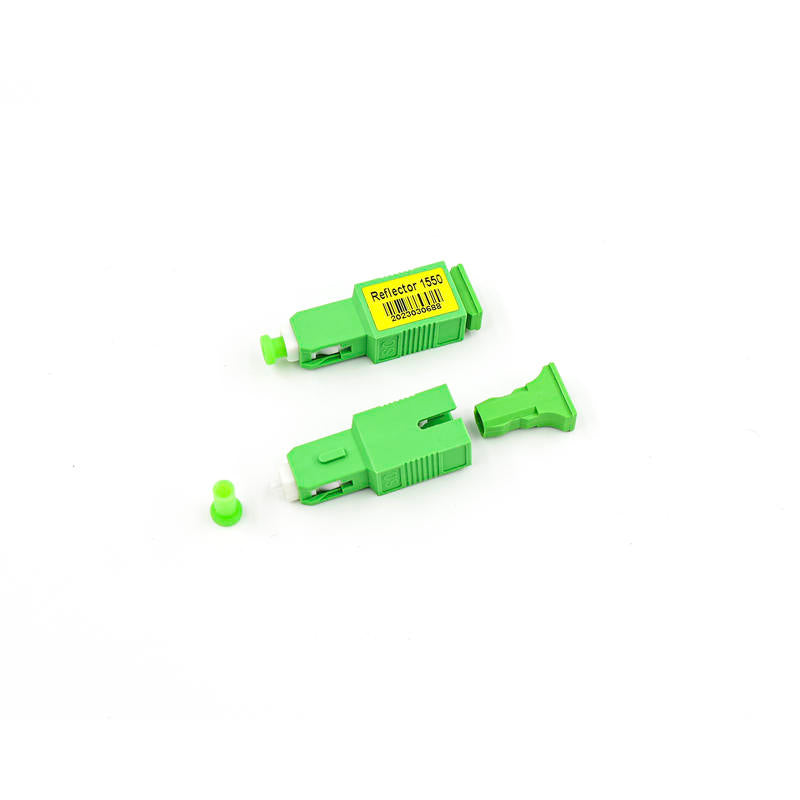

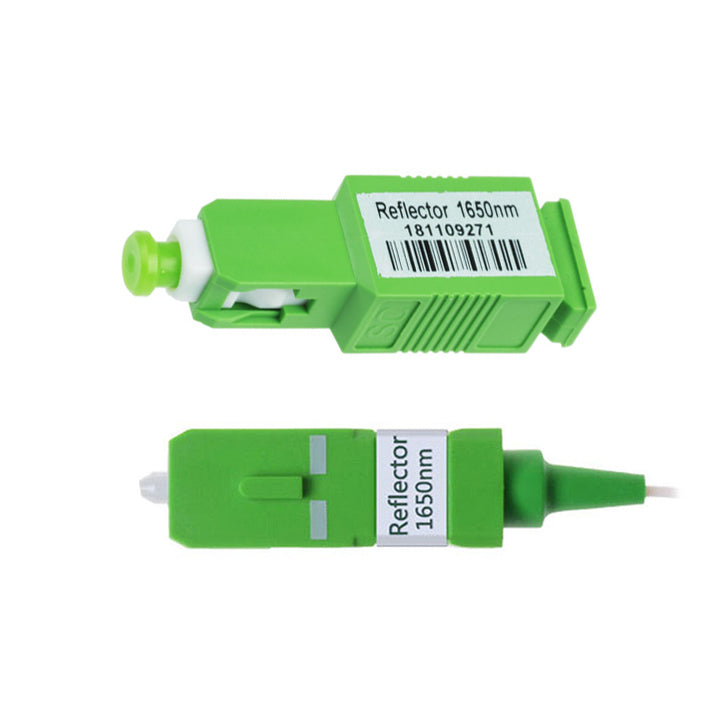

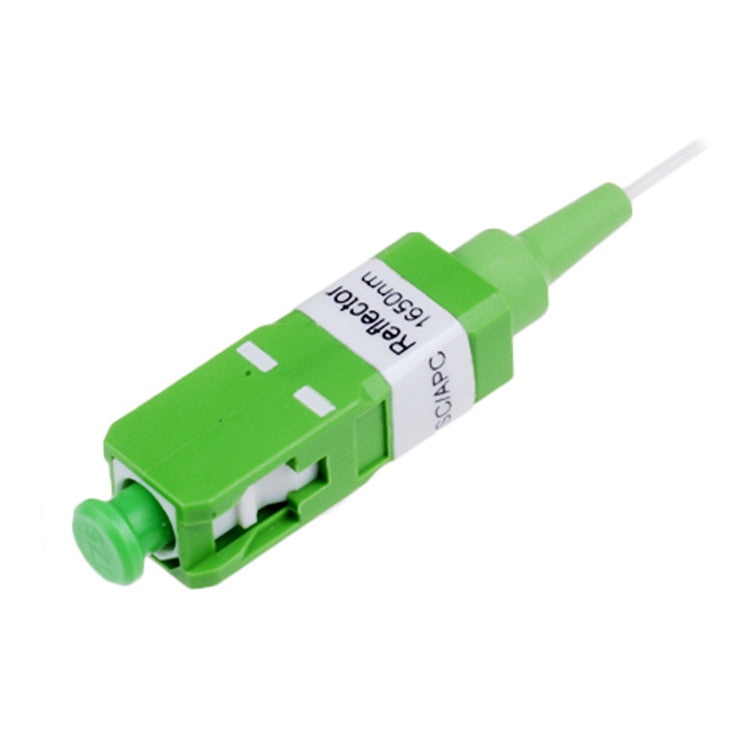

Customized SC/APC FBG Fiber Reflectors, 1650nm, 1625nm, 1550nm or other wavelengths options, Female/Male Adapter type or Fiber Pigtails type options
Optical fiber (FBG) reflector, also known as fiber Bragg grating filter, is usually installed at the front end of an optical network ONU. Combined with OTDR equipment, it can realize optical link point-to-point (PTP) or point-to-multipoint (PTMP) network monitoring, which can be fast,accurately reflect network abnormalities.
Features:
- Standard size, quick installation
- High-precision ceramic ferrules are used to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance
- The optical fiber (FBG) reflector provided by LightOptics satisfies the working environment of -20~70℃, with an average of more than 500~1000 plug-in tests, stable performance and reliable quality
Applications:
- FTTX
- Data center
- OTDR test
| Parameters | Specification | Unit | Index | |||
| Minimum | Typical | Maximum | ||||
| Operating Wavelength | Pass band wavelength | 1260 to 1360 & 1460 to 1581 | nm | |||
| Reflect band wavelength | 1618.5 to 1631.5 | nm | ||||
| Transmission Waveband | Insertion Loss | 1.2 | dB | |||
| Return Loss | ≥18 | dB | @1260 to 1360 | |||
| ≥17 | dB | @1460 to 1581 | ||||
| Reflection Waveband | Insertion Loss | ≤1.0 | db | |||
| Return Loss | ≥17 | dB | ||||
| Connector type (I/O) | SC/APC or LC/APC or customized |
|||||
| Temperature Range |
-40 to +85 | ℃ |
|
|||
| Parameters | Unit | Minimum | Typical | Maximum |
| Pass band wavelength | nm | 1260 to 1626 | ||
| Reflect band wavelength | nm | 1644.5 to 1655.5 | ||
| IL: 1260nm to 1360nm | dB | 1.4 | ||
| IL: 1460nm to 1600nm | dB | 1.4 | ||
| IL: 1600nm to 1625nm | dB | 2 | ||
| IL (Reflect band) | dB | 21 | ||
| RL: 1260nm to 1360nm | dB | 35 | ||
| RL: 1460nm to 1580nm | dB | 35 | ||
| RL: 1580nm to 1620nm | dB | 30 | ||
| RL: 1610nm to 1620nm | dB | 30 | ||
| RL: 1620nm to 1625nm | dB | 20 | ||
| RL (Reflect band) | dB | 0 | 1 | |
| PDL: 1260nm to 1600nm | dB | 0.4 | ||
| Ripple (Reflect band) | dB | 0.6 | ||
| Max optical power handling | dBm | 27 | ||
| Plug times | 500 | |||
| Connector type (I/O) | SC/APC or LC/APC or customized |
|||
