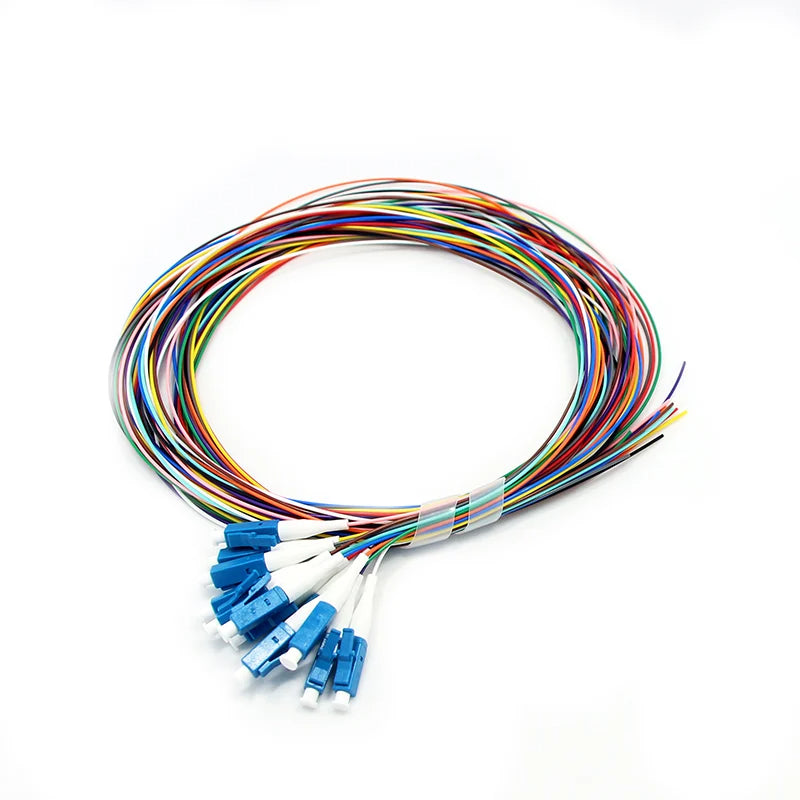

LC/UPC 12 Strand Fiber Optic Color Code Grade B Fiber Optic Pigtail Single Mode (G652D/G657A1/G657A2)

Types :

LC/UPC 12 Strand Fiber Optic Color Code Grade B Fiber Optic Pigtail with Single Mode (G652D/G657A1/G657A2) options

Singlemode 9/125um fiber optic pigtails provide a fast way to make factory terminations in the field. With preterminated SC connectors, and featuring 12 fiber optic color code,  the factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line. Any length, cable jacket & fiber optic connector are available. Each cable is tested individually befor shipping.Find the best solution. Contact us ( for details.

Comparasion about G652.D vs G657.A1 vs G657.A2

G652D and G657A2 specifications refer to the glass and cable construction of optical fibre and are generally the fibres of choice in optical fibre patch leads for singlemode systems.
The G652D fibre mode field diameter is 10.4µm @1550nm. And G652D fibres provide marginally lower loss transmission, which is better in facilitating long distance communication links (up to and greater than 100km). However, G652D fibres have limited bend resistance.
The G657A2 fibres are used in advanced access cable network installation, where higher bend resistance is required for smaller cable jointing pits and also allows for cable and hardware miniaturisation. G657A2 fibres are fully compatible with G652D fibres. The G657A2 fibre mode field diameter is 9.8µm@1550nm. Splice losses are slightly higher when splicing the two different fibres together.
G657A2 fibre have greater resistance to bending (macrobend) losses (see figure below), and facilitating low cost deployment techniques.

Comparasion about G652.D vs G657.A1 vs G657.A2

Therefore, G657A2 optical fibre in patch cords, provide an improved bend radius and flexibility, which may allow for better cable management and routing in congested areas. The improved bend radius, may also allow for increased density in high density patching fields. G657A2 optical fibre is becoming very popular in Data Centre and Enterprise network deployments.

Product Specifications

Connector Type LC/UPC
Fiber Type Singlemode G652D/ G657A1 /G657A2
Configuration 12 strand colored fiber Cable Diameter 0.9mm
Insertion Loss ≤0.2dB Cable Length 1.5m
Return Loss UPC≥50dB /APC≥60dB Attenuation at 1310 nm ≤ 0.35dB/km
Strengthen Member Aramid Yarn Attenuation at 1550 nm ≤ 0.2dB/km
Cable Jacket PVC Operating Temperature -20~70°C
Fire Rating OFNR Storage Temperature -40 to 85°C
