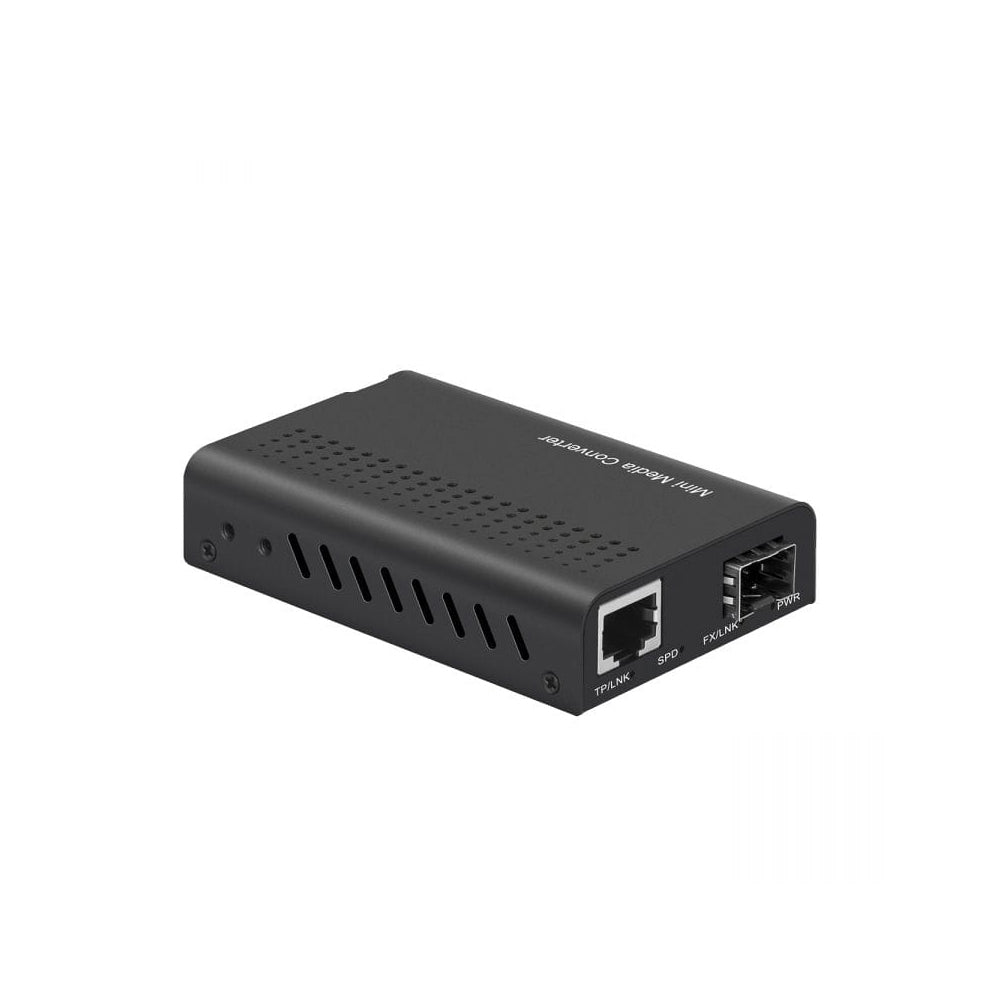

Mini Gigabit Ethernet Media Converter RJ45 to SFP Slot
This RJ45 to SFP Slot Mini Gigabit Ethernet Media Converter is a stand-alone fiber optic media converter that provides cost effective, entry-level media conversion between 1×10/100/1000Base-TX ports and 100/1000Base-FX ports.
With Mini Gigabit Ethernet Media Converter 1x RJ45 to SFP fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. The SFP port supports single mode dual fiber SFP LX, EX, ZX, multimode dual fiber SFP SX optics and single mode single fiber BIDI SFP optics.
We also supply Media Converter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.
SPECIFICATIONS
| Physical Port | |
| Copper Port | 10/100/1000Base-T RJ45 |
| SFP Port | 100/1000BASE-X SFP interfaces |
| Parameters | |
| Ethernet Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic | |
| IEEE 802.3x flow control and back pressure | |
| Packet Length | 9000bytes |
| Transmission Mode | Store and Forward |
| Exchange Property | Delay time: < 7ps |
| Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps | |
| DIP Switches | LFP function:Disable/Enable |
| Fowrward mode:Store and forward/Cut through | |
| Fiber Speed:FX 100M/1000M | |
| LED Indicator | |
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; data exchange-twinkle |
| Fiber | Link/Act: connect-always; data exchange-twinkle |
| Fiber Speed | FX 100M/1000M |
| Power Information | |
| Power Input | Adapter Type: DC 5-12V |
| Power Consumption | Full-load<3W |
| Physical Property | |
| Dimensions | 90mm x 60mm x 20mm |
| Installation Mode | wall-mountable |
| Weight | 130g |
| Working Environment | |
| Operating Temperature | 0°C~50°C |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -10°C~70°C |
| Warranty | |
| MTBF | 50,000 hours |
| Defects Liability Period | 1 year warranty, lifetime technical support |
| Certification Standard | |
| EMC | FCC Part15 Class A |
| CE-EMC/LVD | |
| RoHS | |
| EN61000-4-2 (ESD), EN61000-4-3 (RS) | |
| EN6100044 (EFT), EN6100045 (Surge) | |
| EN61000^1-6 (CS), EN61000-4-8 | |
| EN61000-4-11 | |
