LHD4 24 Fibers LC Adapter Patch Panel, Loaded with 12x LC Multimode OM3 OM4 OM5 Fiber Adapters

Types :

LHD4 24 Fibers LC Adapter Patch Panel, Loaded with 12x LC 50/125um Multimode OM3/OM4 Adapters

LightOptics® LHD4 series High-Density Fiber Adapter Panel is designed specifically for use with LHD4 1U, 2U, 4U rackmount fiber enclosures.

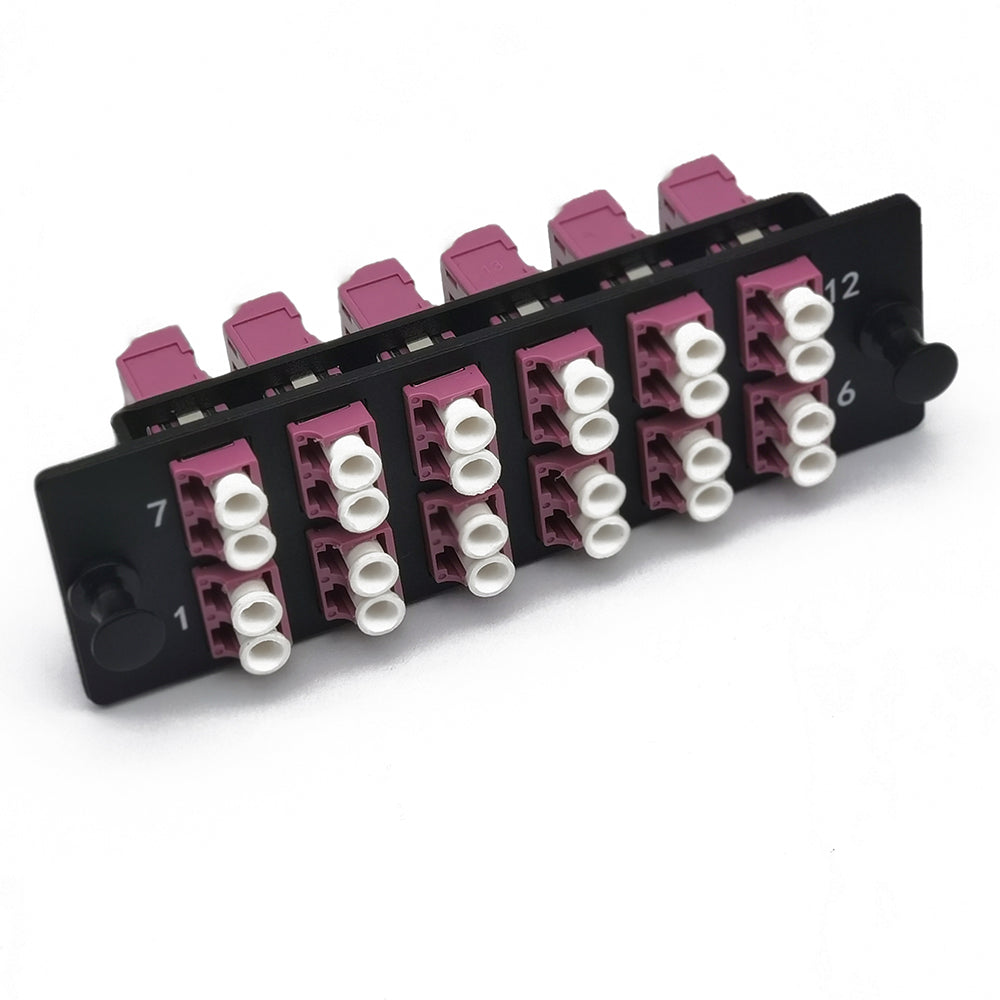

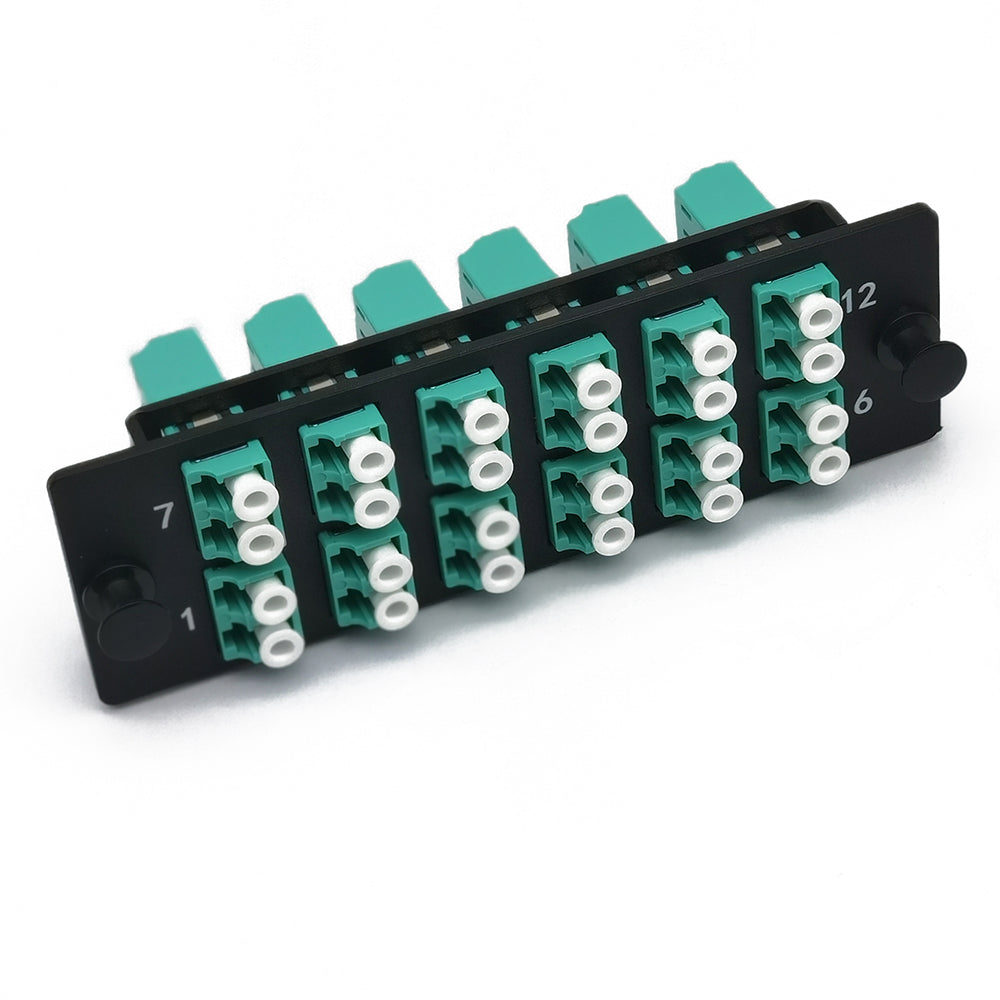

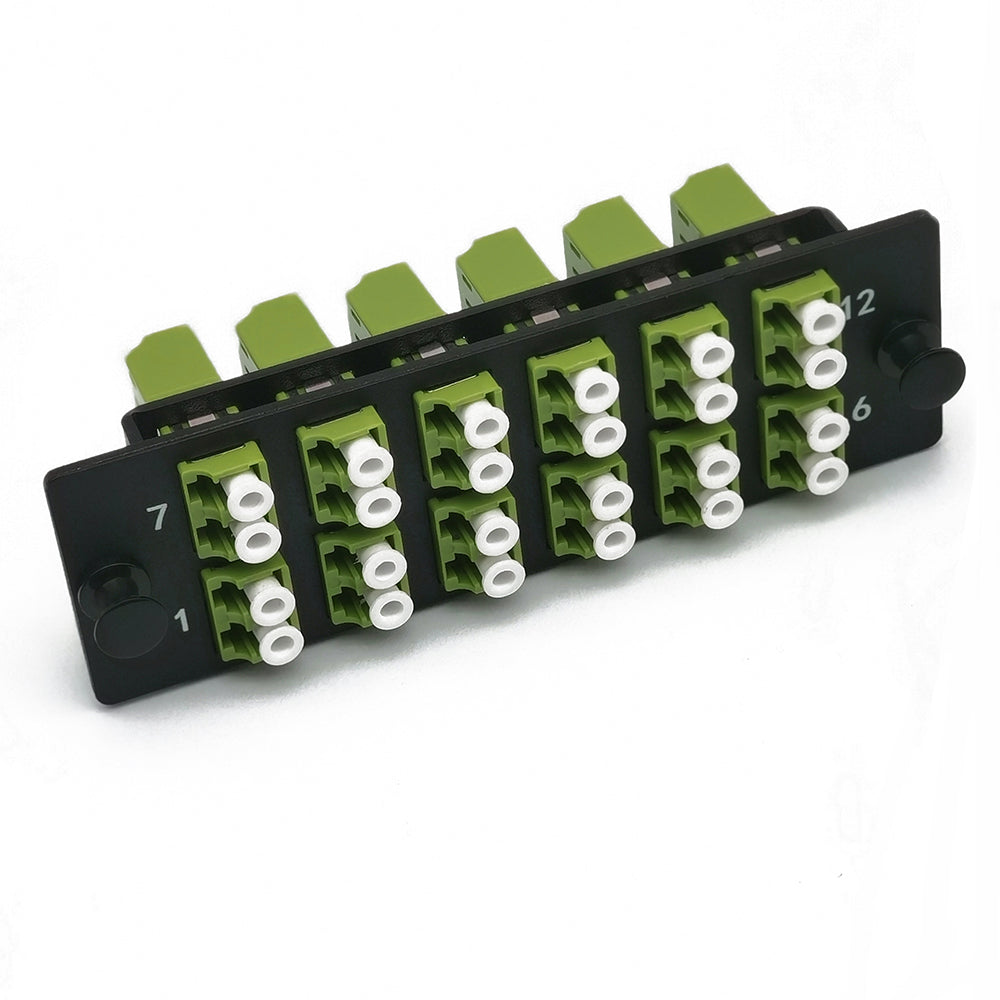

This LC fiber adapter panel is pre-loaded with 12 LC multimode 50/125um OM3/OM4/OM5 connectors that feature ceramic sleeves for precision, alignment, and longevity and using Aqua, Magenta, Lime Green color to identify OM3, OM4 and OM5.

And this LC fiber adapter panel (FAP) comes with snap-latch fasteners for easy installation and removal, just snap the panel into the enclosure with no tools required, which is perfect for fiber infrastructure that requires easier cable management. Moreover, each LC fiber adapter comes with dust caps to protect prevent dust and debris from entering.

Our LHD4 high density fiber adapter plate provides a versatile solution in multiple sizes and styles for small data centers and enterprise applications, and reach up to 96 fibers in 1U LHD4 rackmount enclosures, and 288 fibers in 4U LHD4 rackmount enclosures.


  • 12x LC connectors support a maximum of 24 fiber multimode connection
  • Fit for 1U and 4U LHD4 series fiber enclosure
  • Toolless installation and removal of adapter plates
  • Compact high-density design
  • Dust caps protect unused connectors from debris and damage
  • Meet ANSI/TIA/EIA 568-C standards and RoHS compliant


Number of Adapters 12x LC Duplex 6x SC Duplex 8 or 12
Fiber Count 24 Fibers 12 Fibers /
Fiber Mode Single Mode: OS2 9/125μm Single Mode: OS2 9/125μm Single Mode: OS2 9/125μm
Multimode: OM4/OM3 50/125μm Multimode: OM4/OM3 50/125μm Multimode: OM4/OM3 50/125μm
Adapter Color Blue (SM UPC),
Green (SM APC),
Aqua (Multimode OM3)
Magenta (Multimode OM4)
Blue (SM UPC),
Green (SM APC),
Aqua (Multimode OM3)
Gray (Key up-Key up)
Black (Key up-Key down)
Dimensions (HxW) 1.38”x4.29” (35x109mm) 1.38”x4.29” (35x109mm) 1.38”x4.29” (35x109mm)
Application 4 FAPs fits 1U LHD4 Series Enclosures
12 FAPs fits 4U LHD4 Series Enclosures
4 FAPs fits 1U LHD4 Series Enclosures
12 FAPs fits 4U LHD4 Series Enclosures
4 FAPs fits 1U LHD4 Series Enclosures
12 FAPs fits 4U LHD4 Series Enclosures
