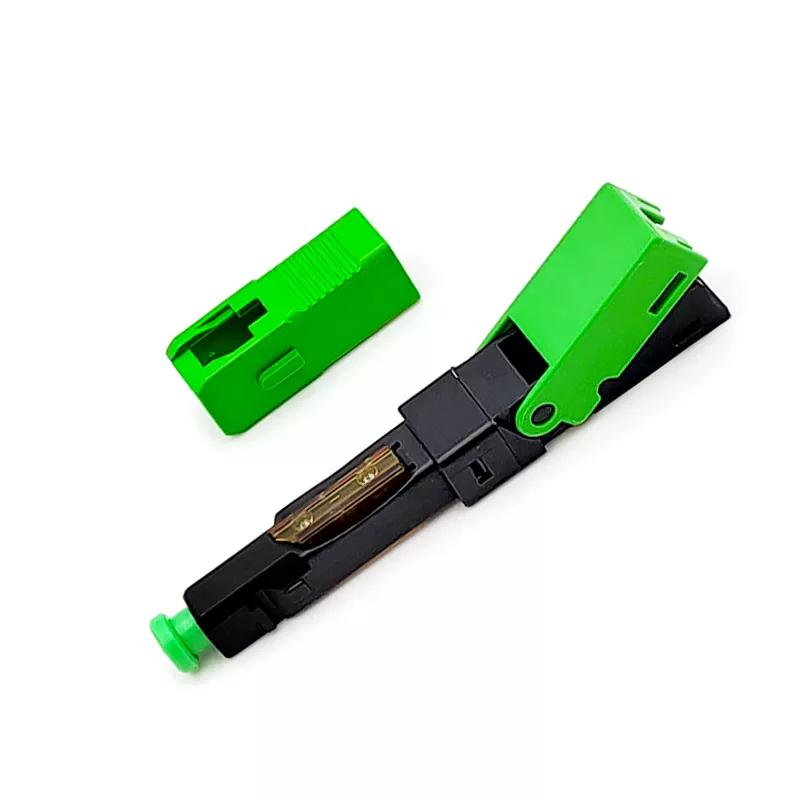

FC-ESC250P SC/APC SM FTTH Fiber Optic Fast Connector
Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device.
No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.
It was designed for fast termination with pre-polished connector. Using V groove technology, it requires no epoxy. With transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for outside plant or inside a building.
Features:
FTTH project usable
Field installable
Insert loss less than 0.3dB
Metal V-shape cavity work well in high and low temperature
Installation less than 1 minute
Reliable and superior optical performance
Application:
Distribution frames
Maintenance or emergency restoration of fiber networks
Patch panels
FTTH Outlets
Field word
Specifications:
| FC-ESC250P | |
| ITEM | Technical Parameters |
| Applicable for | Drop cable / Indoor cable |
| 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable | |
| Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) |
| 125μm ( 657A & 657B ) | |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ≤ 0.3 |
