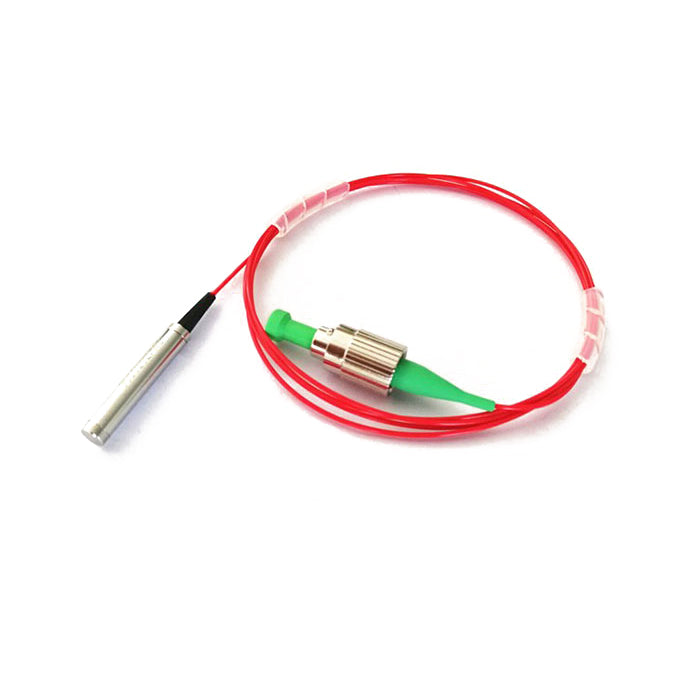

1550nm Polarization Maintaining Faraday Rotator Mirror with PM Panda fiber pigtails
Faraday Rotator Mirrors (FRMs) are used in a number of fiber optic applications, including interferometric sensor systems. In general, FRM performance parameters are specified over a central wavelength and narrow temperature range. This means that the rotation angle will change over wavelength and temperature.
We now offers a compact form factor, broadband Faraday Rotator Mirrors that rotates the light 45 degrees (single pass) over a wavelength range of 1550 nm ± 15 nm, and a temperature range of -5°C to +70°C. With a constant rotation angle within this bandwidth and operating temperature range, the broadband FRM can reduce noise dramatically for interferometric sensor systems.
Standard Specifications (Faraday Rotator Mirror)
Parameter | Condition | Units | Value | ||
Center Wavelength | nm | 633-850 | 980-1064 | 1310-1550 & 1064 | |
Insertion Loss | Typical | dB | 0.8 | 0.8 | 0.6 |
Maximum | dB | 1 | 1 | 0.8 | |
Low Loss (- 60 Loss) | dB | N/A | N/A | 0.6 | |
Return Loss | dB | 40 | 40 | 40, 60 | |
Polarization Extinction Ratio | dB | 20 | 20 | 20, 25, 30 | |
Rotation Angle | At center wavelength | degrees | 45 | ||
Rotation Tolerance | At center wavelength,25°C degrees | ±3 | ±3 | ±3 |
