E2000/APC Singlemode Fixed Fiber Attenuator 1-25dB

$19.80
Attenuation :
$19.80
Tags:

Fiber optic attenuators are devices to reduce the optical fiber power by a certain level within the fiber-optic network. Fiber Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements. This may occur because of a mismatch between the transmitters/receivers (transceivers, media converters), or because the media converters are designed for a much longer distance than for which they are being used. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin.

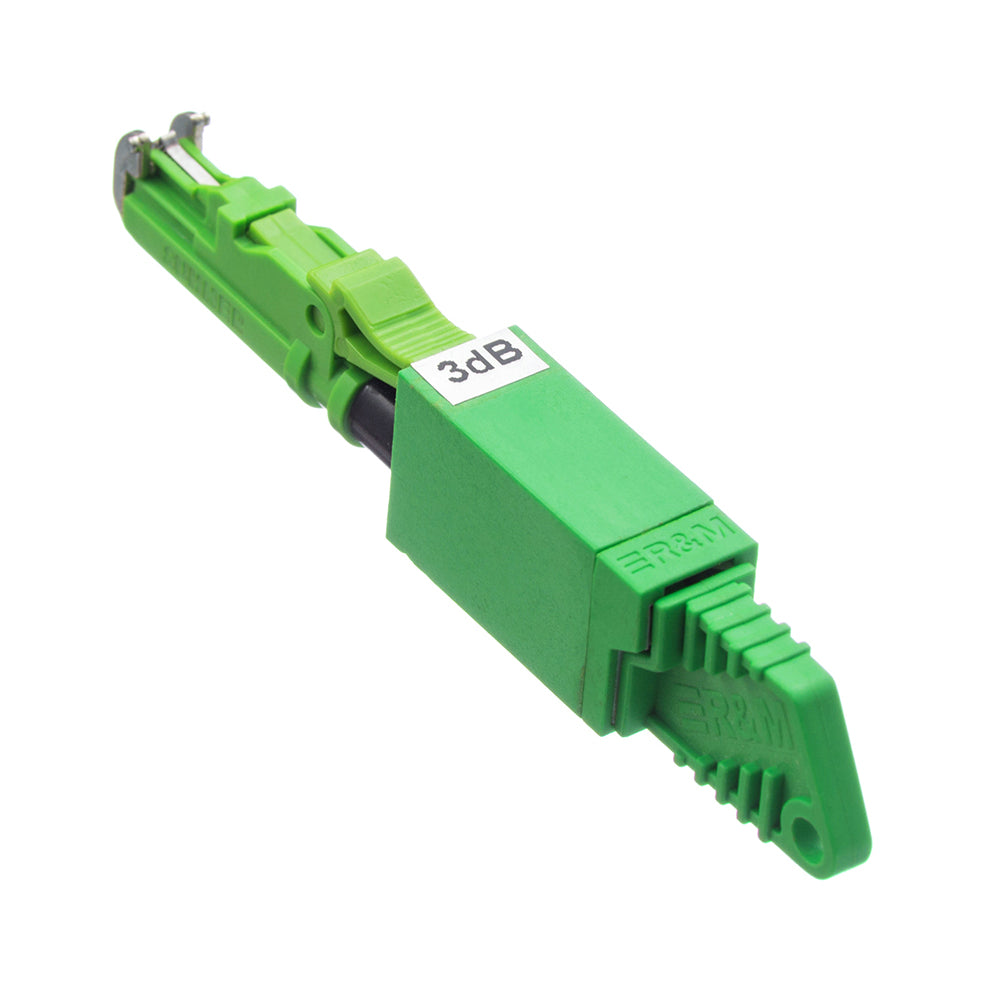

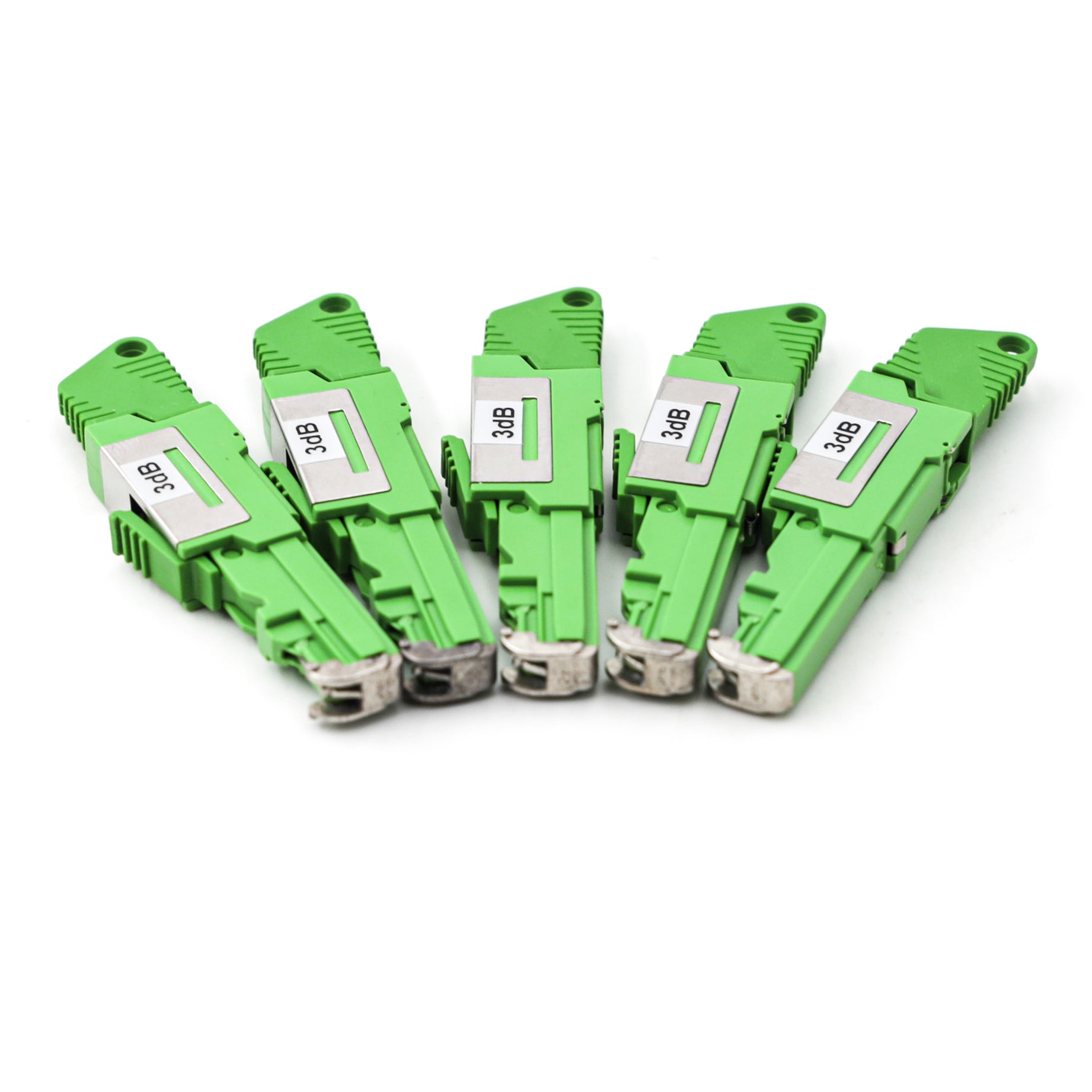

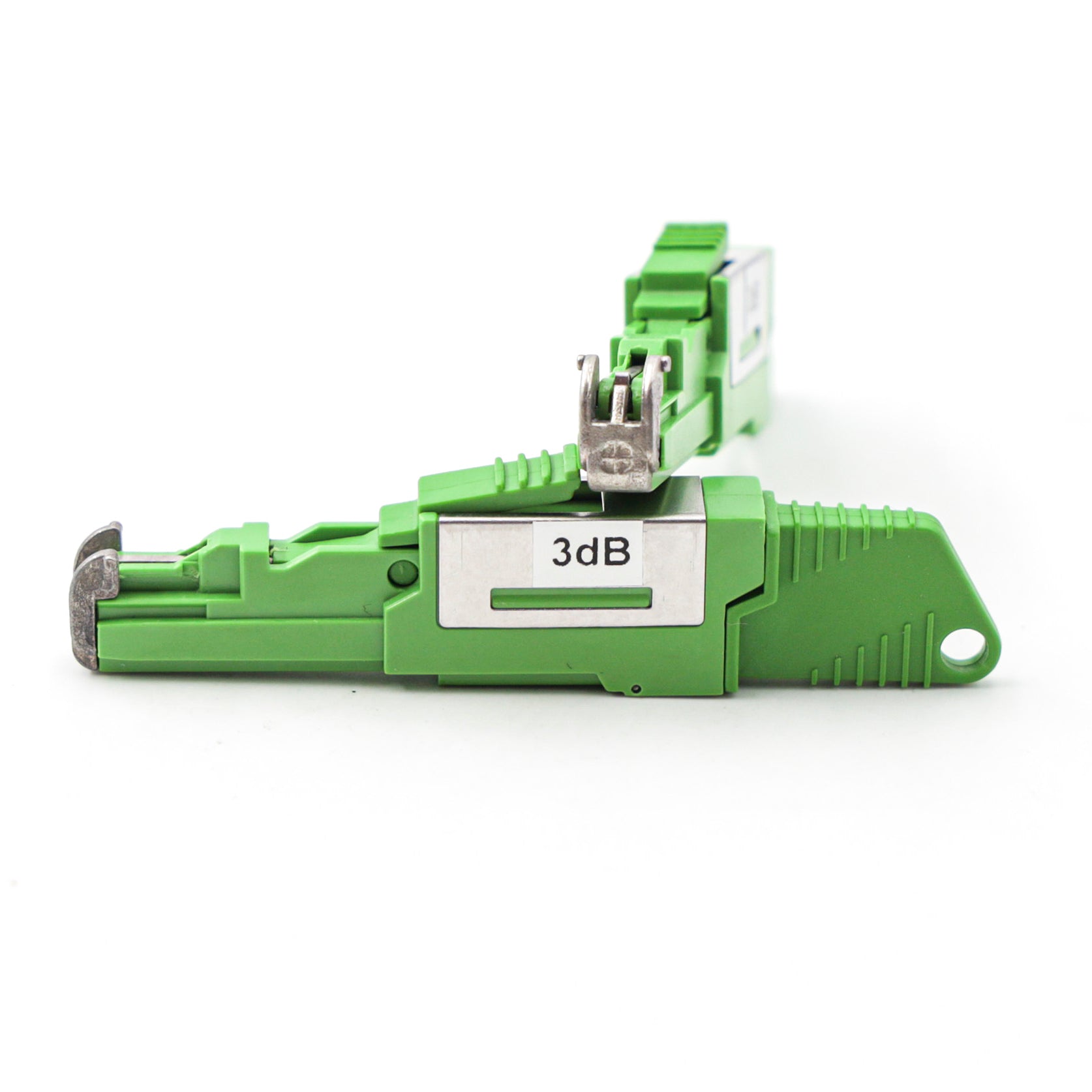

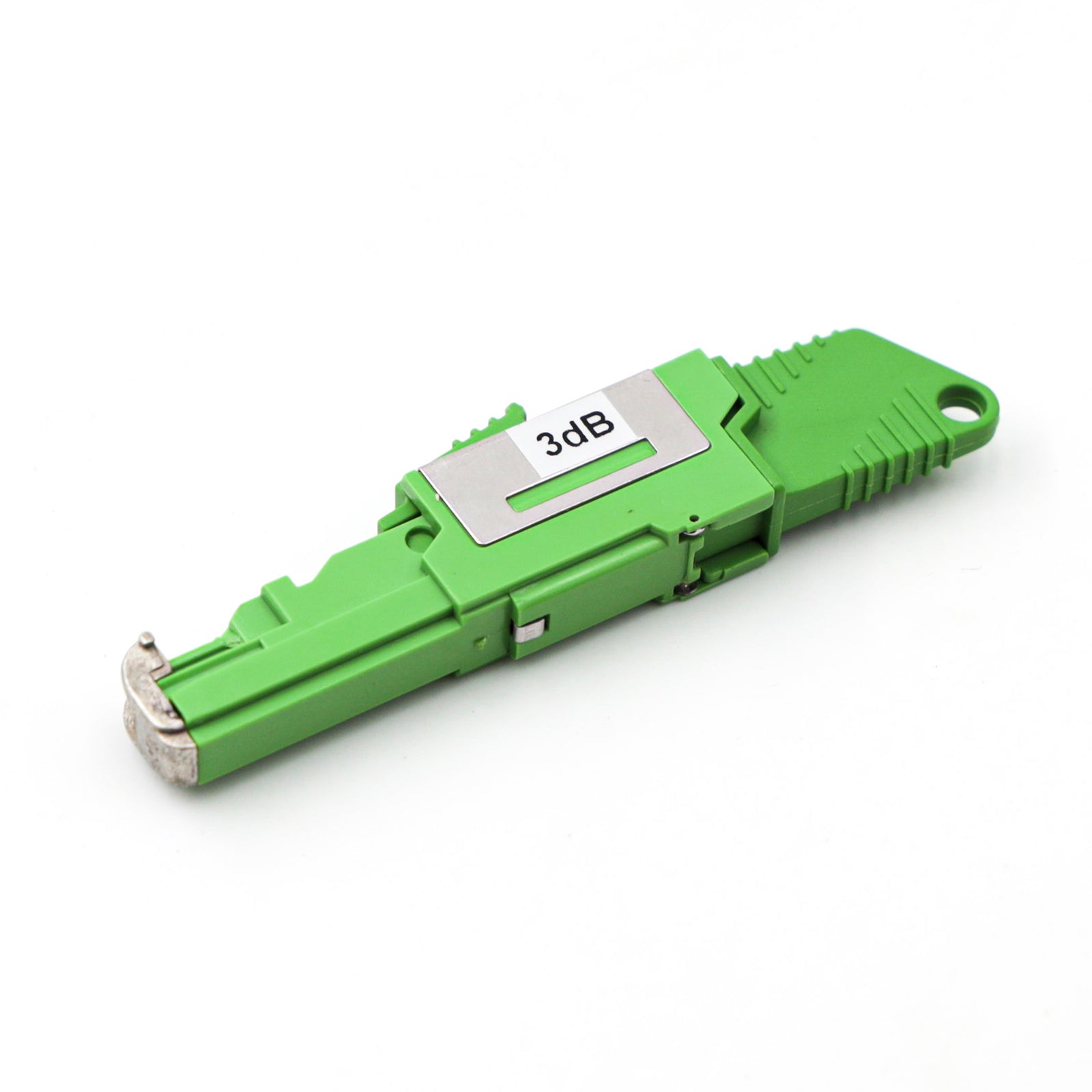

This E2000/APC fiber optic attenuator contains doped fiber and suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 25dB. We have a mature attenuator production process, and can fully meet customer needs. Each E2000/APC optic attenuator is shipped with a test report that makes it easy for customers to check the optical performance quickly.

Features

  • Standard Fixed Attenuation Values of 1dB up to 25dB
  • Applied for CWDM, DWDM, Test Equipment, CATV Systems, Point to Point Systems, etc.
  • Attenuating Material-ion Doped Fiber
  • 1260 to 1620nm Wavelength Singlemode Attenuators
  • Precision Polishing for Reduced Back Reflection
  • High Precision Fiber Optic Ceramic Ferrules
  • Snap in Body for Fast Mating and De-mating

Product Specifications

  Connector Type E2000/APC Attenuation Value 1~25dB
  Fiber Mode Singlemode Operating Wavelength 1260~1610nm
  Insertion Loss ≤0.2dB Return Loss ≥50dB
  Type Female to Male Attenuation Tolerance (1-10dB) ±0.5, (11-25dB) ±10%
  Ferrule Zirconia Ceramic Compliance RoHS compliant
  Applications Optical Telecommunication Network
CATV, LAN, MAN and WAN application
Testing Device Accessory
Fiber optical sensor
Environment Operating: -20°C to 70°C
Storage: -40°C to 85°C
Humidity: 95%RH
