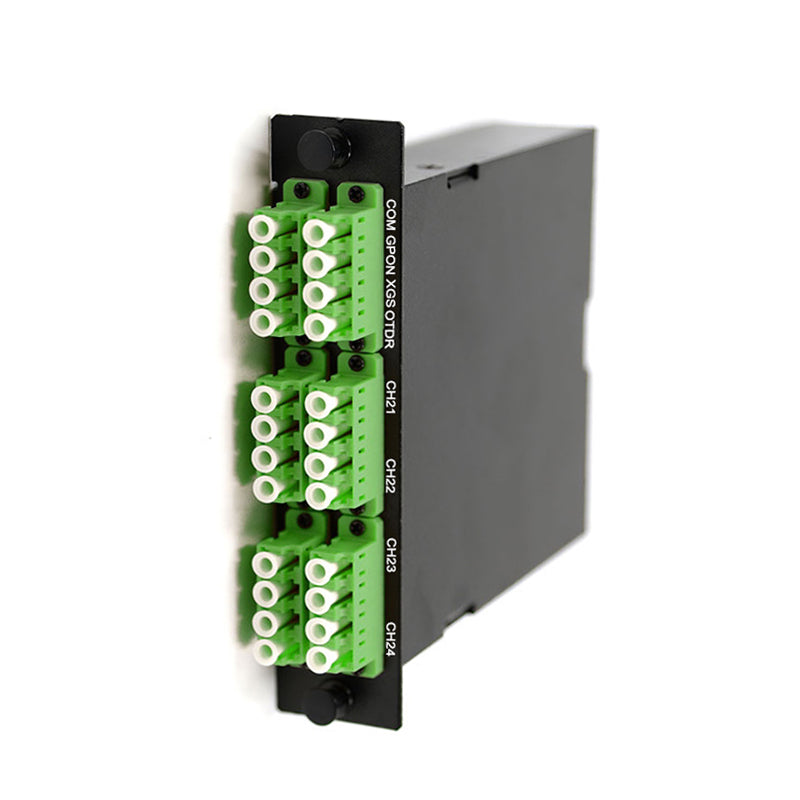

Dual 8 channels DWDM Mux/Demux with GPON/XGS-PON/OTDR ch21-28 LC/APC LGX


2x Co-existence GPON/XGS-PON/OTDR PON WDM module with Dual Fiber DWDM Mux/Demux, 8 Channel ITU CH21-CH28, LC/APC, Industrial Standard LGX Module

Coexistence Element (CEx) is a passive PON WDM modules used to combine GPON with XGS-PON, NG-PON2, OTDR and RF-video/CATV traffic to a single fiber. Upgrading your existing passive optical network (PON) enables increased data speed and the delivery of additional services without fully replacing existing PON infrastructure.

GPON Passband Channel Wavelengths: 1290nm – 1330nm, 1480nm – 1500nm
XGS-PON Passband Channel Wavelengths: 1260nm – 1280nm, 1575nm – 1580nm
OTDR Monitor Passband Channel Wavelengths:1625nm – 1675nm

The 8 channel DWDM Mux Demux allows to organize 8x duplex, protocol independent parallel ITU-T G.694.1 compatible Dense Wavelength Division Multiplex (DWDM) data streams over pair of single mode optical fiber. The Mux DWDM is used with colored transceivers such as DWDM SFP, XFP, SFP+, SFP28 transceivers, it's transparent to any rate, any service multiplexing and upgrade, such applications as 1G/10G/25G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel. So it is usually flexible mix of DWDM SFP, DWDM-SFP10G-40 ( DWDM SFP 40km ), DWDM XFP and 25G DWDM SFP28 optics.

LightOptics’s industrial standard LGX module CEx portfolio of solutions meet OSP requirements of -40°C to +70°C operating temperature environments, and tested to IEC 61300-2-1, -9, -21, -22, -26 and GR-1209 requirements. LightOptics uses high quality components that ensure very high operation stability of xWDM/xPON multiplexers in the wholespectral range and perfect thermal stability.

Product Specifications
Wavelengths GPON, XGS PON, OTDR, ITU CH21-28 Connector LC/APC
Insertion Loss (Typical): DWDM 4.7db | GPON 1.4db | XGS PON 1.8db | OTDR 1.0db Application GPON, XGS PON, DWDM
DWDM Channel ITU CH21-CH28 Configuration Dual Fiber
Housing LGX Size: 130*29x118mm (5.13″x1.15″x4.646″) Technology Coexistence Element

Note: Other fiber optic connectors and DWDM wavelengths are available for customized without MOQs. Please feel free contact us.
