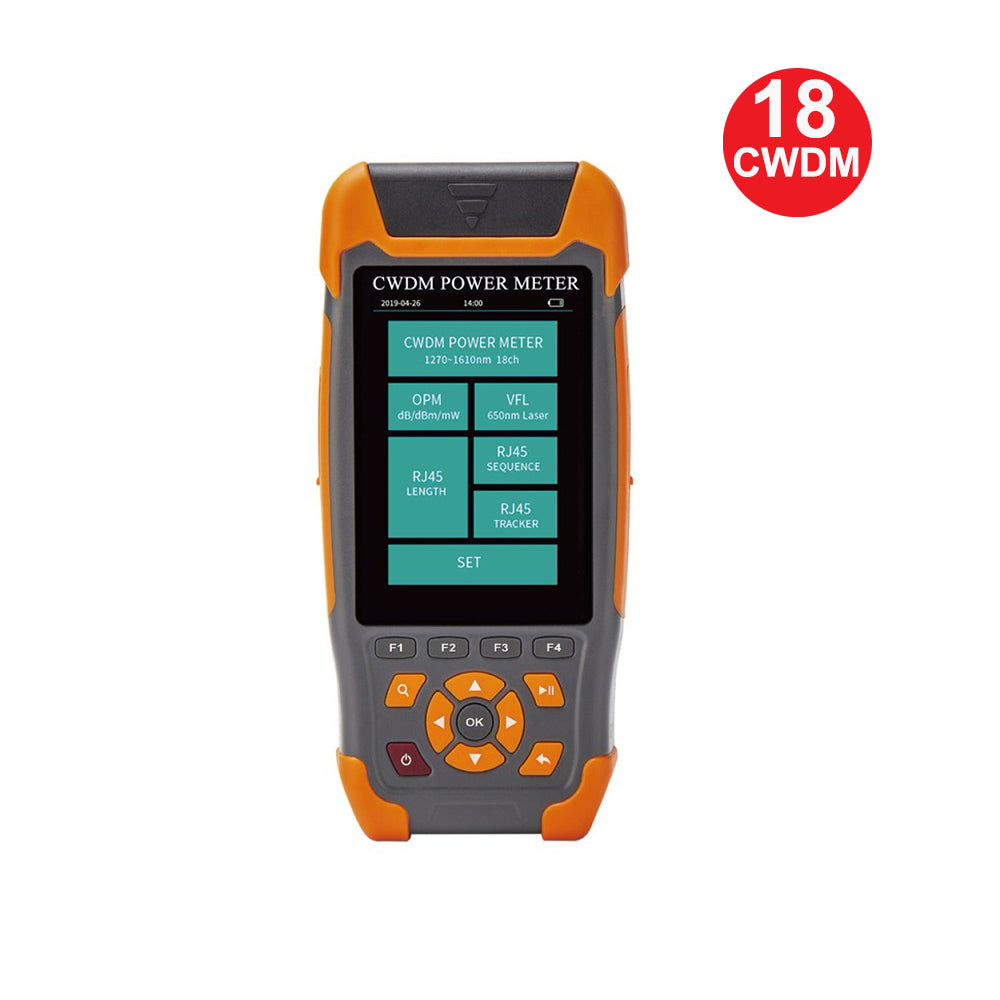

CWDM POWER METER 1270nm to 1610nm Wavelengths
This CWDM optical power meter is a CWDM optical network channel detector. It is mainly used to measure and monitor the power of 18 CWDM wavelengths.
The test power value can be displayed in column graph or list mode, and the power value of a certain channel can also be viewed separately. The handheld power meter machine adopts 3.5-inch 320*480 high-definition color LCD, small size, light weight, strong and durable. It can replace the current high-cost spectrometer for testing CWDM, which can provide fast and reliable measurement in various environments. It is specially designed and developed for the installation, acceptance and maintenance of CWDM optical network, and has become a necessary special tool for CWDM access network maintenance and installation.
Product features
- Support 18 wavelengths power test
- 3.5 inch TFT LCD,resolution 320*480
- Easy to carry and easy to operate
- Display test data in column graph or list mode
- Single channel power information can be viewed
- OPM /VFL/RJ45 sequence /cable length/cable tracked
- User define threshold and stored
- 4000mAh lithium battery & Portable battery charging
Product Specifications
| Model | CWDM Optical Power Meter | |||||||||
| Channels | 18 | |||||||||
| Wave Range | 1270~1610nm/1271~1611nm | |||||||||
| Detector type | InGaAs | |||||||||
| Fiber Type | SMF 9/125μm | |||||||||
| Connector | FC/UPC(APC optional) | |||||||||
| Power Range | -70~+10dBm | |||||||||
| Channel Spacing | 20nm | |||||||||
| Channel Band pass | 土6.5nm | |||||||||
| Power resolution | 0.01dB | |||||||||
| Power accuracy | ±0.5dB | |||||||||
| Return loss | >45dB | |||||||||
| lsolation of adjacent channels | ≥25dB | |||||||||
| Unit | mW/μW/nW/dBm/dB(REF) | |||||||||
| Data Storage | 1000 | |||||||||
| Display | 3.5inch 320*480 Color LCD screen | |||||||||
| Data Interface | Micro USB | |||||||||
| Power Supply | Polymer lithium battery:3.7V,4000mAh,Power Adapter:5VDC,2A | |||||||||
| Battery Working Time | Stand by>20h;Measuring time>12h | |||||||||
| Working Temperature | -10℃~+50℃ | |||||||||
| Storage Temperature | -40℃~+70℃ | |||||||||
| Relative Humidity | 0～95%No condensation | |||||||||
| Weight | 350g | |||||||||
| Size | 173mm×82mm×37mm | |||||||||
