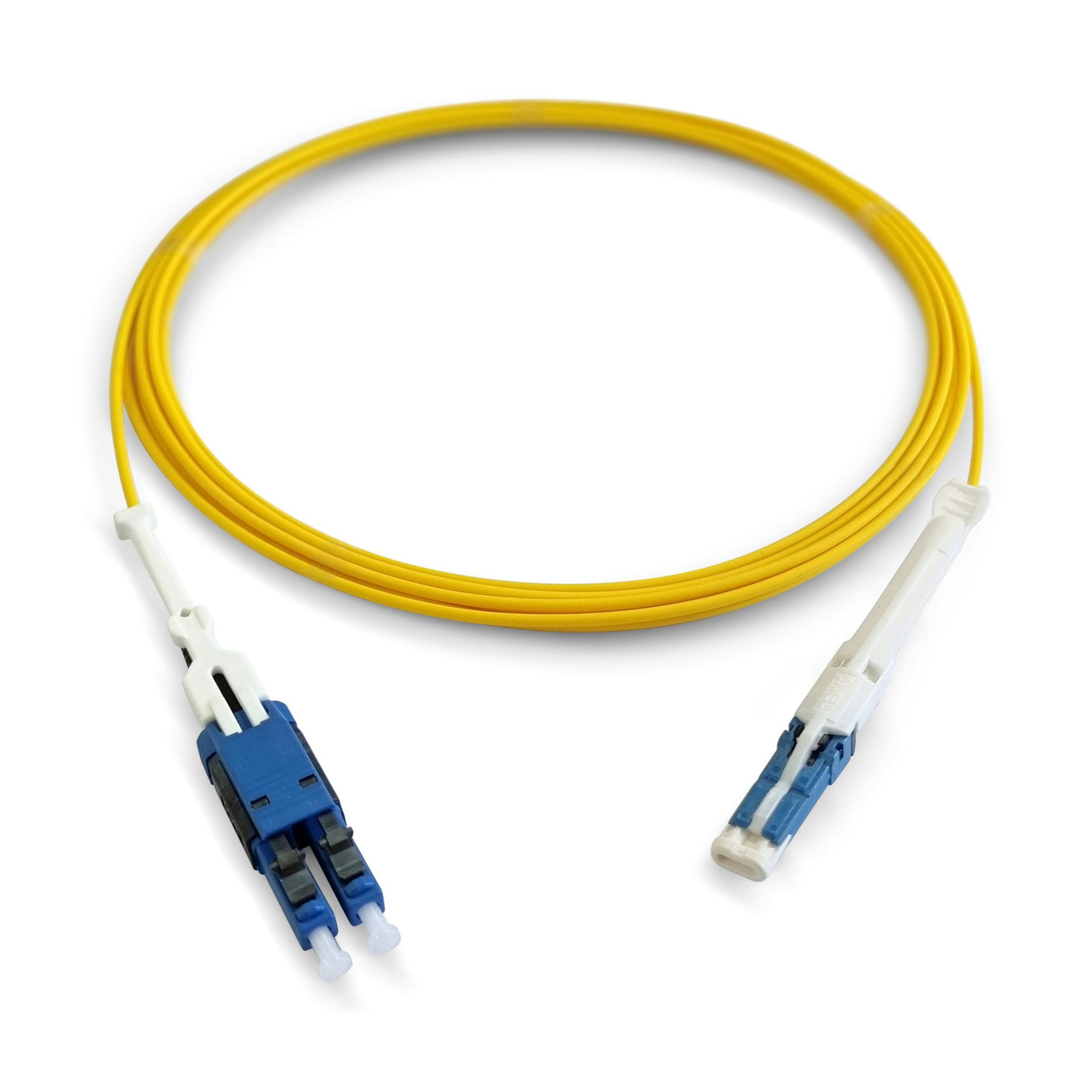

CS to LC/UPC Uniboot Duplex OS2 Single Mode LSZH 2.0mm Fiber Patch Cord, for 200/400G Network Connection

Cable Length :

CS to LC/UPC Uniboot Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Patch Cord

CS connectors are the next evolution in delivering more performance and a 40% size reduction at the same time. These compact connectors offer a 40% horizontal size reduction over LC duplex and CS connector is designed for next gen 200/400G transceiver QSFP-DD and OSFP.


  • 40% size reduction compared to LC Duplex
  • Connector adopted by QSFP-DD, OSFP and COBO
  • Performance exceeds LC
  • Push/Pull tab for a better usability in high density applications
  • for a better usability in high density applications
  • Double the density in patch panel compared to LC
  • IEC random mating Grade B

100G/200G/400G QSFP-DD with CS connector types:

QSFP28 100G PAM4 DWDM 80km
QSFP-DD 2x100G CWDM4 2km
QSFP-DD 2x100G IR4 2km
QSFP-DD 2x100G LR4 10km
QSFP-DD 2x400G FR4 2km

Product Specifications

Connector Type CS to LC Duplex Uniboot Fiber Type Singlemode G.657A1 (Compatible with G.652.D)
400G Ethernet Distance 2km with OSFP-400G-2FR4 Cable Diameter 2.0mm
Insertion Loss CS≤0.2dB, LC≤0.2dB Minimum Bend Radius 10mm
Return Loss ≥ 50dB Attenuation at 1310 nm ≤ 0.4dB/km
Polarity A (Tx) to B (Rx) Attenuation at 1550 nm ≤ 0.22dB/km
Cable Jacket PVC Operating Temperature -10~70°C
Fire Rating LSZH Storage Temperature -20 to 70°C
