96 Fibers MTP/MPO Base-8 Singlemode Breakout 1U Rack Panel BHD Series
1U 96 Fibers Singlemode QSFP 40G to SFP+ 10G BASE-8 Breakout Patch Panel (40G QSFP+ PSM4 to 10G SFP+ LR; 100G QSFP28 PSM4 to 40G QSFP+ LR4)

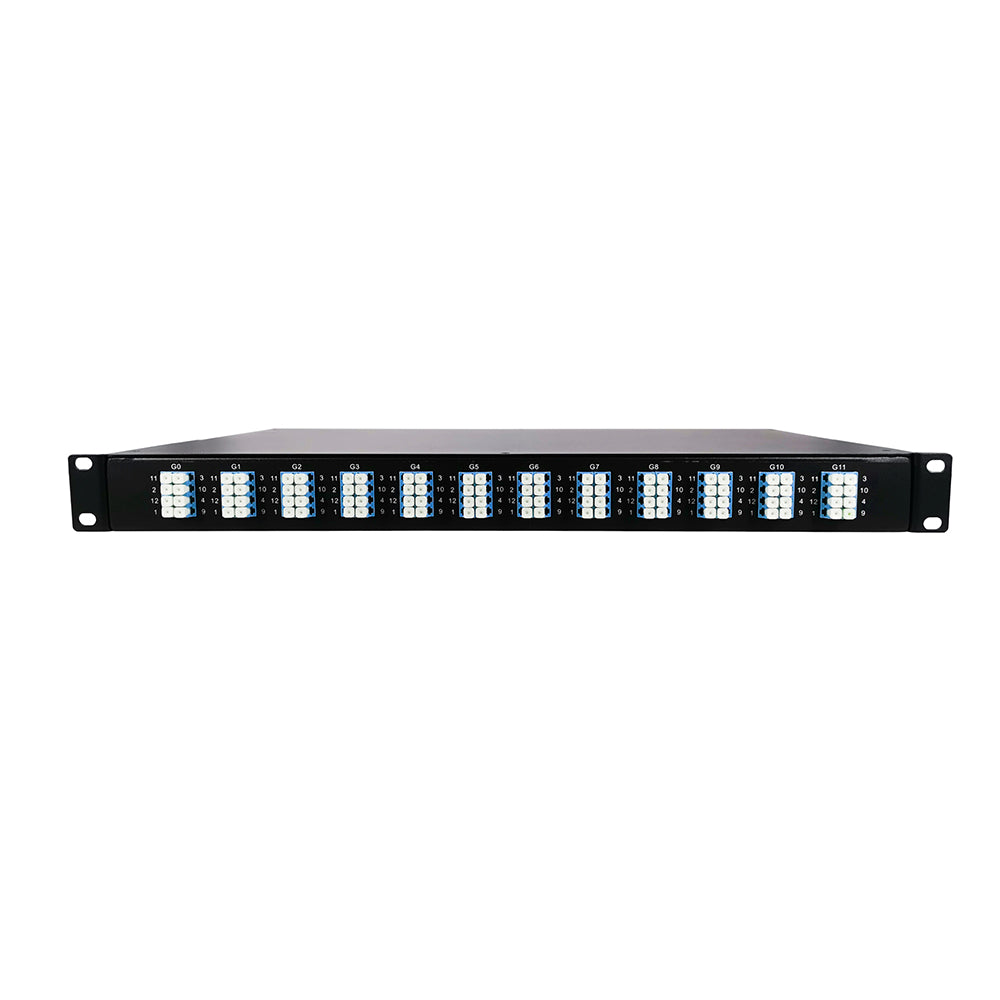

LightOptics provide High Density 96 Fibers 1U Breakout Fibre Patch Panel is designed to connect 40G/100G QSFP+/QSFP28 ports with MTP/MPO fiber cables, mapping to the back of the panel, then breaking out as 48x 10G/40G SFP+/QSFP+ on the front panel with LC fibre cables. All breakout panels meet the requirements of TIA/EIA, IEC standards.
FEATURES

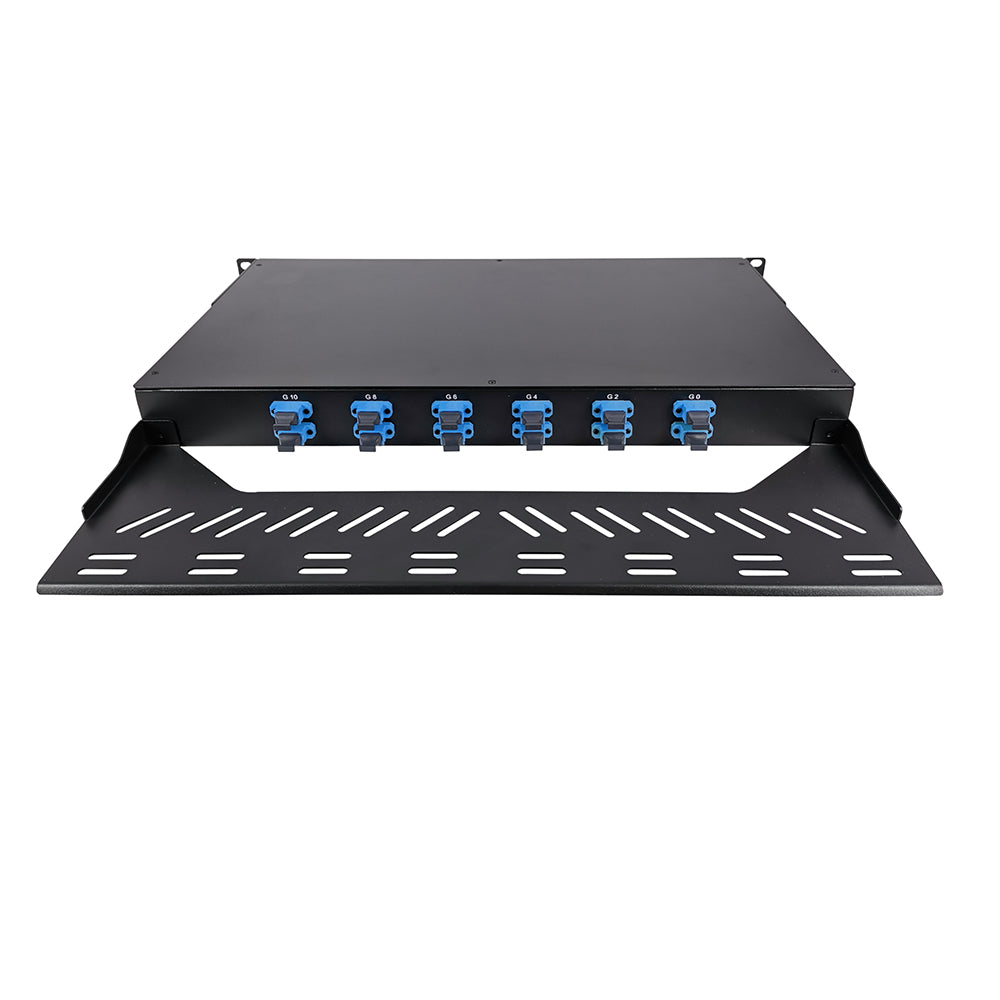

Up to 96 ports with LC and 12 ports MPO(Male) Base-8 connections on the back
Fixed panel with adjustable side brackets
Easy front and rear access
Flat 1U Rack Panel with cable management
APPLICATIONS
Datacentre & Enterprise network
Indoor application
Implementation in 40G/100G Networks
SPECIFICATIONS
Total Fiber Count | 96 Fibers | Return Loss | MTP≥60dB, LC≥50dB |
Fiber Mode | OS2 9/125µm | MTP Adapter | Key up to Key down |
Front Adapter Type | 24x LC Quad (Blue) | Dimensions (HxWxD) | 1.73"x19"x10.3" (44x482x261.2mm) |
Rear Adapter Type | 12x US Conec MTP-8 Male (Pinned) | Operating Temperature | -20~+60°C |
Insertion Loss | MTP≤0.35dB, LC≤0.2dB | Storage Temperature | -40~+70°C |
