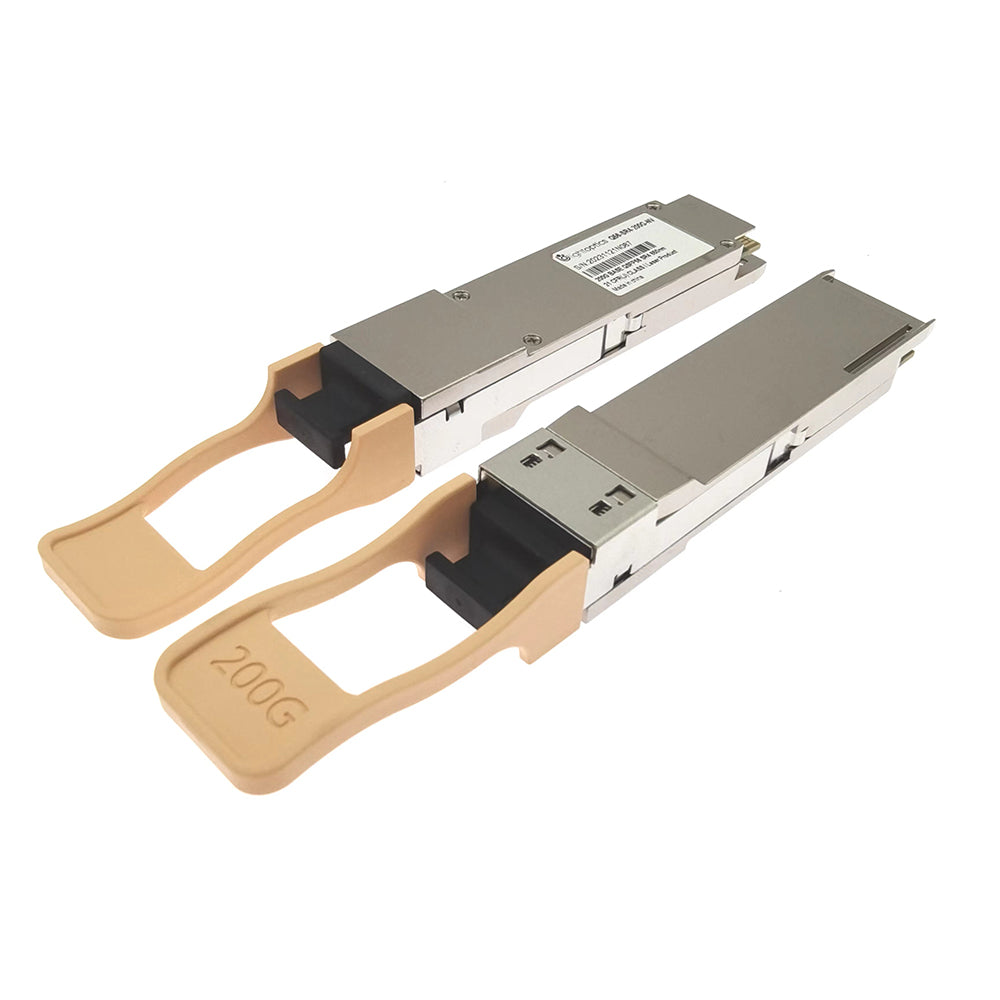

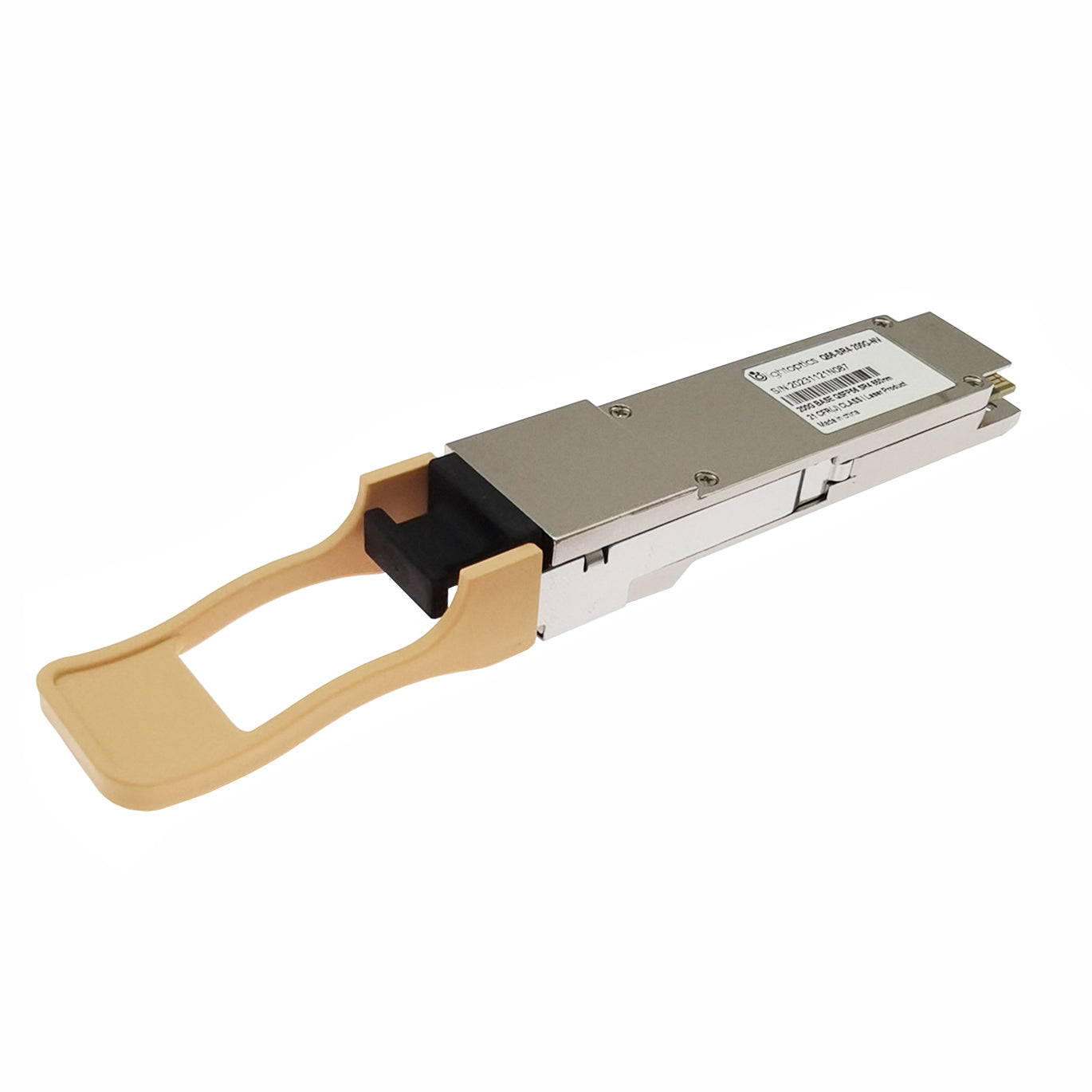

Arista QSFP-200G-SR4 Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12 MMF Optical Transceiver Module


Arista QSFP-200G-SR4 Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12 MMF Optical Transceiver Module

This QSFP56 transceiver can achieve 200GBase-SR4 fibre channel throughput up to 100m over a multi-mode fiber (MMF) using a wavelength of 850nm via an MPO connector.This 200G transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, CMIS Rev 4.0 & SFF-8665 standards. Digital diagnostics functions are available via the I2C interface. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.

Product Features

  • Built-in Inphi Chip, Max. Power Consumption 5W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Hot Pluggable QSFP56 Form Factor
  • High-speed Electrical Compliant to IEEE 802.3bs
  • Compliant with QSFP56 MSA CMIS V4.0
  • 4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
  • Class 1 FDA Laser Safety

Product Specifications

Arista Compatible QSFP-200G-SR4 Vendor Name LightOptics®
Form Factor QSFP56 Max Data Rate 212.5Gbps
Wavelength 850nm Max Distance 70m on OM3/100m on OM4
Modulation Format PAM4 Host Required FEC
Connector MPO-12/UPC Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
TX Power -6.5~+4.0dBm Receiver Sensitivity < -8.4dBm
Operation Temperature 0 to 70°C (32 to 158°F) Maximum Power < 5W
Protocols QSFP56 MSA, IEEE 802.3bs Application 200G Ethernet, Data Center Interconnect
