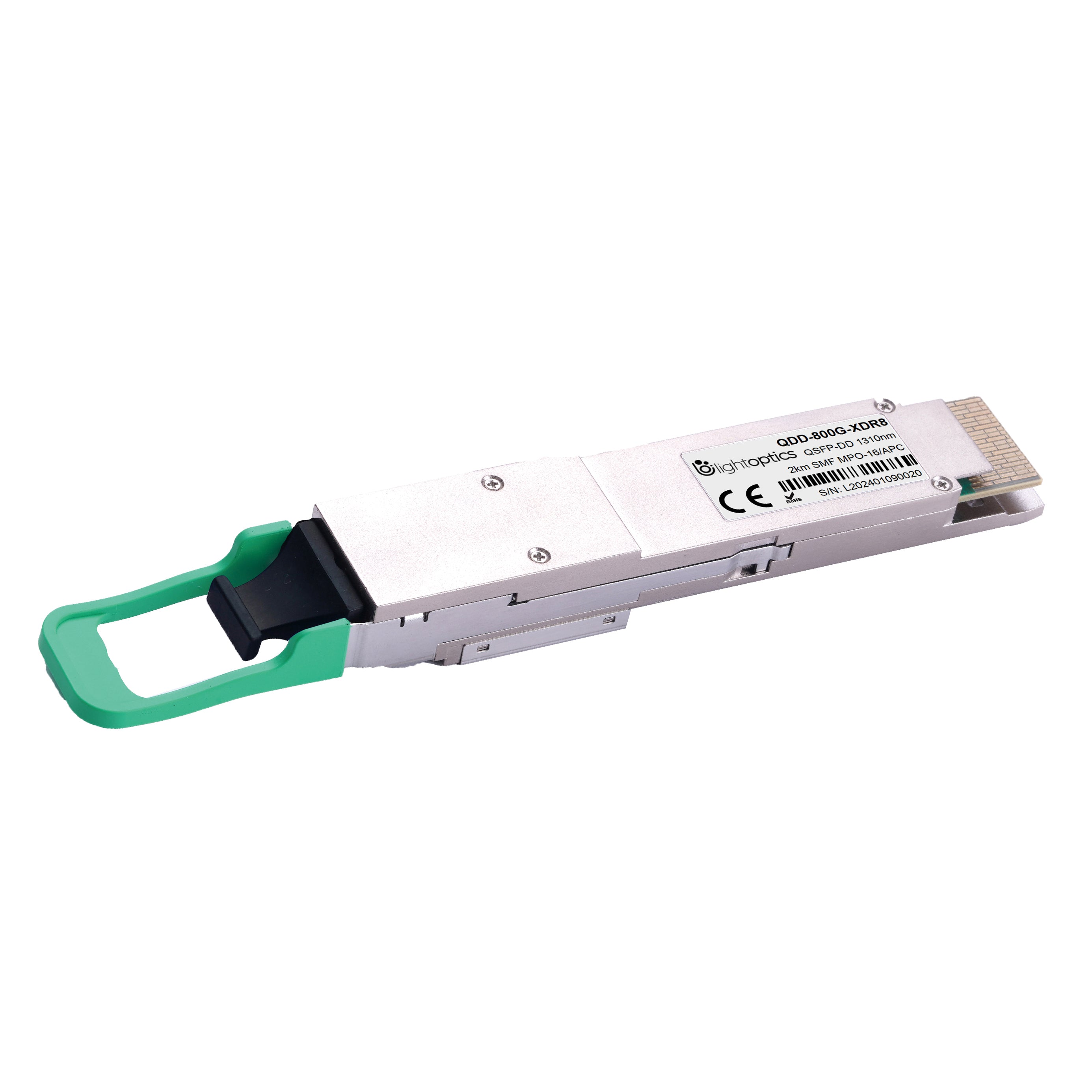

800GBASE-XDR8 QSFP-DD PAM4 1310nm 2km DOM MTP/MPO-16 SMF Optical Transceiver Module


QSFP-DD 800GBASE-XDR8 PAM4 1310nm 2km DOM MTP/MPO-16 SMF Optical Transceiver Module

This QSFP-DD 800G-XDR8 transceiver supports up to 2km link lengths over single-mode fiber (SMF) via MTP/MPO-16 APC connectors. This transceiver is compliant with lEEE802.3ck, IEEE 802.3cu, QSFP-DD MSA and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G XDR4 or 8x 100G FR Application.

Product Specification

Part Number QDD-800G-XDR8 Vendor Name LightOptics®
Form Factor QSFP-DD Max Data Rate 850Gbps (8x 106.25Gbps)
Wavelength 1310nm Max Distance 2km
Modulation Format PAM4 Host Required FEC
Connector MTP/MPO-16 APC
Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type EML Receiver Type PIN
TX Power -3.1~4dBm Receiver Sensitivity <-7.1dBm
Operation Temperature 0 to 70°C (32 to 158°F) Maximum Power < 18W
Protocols CMIS Rev 5.0, lEEE802.3ck, IEEE 802.3cu, QSFP-DD MSA Application 800G Ethernet, Data Center Interconnect, Infiniband Interconnects
