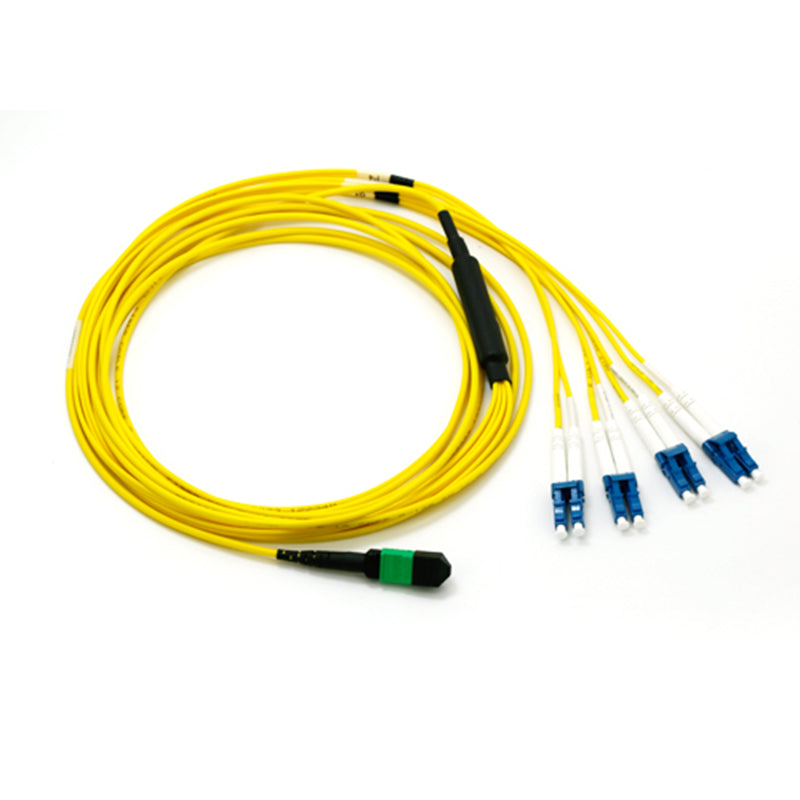

8 Fibers MTP/MPO to 4x LC Duplex Singlemode Breakout Cable

Length :
Polarity :

MTP/MPO to LC breakout cables are available in two types: 8 fibre cables which are used in the transmission of 40G or 100G via PSM4 (PIR4 or PLR4) and 12 fibre cables which are used in 10G/25G duplex networking.
This MTP to LC breakout cable is an 8 fibre cable with a polarity Type-B that enables one QSFP+ transceiver (or QSFP28 transceiver) to be connected to either 4 x SFP+ transceivers (SFP28) or four LC ports within patch panels or MTP cassettes.
Each MTP to LC breakout cable is fully tested and made with ruggedised LC patch cord style 2mm tails which are held by a hard plastic breakout unit.
QSFP+ transceivers which support 40GBASE PSM4 have ports with a male connection. These require an MTP to LC breakout cable with a female MTP connector.

Please note: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors. For 8 Fibers Breakout cable, Polarity B is standard, Polarity A and C are available on request.

Typical Application:

  • 40G QSFP+ PLR4 to 10G SFP+ LR
  • 400G OSFP/QSFP-DD DR4 to 100G QSFP DR
  • 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR
Product Specifications

Connector A MTP Female (pinless) Connector B 4x LC/UPC Duplex
Fiber Mode  8 fibers OS2 9/125 μm Wavelength 1310/1550 nm
Polish Type (MTP) APC Polish Type (LC) UPC
Minimum Bend Radius 7.5 mm RoHS Compliancy Status Compliant
Insertion Loss (LC) ≤ 0.2 dB Return Loss (LC) ≥ 30 dB
Insertion Loss (MTP) 0.35 dB Max. (0.15 dB Typ.) Return Loss (MTP) ≥ 20 dB
Attenuation at 1310 nm ≤ 0.32 dB/km Attenuation at 1550 nm ≤ 0.18 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long/Short Term Tensile Load 80 N/240N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
