8 Fibers MTP to 4x LC duplex Multimode OM3 Fiber Breakout Cable

Length :
Polarity :

The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic cable manufacturer, we provide complete MTP/MPO to LC fanout optic cabling solutions for high-density optical connectivity in the modern data center.

MPO stands for Multi-Fiber Push On. MTP is a registered trademark of an MPO connector manufactured by US Conec.  Please note: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

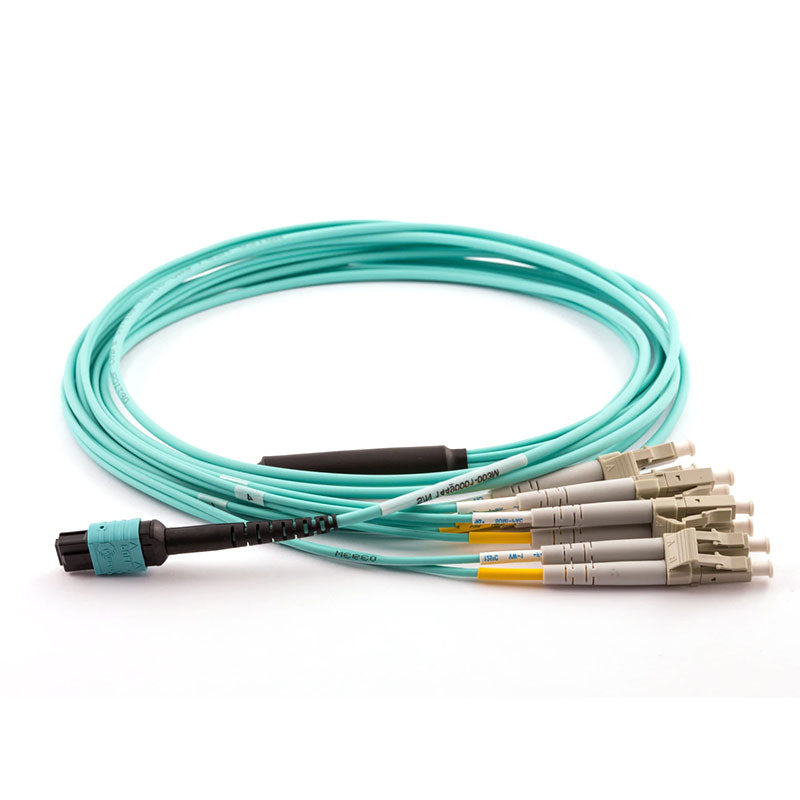

This 8 Fibers MTP/MPO to 4x LC Duplex Breakout Cable is factory pre-terminated 50/125 Multimode OM3 fiber optic harness cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management.

The OM3 fiber optic harness cable conforms to Polarity Type B (Rollover), also called as Cross-Connect or Cross-over, and suitable for use in 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP28 SR4 to 25G SFP28 SR optics direct connection applications.

Typical Application:

  • 40G QSFP+ SR4 to 10G SFP+ SR
  • 100G QSFP28 SR4 to 25G SFP28 SR
Product Specifications

Connector A MTP Female (pinless) Connector B 4x LC/UPC Duplex
Fiber Mode  8 fibers OM3 50/125 μm Wavelength 850/1300 nm
Polish Type (MTP) APC Polish Type (LC) UPC
Minimum Bend Radius 7.5 mm RoHS Compliancy Status Compliant
Insertion Loss (LC) ≤ 0.2 dB Return Loss (LC) ≥ 30 dB
Insertion Loss (MTP) 0.35 dB Max. (0.15 dB Typ.) Return Loss (MTP) ≥ 20 dB
Attenuation at 850 nm ≤ 2.3 dB/km Attenuation at 1300 nm ≤ 0.6 dB/km
Jacket OD 3.0 mm Cable Jacket LSZH
Installation Tensile Load 66 N Long/Short Term Tensile Load 80 N/240N
Storage Temperature -40°C to 85°C Operating Temperature -10°C to 70°C
